Ride Height

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Front Ride Height Measurement

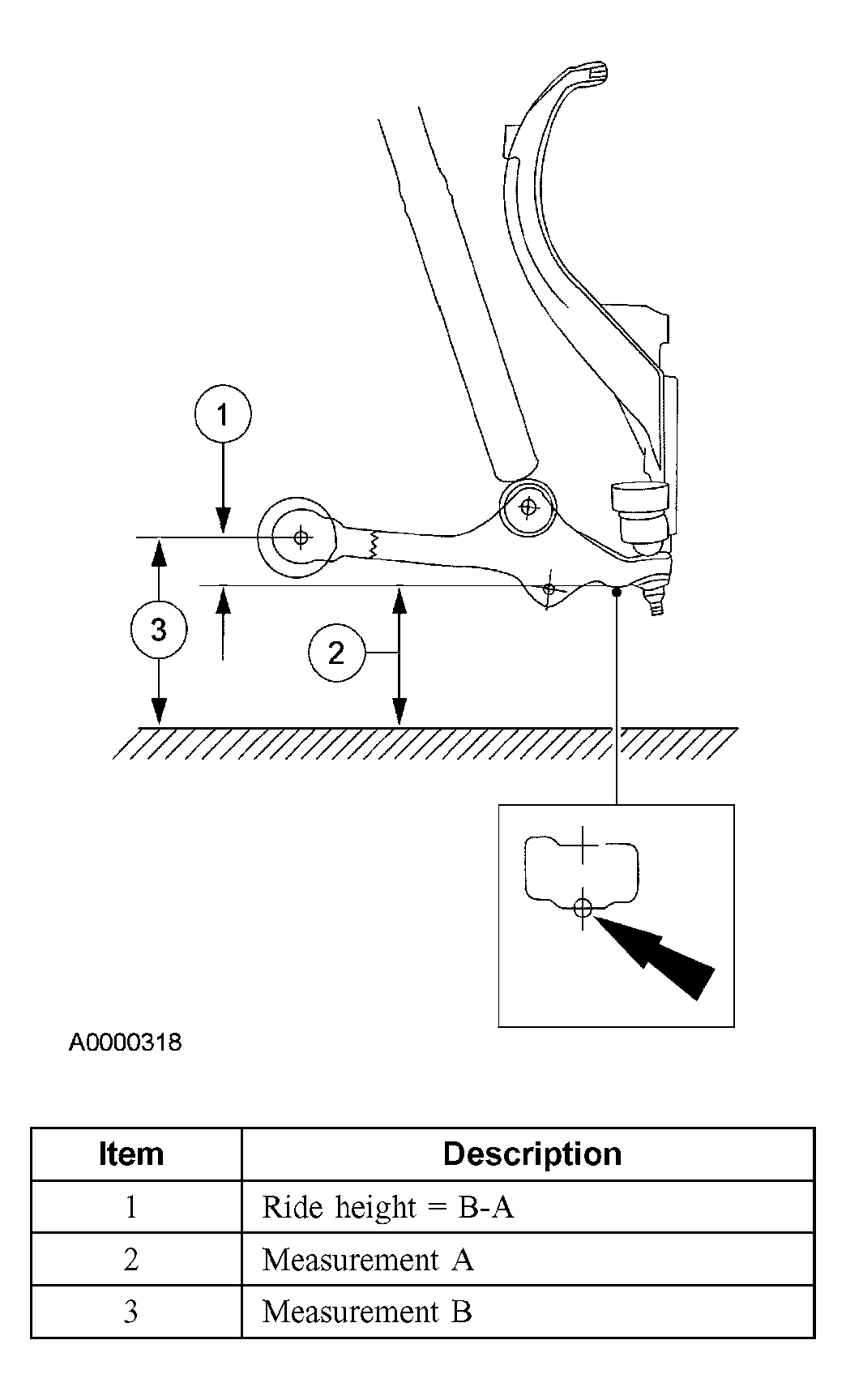

Fig 1: Identifying Ride Height Measurement Points
G03995004Courtesy of FORD MOTOR CO.

Rear Ride Height Measurement

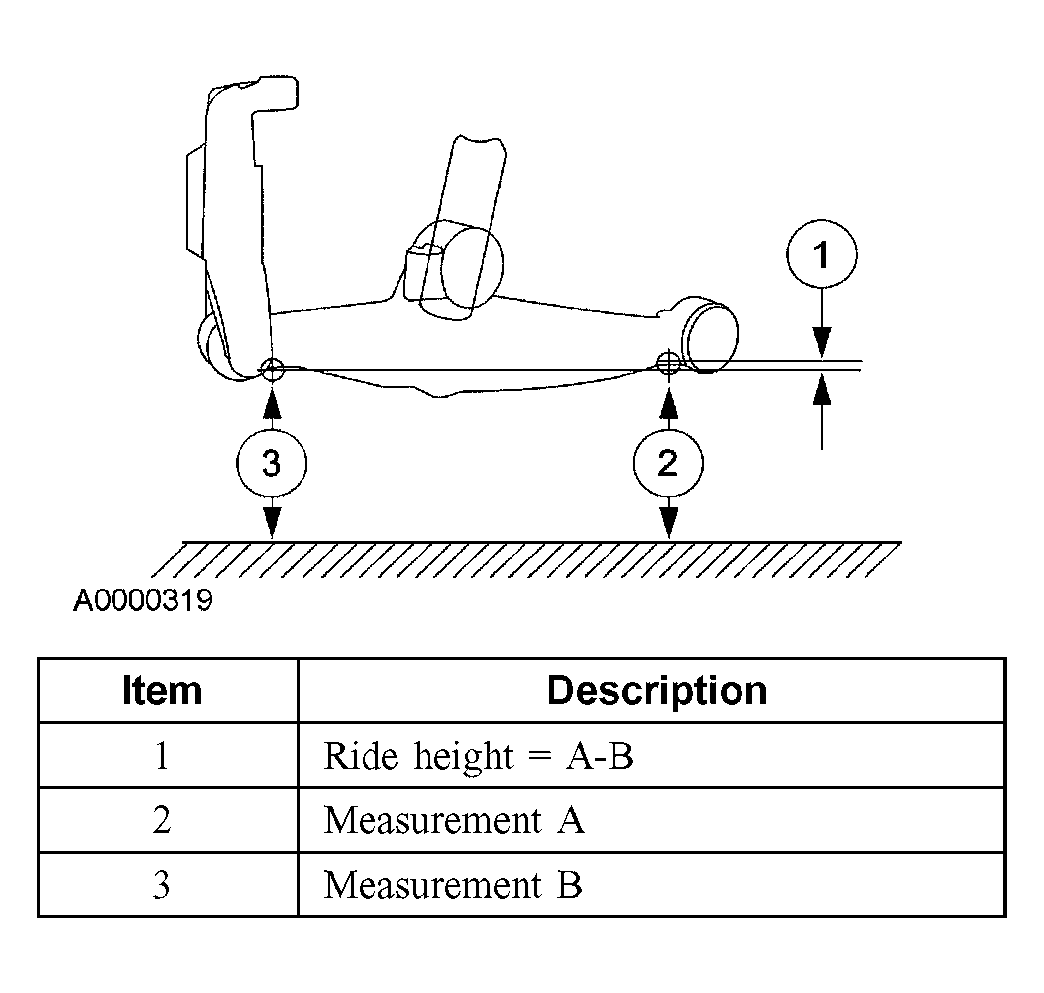

Fig 2: Identifying Rear Ride Height Measurement Points
G03995005Courtesy of FORD MOTOR CO.
