Glossary of Terms: Radial/Lateral

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Radial is in the plane of rotation; lateral is at 90 degrees to the plane of rotation.

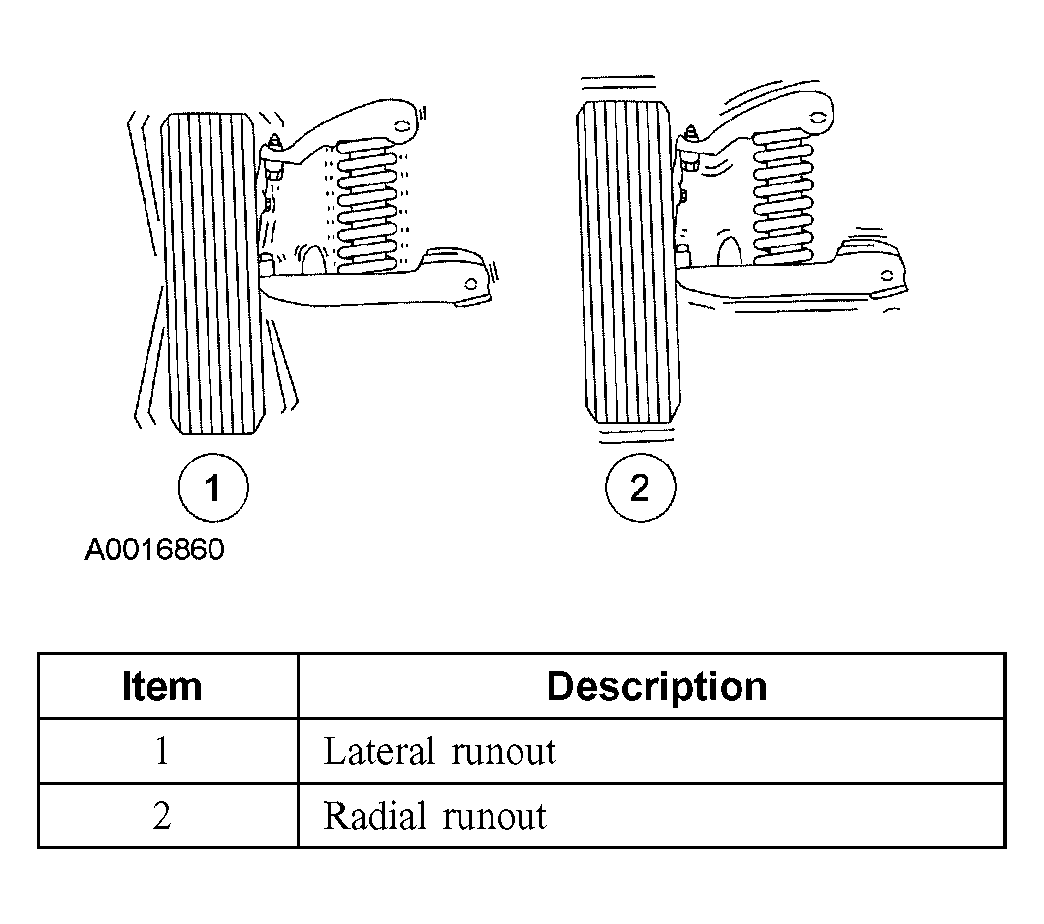

Fig 1: Identifying Radial/Lateral Runout
G03994974Courtesy of FORD MOTOR CO.
