Noise, Vibration and Harshness (NVH): Notes
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION

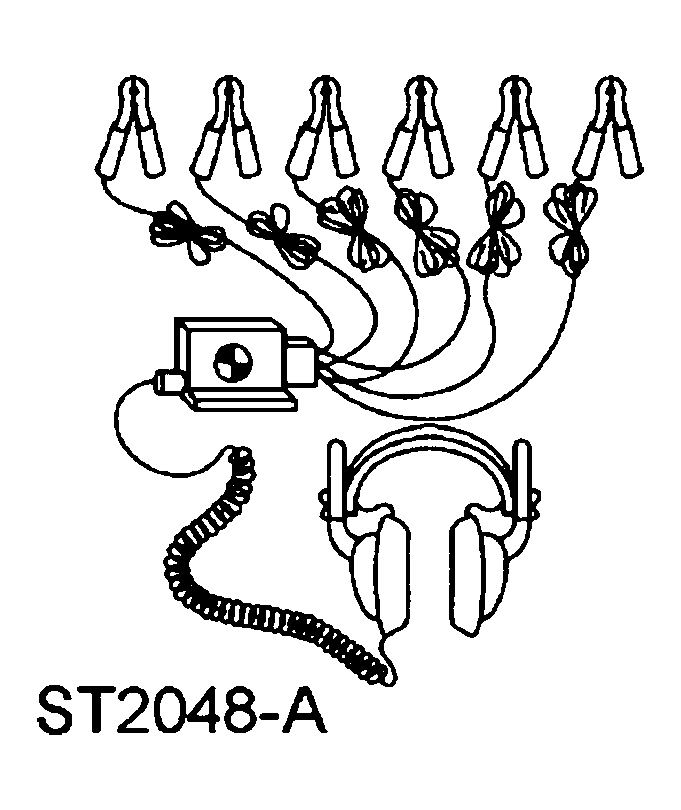

| EngineEAR/ChassisEAR 107-R2102 or equivalent | |

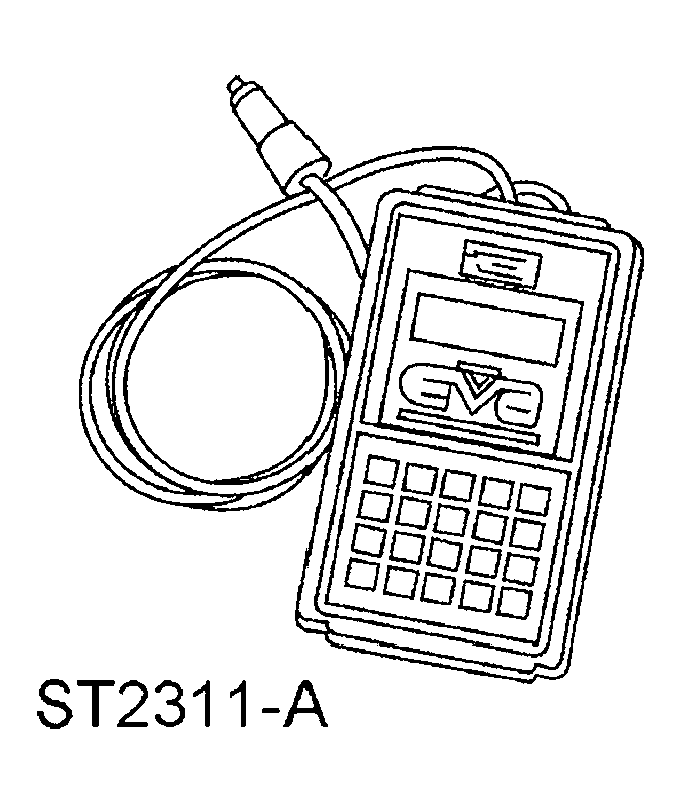

| Electronic Vibration Analyzer 100-F027 (014-00344) or equivalent | |
| EngineEAR 107-R2100 or equivalent | |
| Ultrasonic Leak Detector 134-R0135 or equivalent |

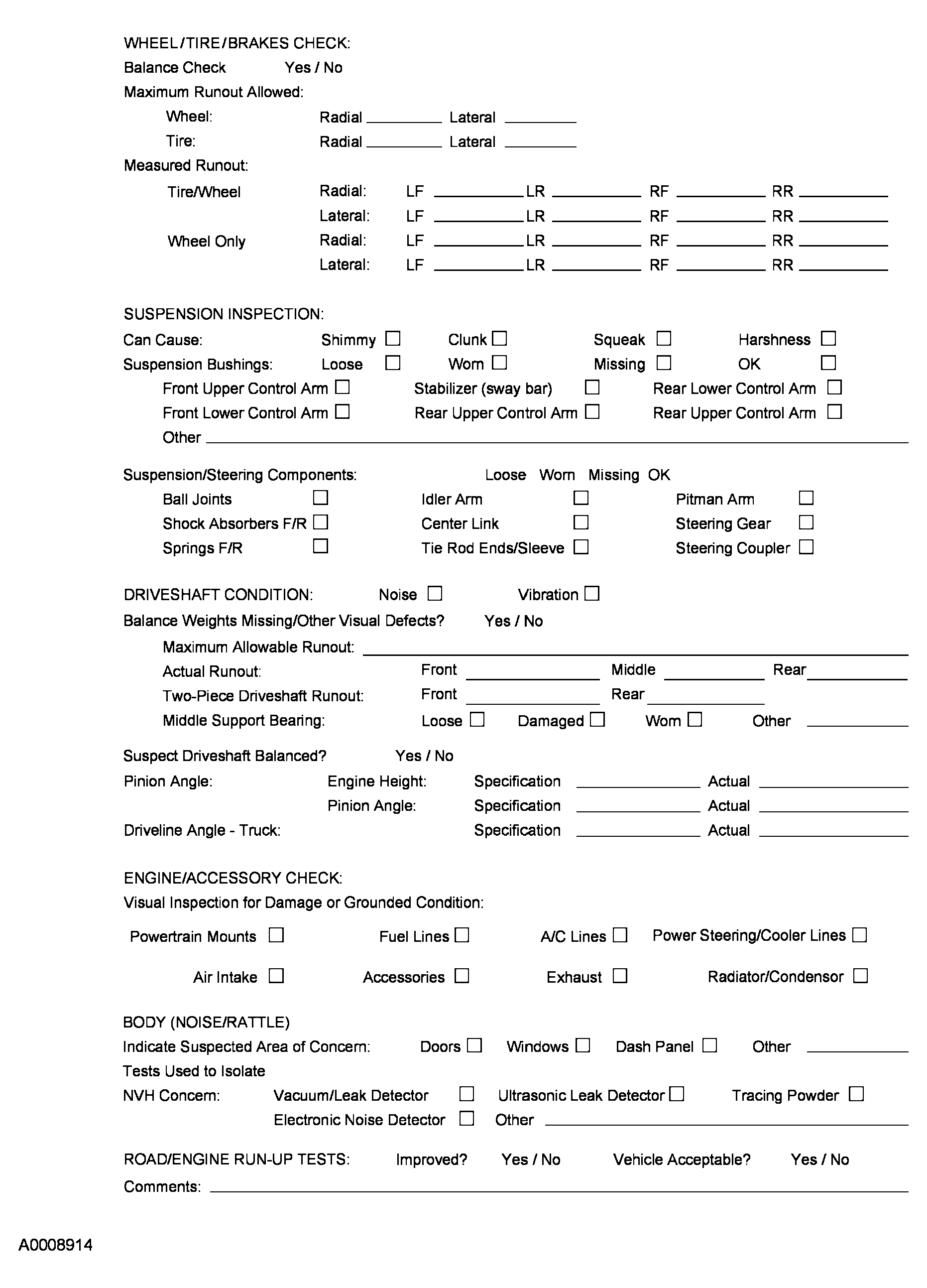

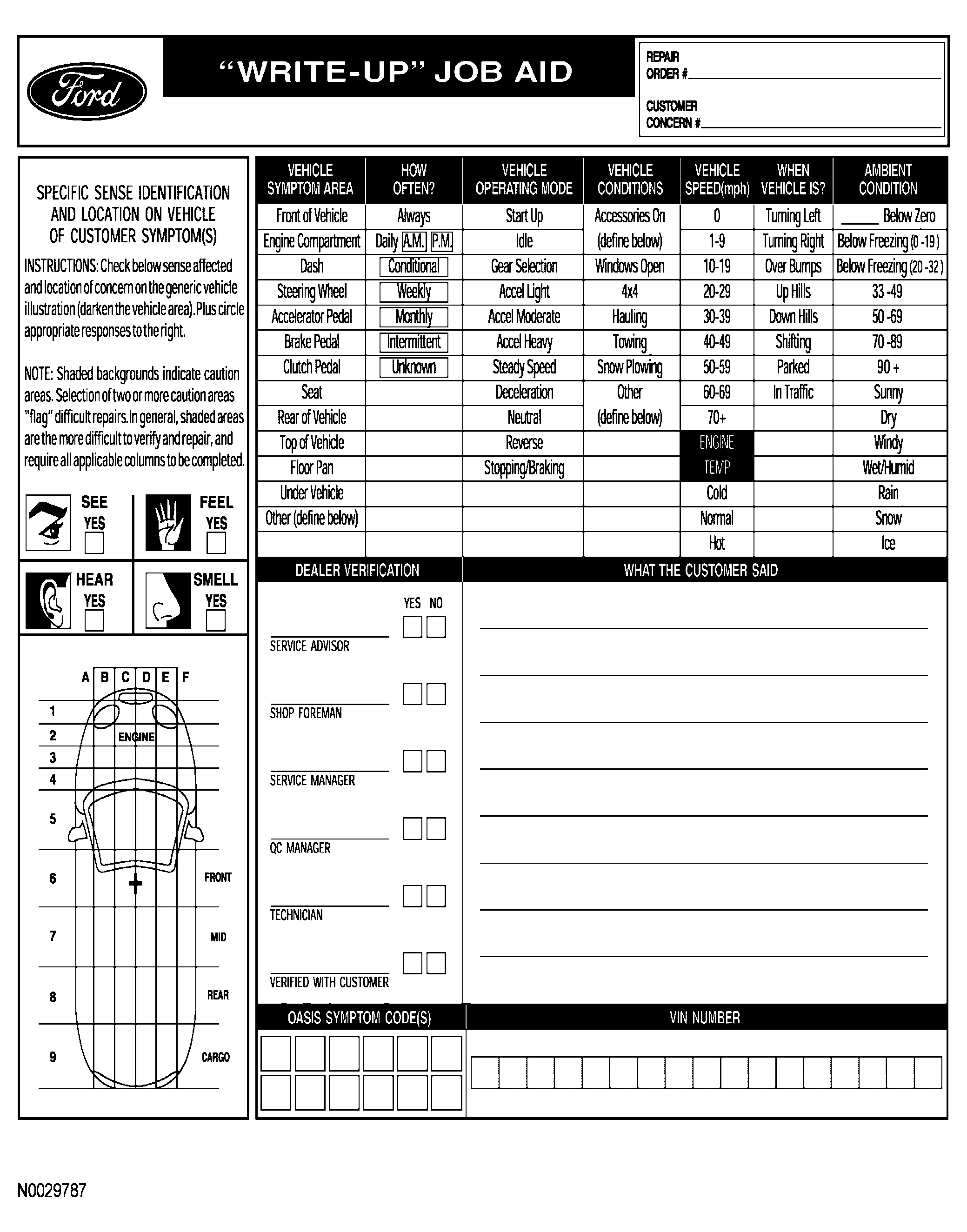

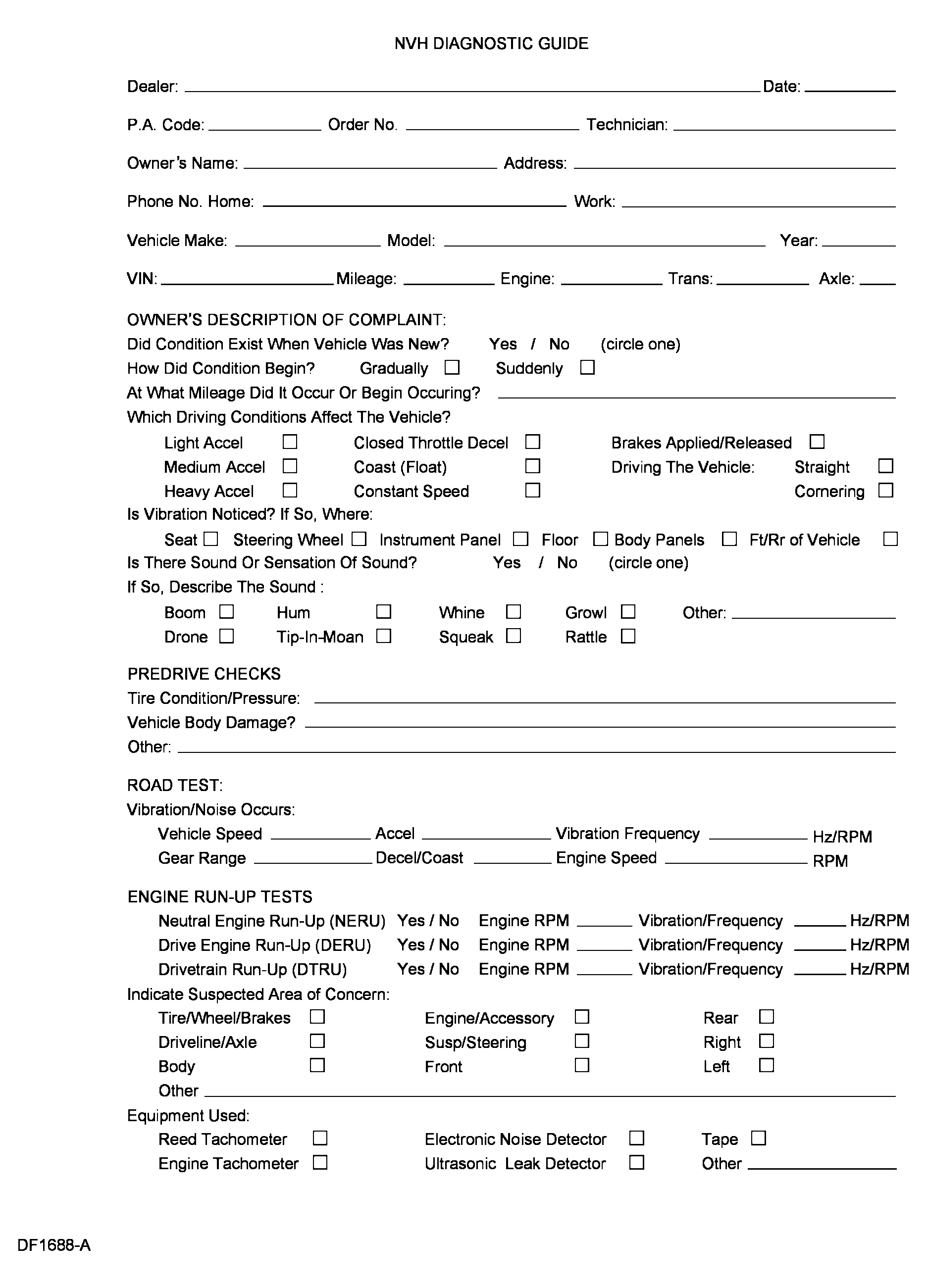

To assist the service advisor and the technician, a Write-up Job Aid and an NVH Diagnostic Guide are included with this material. The Write-up Job Aid serves as a place to record all important symptom information. The NVH Diagnostic Guide serves as a place to record information reported on the Write-up Job Aid as well as data from the testing to be carried out.
To begin a successful diagnosis, fill out the NVH Diagnostic Guide, record the reported findings, then proceed to each of the numbered process steps to complete the diagnosis.
