Wheel Studs - E550: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES article .
  2. Using the special tool, remove the wheel bolt from the wheel adapter and discard.

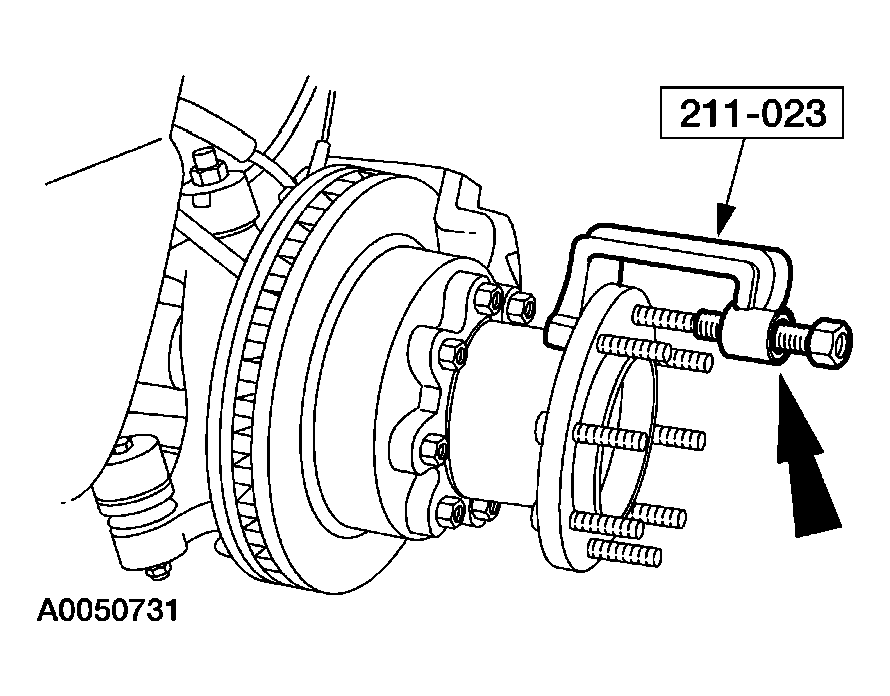

    Fig 1: Removing Wheel Bolt From Wheel Adapter
    G04025769Courtesy of FORD MOTOR CO.
