Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle. Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES article .
Disconnect the wheel speed sensor electrical connector.

Fig 1: Disconnecting Wheel Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Detach the sensor harness from the brake hose.

Fig 2: Detaching Sensor Harness From Brake Hose
Courtesy of FORD MOTOR CO.

CAUTION: Do not allow the brake caliper to hang from the brake hose or damage to the hose can result.

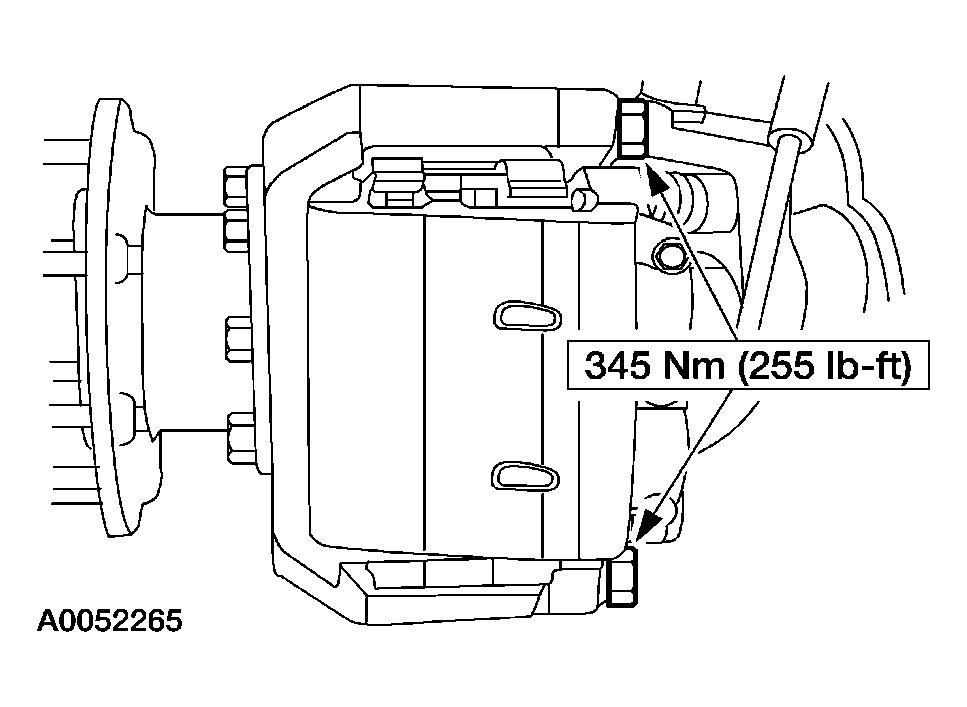

Fig 3: Removing Brake Caliper Bolts

Courtesy of FORD MOTOR CO.

Remove the bolts and position the caliper, pads and anchor plate aside.
Remove the eight nuts, the hub extender and the brake disc.

Fig 4: Removing Hub Extender And Brake Disc
Courtesy of FORD MOTOR CO.
Remove the nuts, and the hub and bearing.

Fig 5: Removing Hub And Bearing
Courtesy of FORD MOTOR CO.
If necessary, remove the bolt and the sensor.

Fig 6: Removing Sensor
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that the wheel hub and brake disc mounting surfaces are clean.

To install, reverse the removal procedure.
