Exterior rear view mirror switch (17B676): Schematic

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

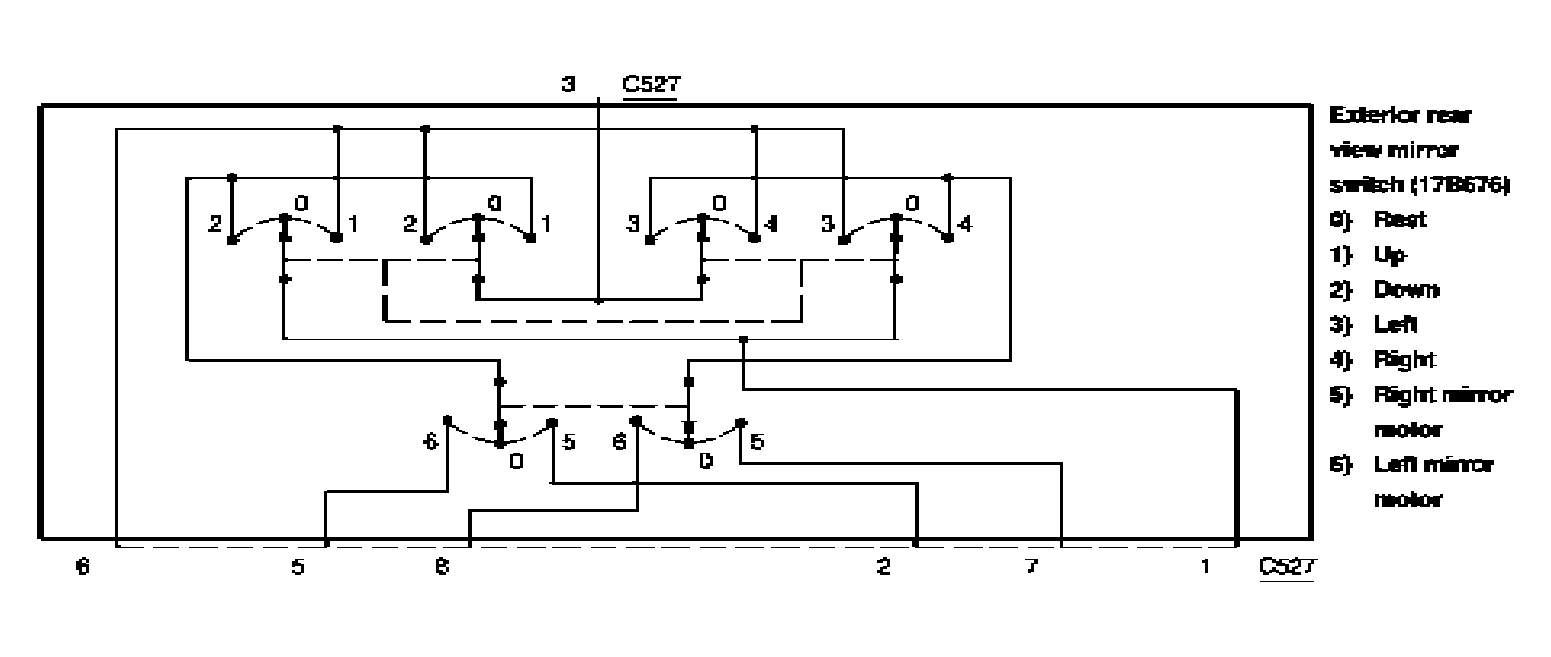

Fig 1: Exterior Rear View Mirror Switch (17B676) - Schematic
G04000146Courtesy of FORD MOTOR CO.
