Differential Pressure Feedback EGR Sensor (Remote Mounted)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2003 Mercury Sable, 2003 Mercury Mountaineer, 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

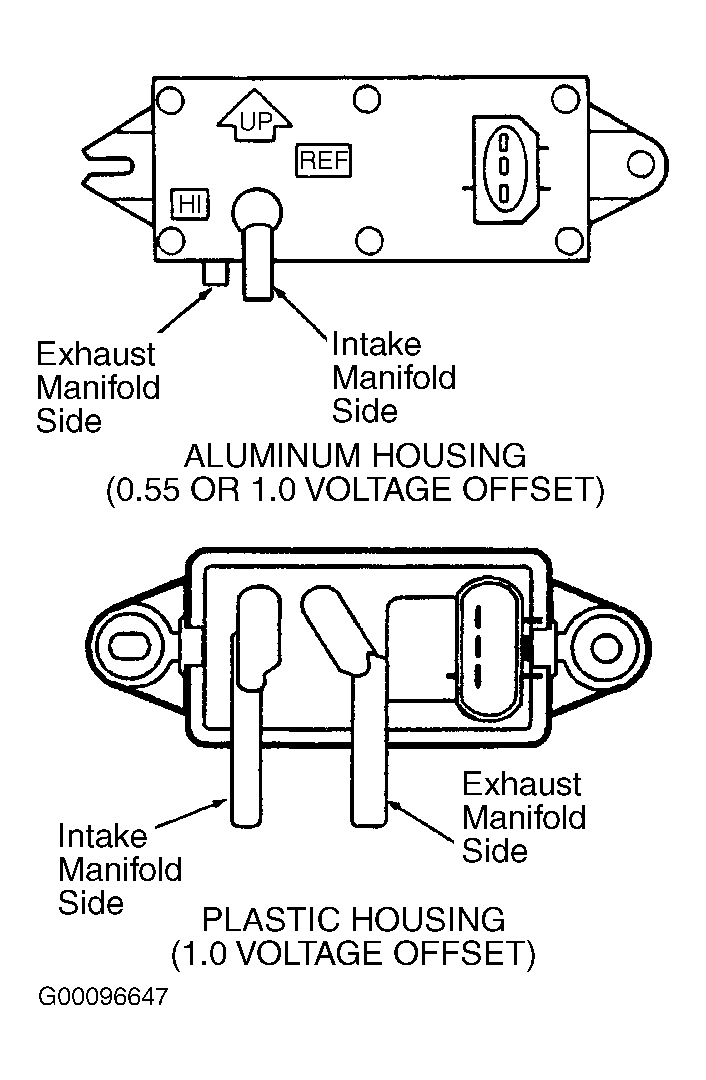

Differential Pressure Feedback (DPFE) EGR sensor is a ceramic, capacitive type pressure transducer that monitors differential pressure across a metering orifice located in orifice tube assembly. DPFE EGR sensor receives this signal through 2 hoses referred to as downstream pressure hose (REF), and upstream pressure hose (HI). HI and REF hose connections are marked on aluminum DPFE EGR sensor housing for identification. Note that HI uses a larger diameter hose. DPFE EGR sensor outputs a voltage proportional to pressure drop across metering orifice and supplies it to PCM as EGR flow rate feedback. See Fig 1.
