Seat - Exploded View, 40 Percent of 60/40 Bench, Second Row

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

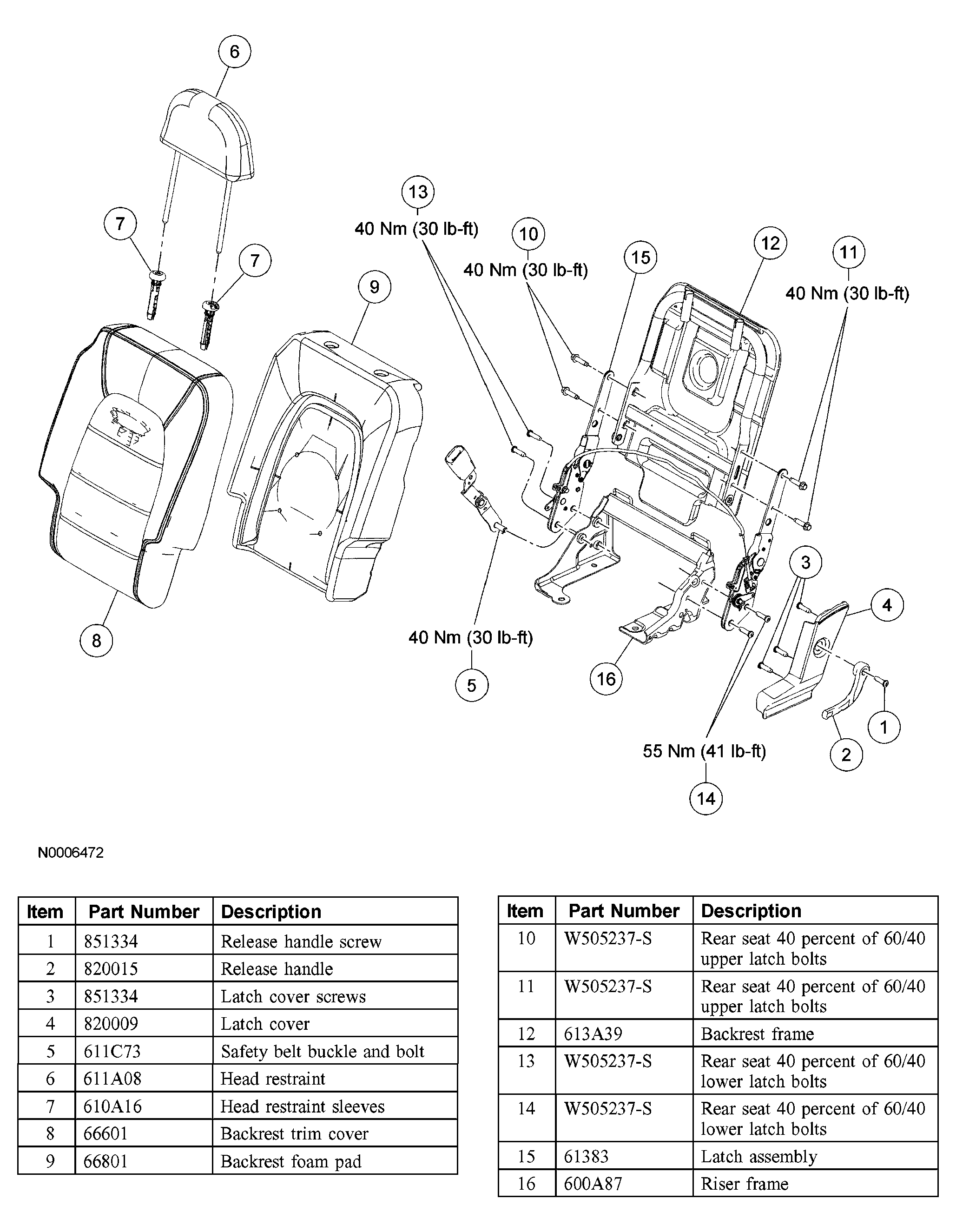

Fig 1: Exploded View Of Seat - 40 Percent Of 60/40 Bench, Second Row - Backrest

Courtesy of FORD MOTOR CO.

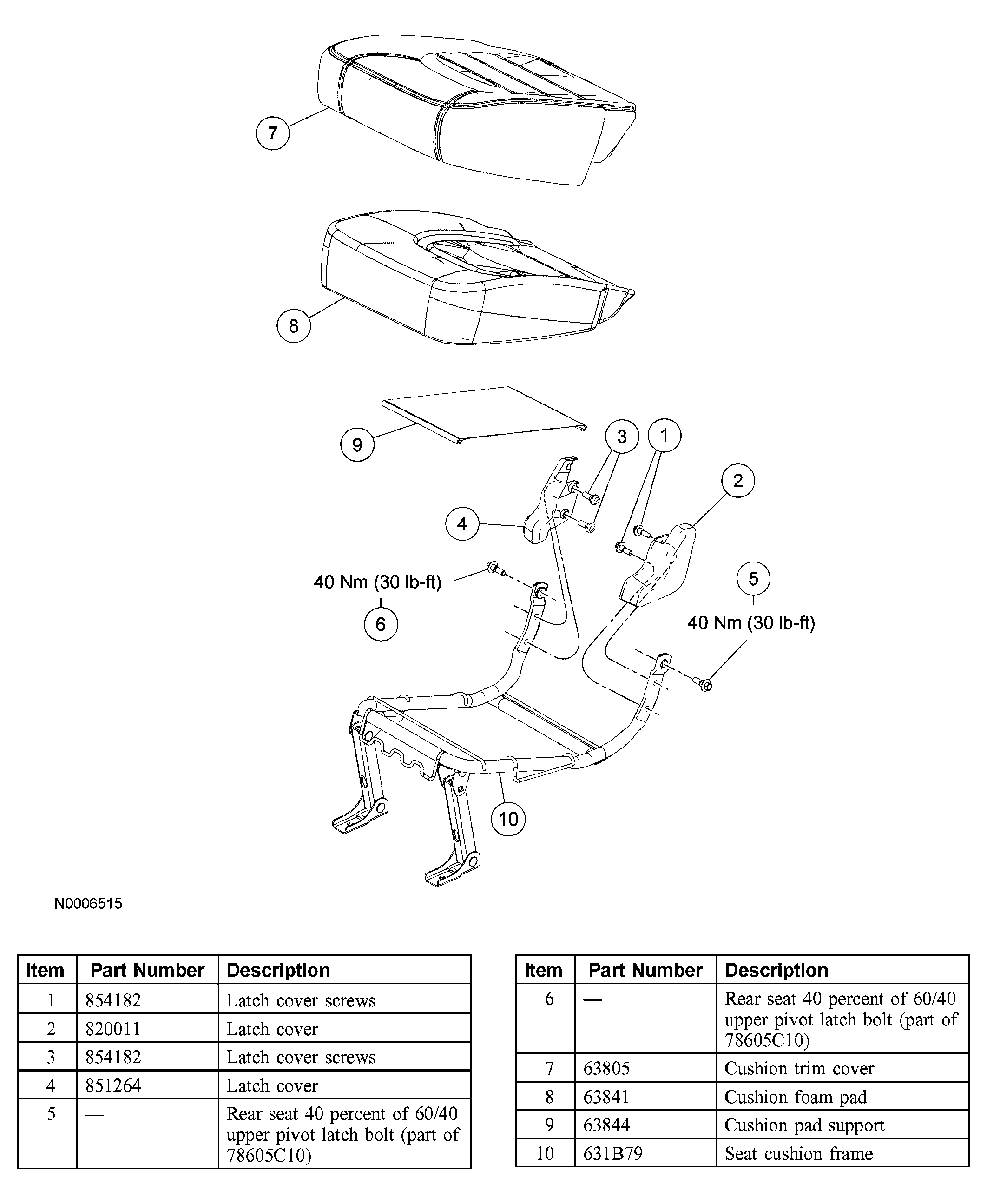

Fig 2: Exploded View Of Seat - 40 Percent Of 60/40 Bench, Second Row - Cushion

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
