Rear Seat Backrest - 60 Percent of 60/40 Bench, Second Row: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

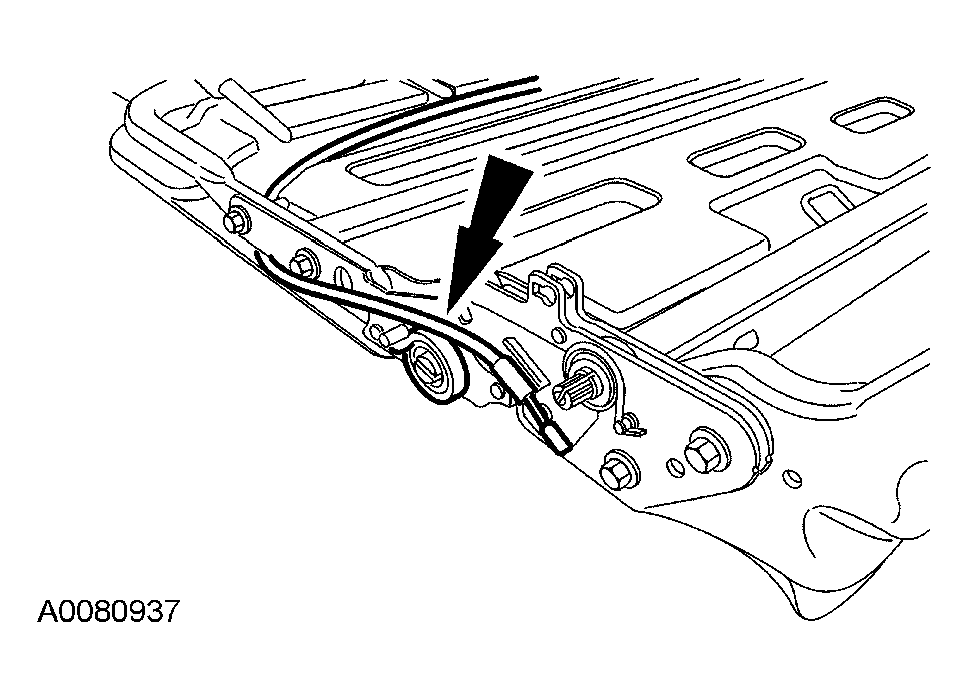

Position the backrest to the latch. The cable is to be routed in front of the spring.

Fig 1: Positioning Backrest To Latch
Courtesy of FORD MOTOR CO.

CAUTION: The cable is to move freely after assembly.

Fig 2: Supporting Backrest

Courtesy of FORD MOTOR CO.

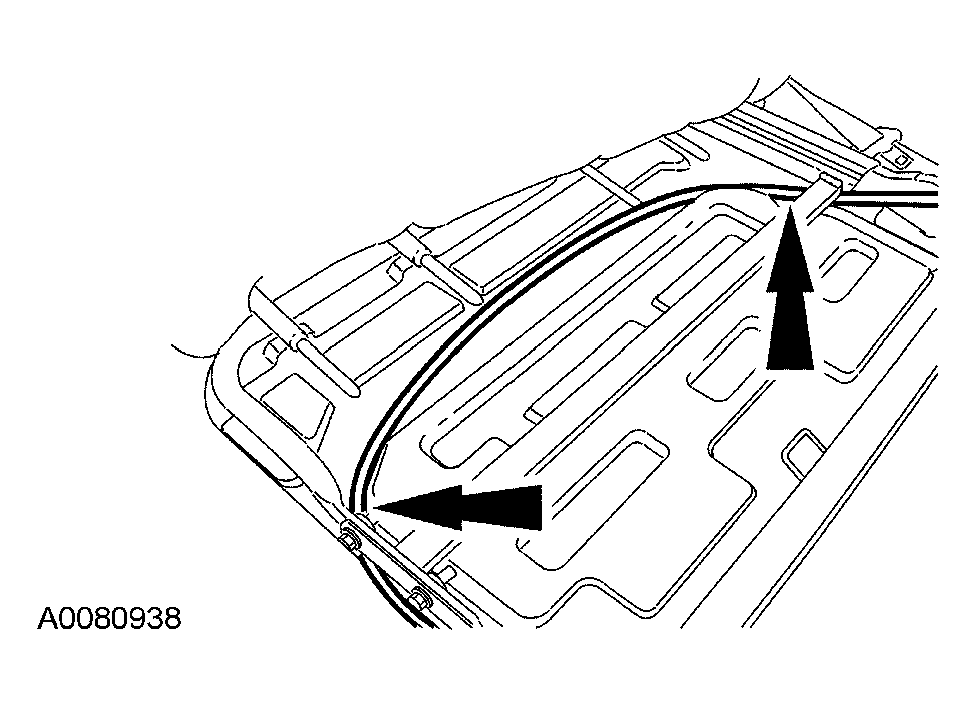

The cable is to pass between the backrest frame and the backrest support at the 2 points shown.
Install the 4 backrest pivot bolts (inboard side shown, outboard side similar).
- Tighten to 40 Nm (30 lb-ft).

  Fig 3: Installing Backrest Pivot Bolts
  Courtesy of FORD MOTOR CO.
Position the 2 covers and install the 4 screws (outboard shown, inboard similar). Attach the material attachments to both of the latch covers.

Fig 4: Installing Screws
Courtesy of FORD MOTOR CO.
Roll the seat backrest trim cover and foam pad back down into position.
Position the trim cover and install staples in the backrest support panel.

Fig 5: Locating Staples At Backrest Support Panel
Courtesy of FORD MOTOR CO.
Attach the seat backrest J-clip.
Position the safety belt anchor and install the bolt.
- Tighten to 55 Nm (41 lb-ft).
