Rear Seat - 20 Percent, Second Row

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

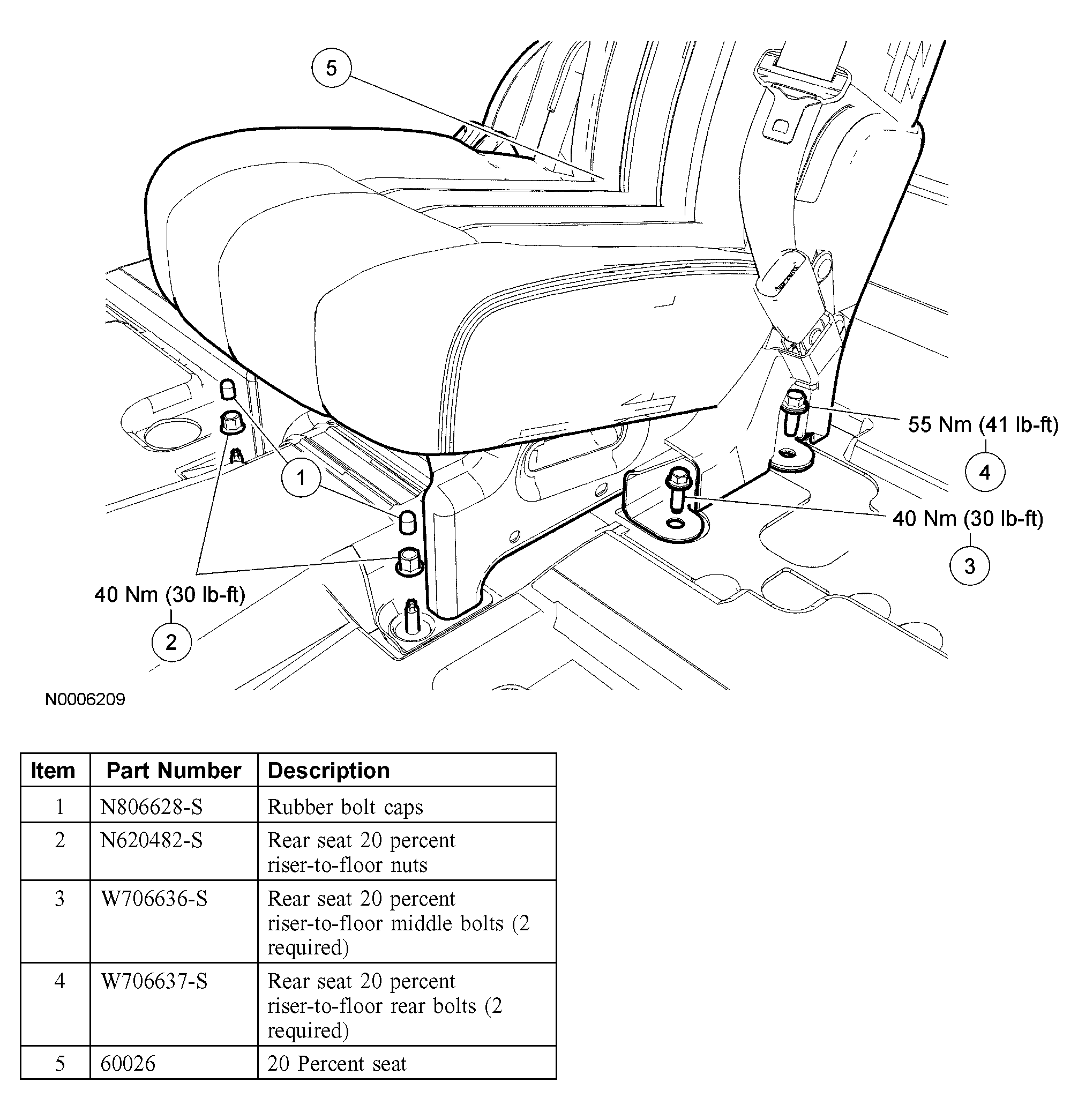

Fig 1: Replacement Components Of Rear Seat -- 20 Percent, Second Row With Torque Specifications

Courtesy of FORD MOTOR CO.

Remove the rubber bolt caps.
Remove the 2 front riser-to-floor nuts.
- To install, tighten to 40 Nm (30 lb-ft).
Fold both of the 40 percent seats up to the E-Z entry position.
Remove the 2 riser-to-floor middle bolts (one shown).
- To install, tighten to 40 Nm (30 lb-ft).
Remove the 2 riser-to-floor rear bolts (one shown).
- To install, tighten to 55 Nm (41 lb-ft).
Remove the 20 percent seat from the vehicle.
To install, reverse the removal procedure.
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
