Driver and Passenger Heated Seat Backrest Element C365a/C335a

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

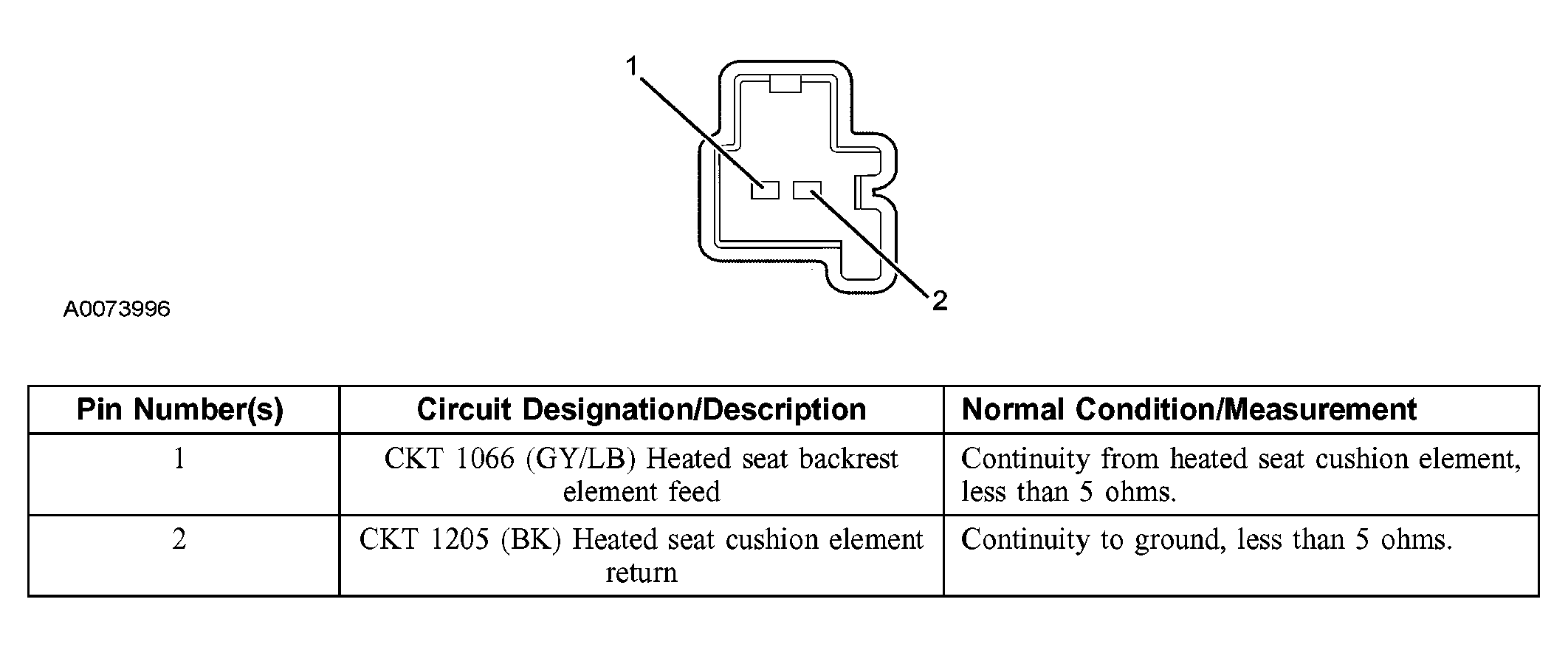

Fig 1: Identifying Driver And Passenger Heated Seat Backrest Element C365a/C335a Connector Terminals
G03953743Courtesy of FORD MOTOR CO.
