Audio Unit C290b (CD6)

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

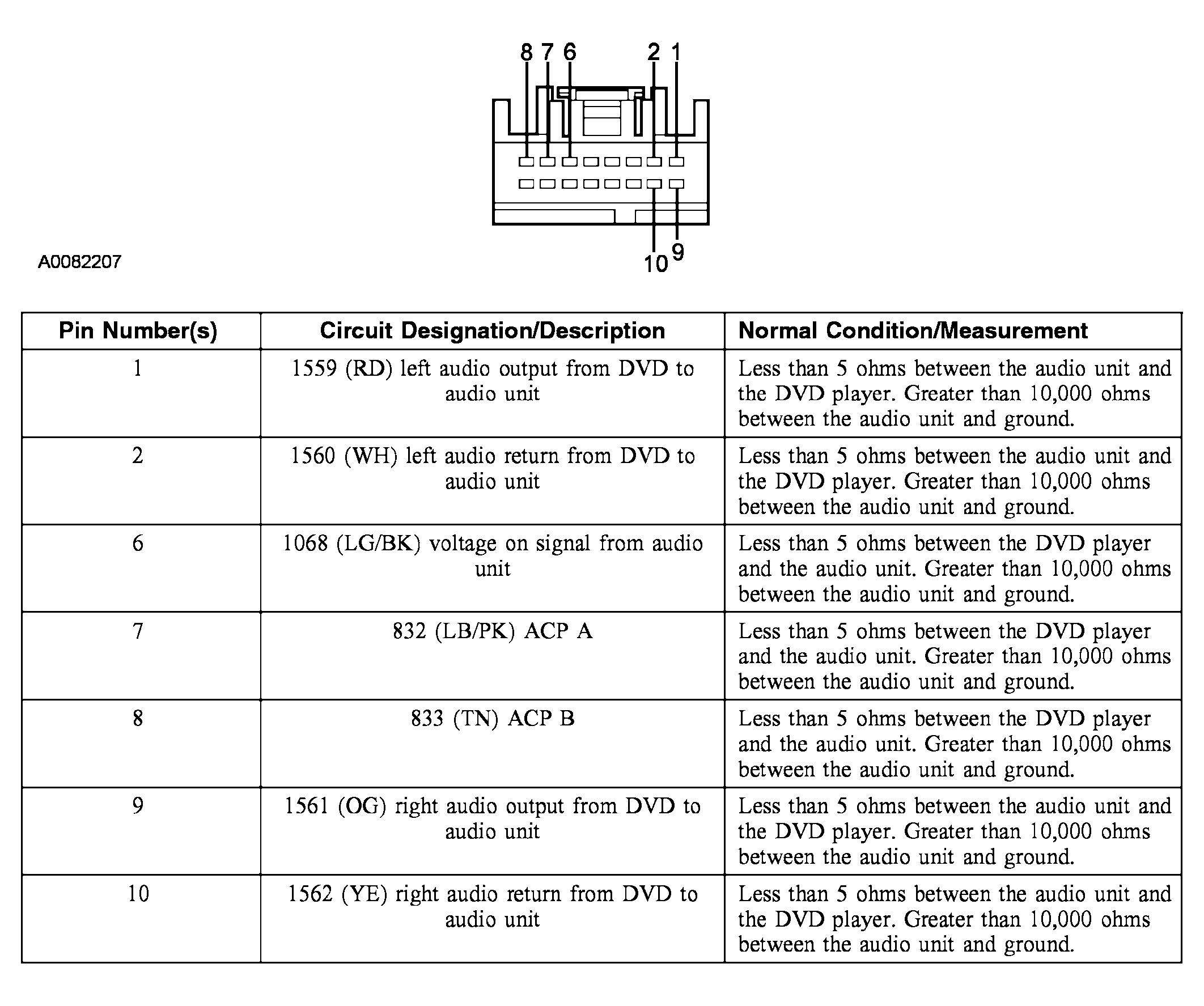

Fig 1: Identifying Audio Unit C290b (CD6) Connector Pinouts
G03945549Courtesy of FORD MOTOR CO.
