Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Explorer shown, Mountaineer similar.
  1. Remove the 7 front fender moulding pin-type retainers.

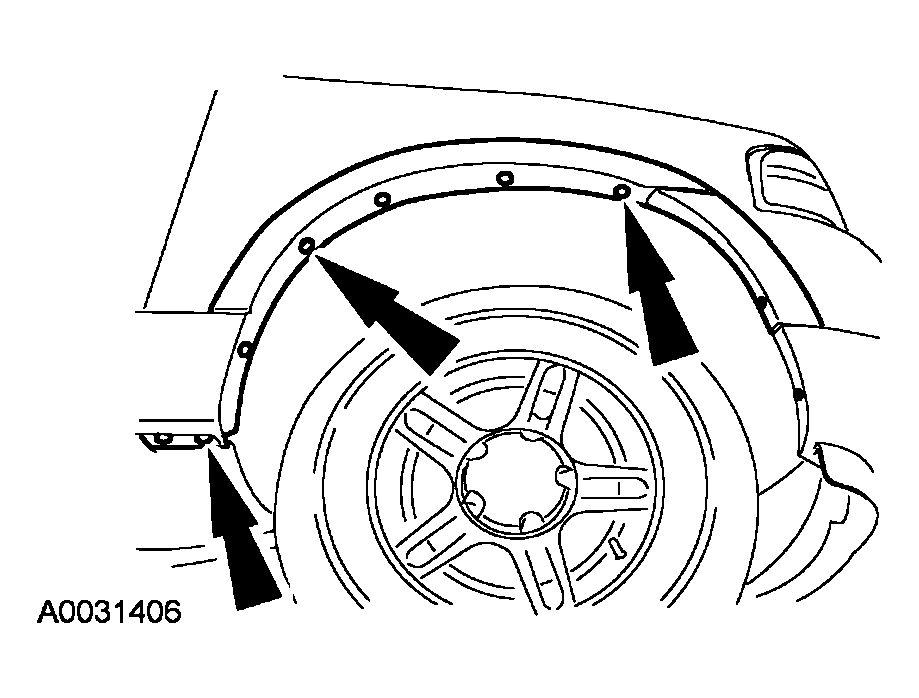

    Fig 1: Removing Front Fender Moulding Pin-Type Retainers
    G03945932Courtesy of FORD MOTOR CO.
  2. Pull the front fender moulding outward to release the retaining clips.
    Fig 2: Pulling Front Fender Moulding Outward
    G03945933Courtesy of FORD MOTOR CO.
  3. Remove the front fender moulding.
    4. NOTE: All retainer clips must be installed onto the front fender moulding before installation.
  4. To install, reverse the removal procedure.
