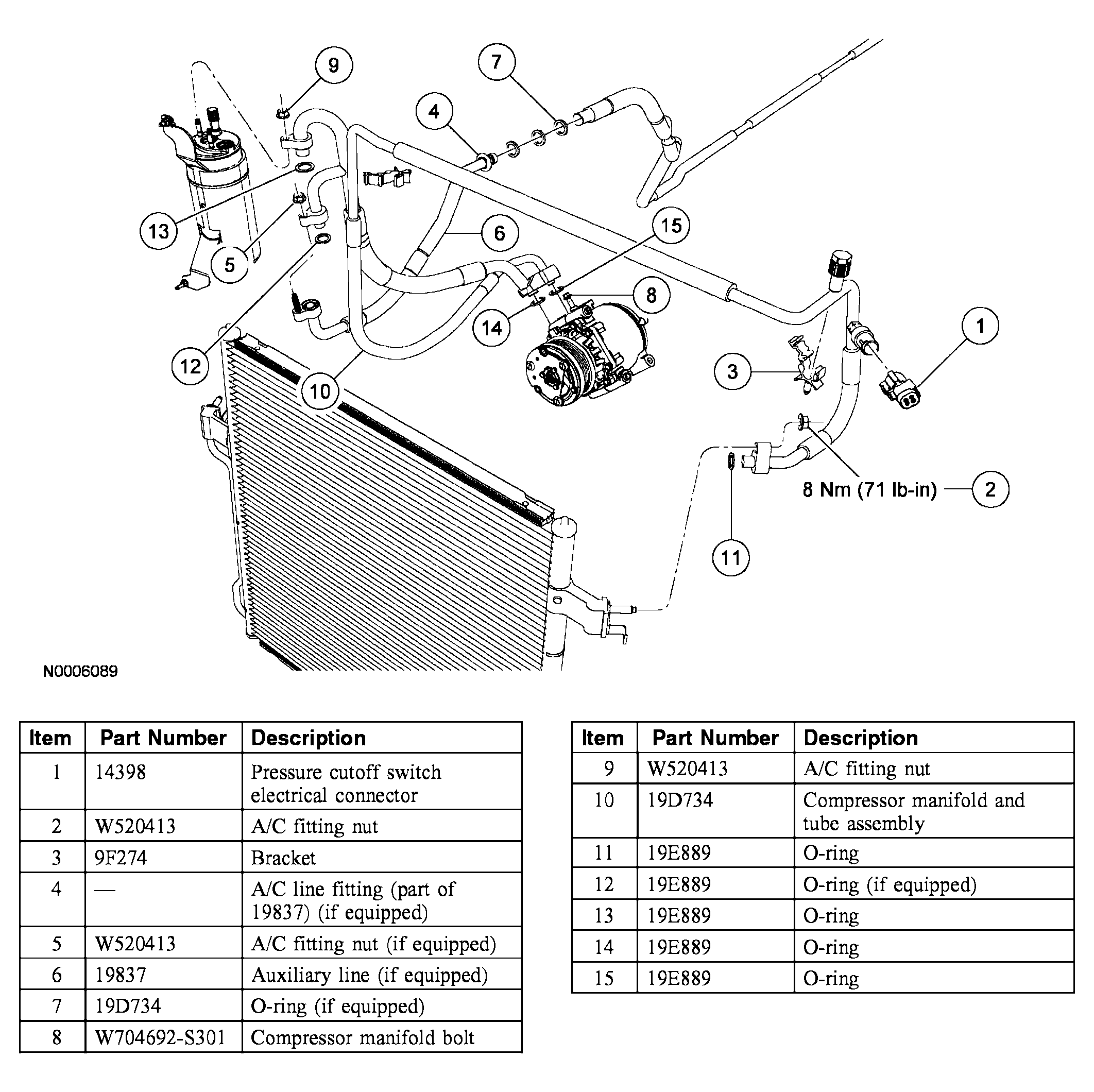

Compressor Manifold and Tube Assembly - 4.6L (2V): Notes
WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION CHART
| Item |
Specification |
| PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) |
WSH-M1C231-B |
| Refrigerant Compressor Oil (Mineral Oil) F73Z-19577-AA (Motorcraft YN-9-A) |
ESH-M2C31-A2 |
Courtesy of FORD MOTOR CO.
