Auxiliary A/C Climate Control C938a (Front) or C940a (Rear)

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

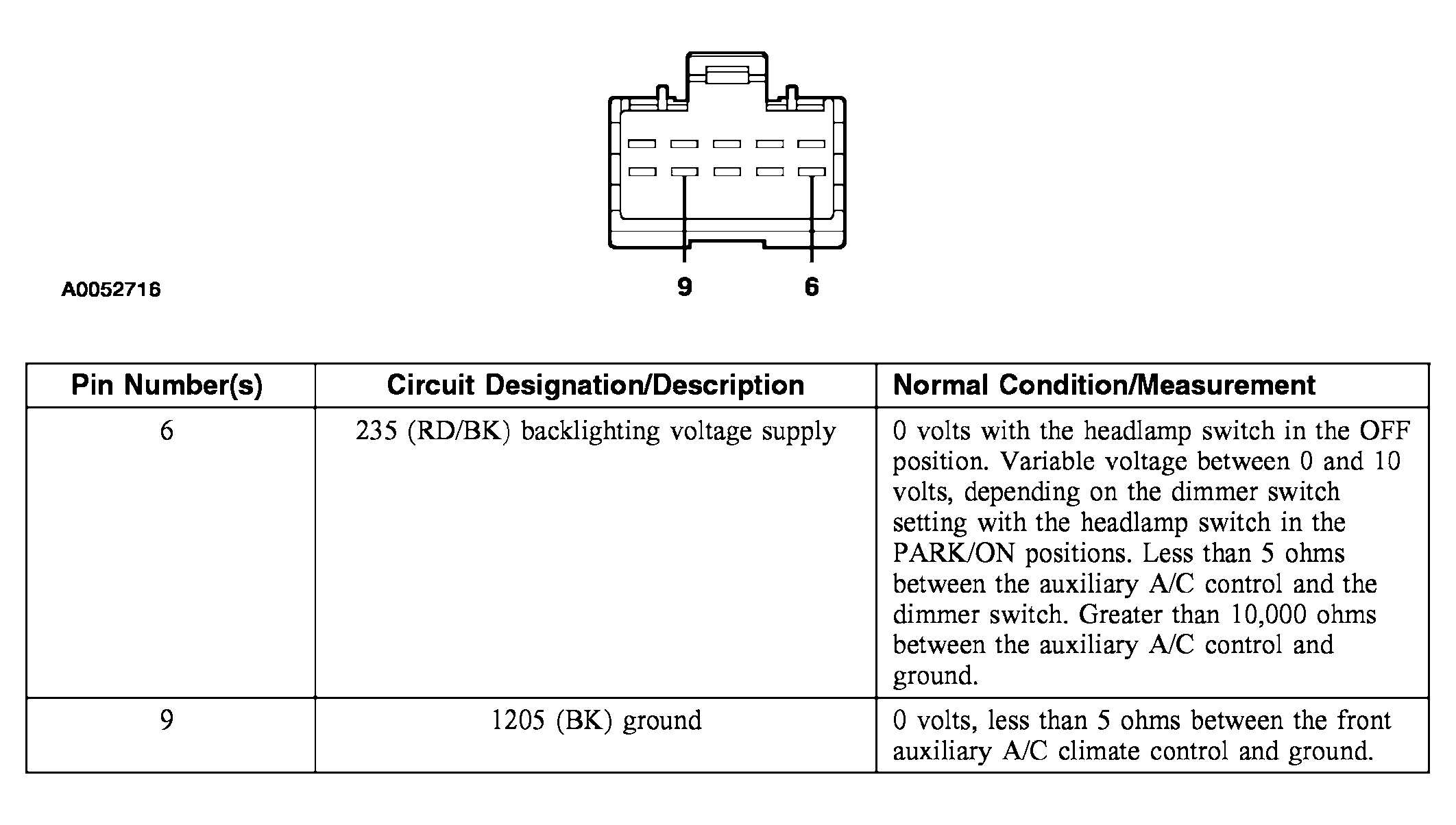

Fig 1: Identifying Auxiliary A/C Climate Control C938a (Front) Connector
G03945326Courtesy of FORD MOTOR CO.
