Transmission Fluid Cooler Hoses: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Install new fluid cooler hoses to the fluid cooler. Install new screw clamps to secure the hoses to the fluid cooler.

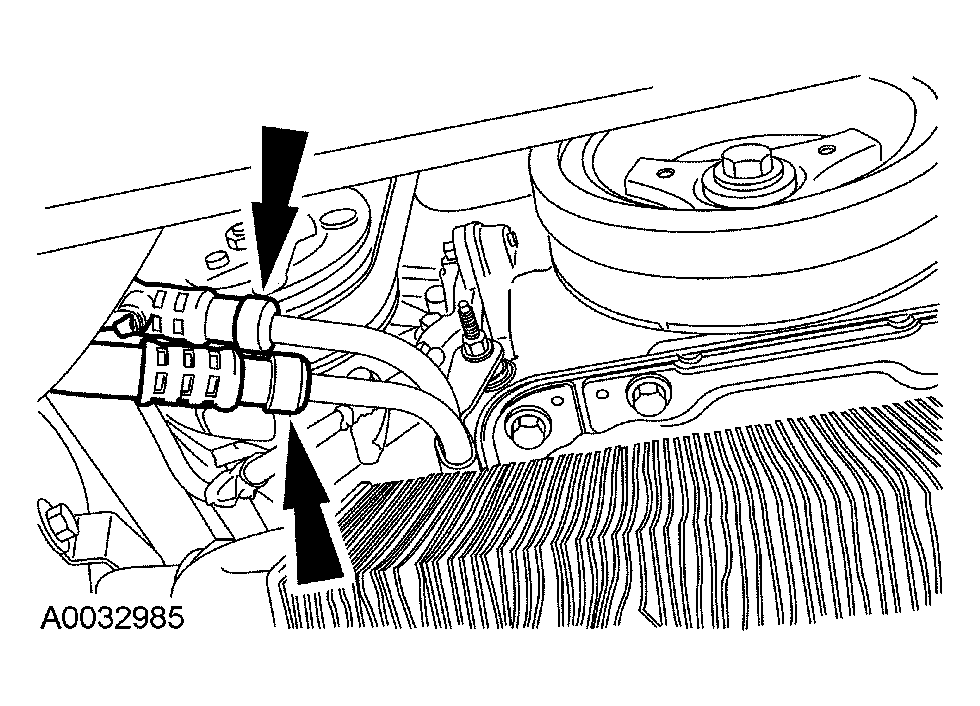

Fig 1: Installing Screw Clamps To Securing Hoses To Fluid Cooler
Courtesy of FORD MOTOR CO.
Connect the transmission cooler hoses to the cooler tubes.

Fig 2: Connecting Transmission Cooler Hoses To Cooler Tubes
Courtesy of FORD MOTOR CO.
If equipped, install the safety retainer on the connector.
Position the vehicle.
Fill transmission fluid to the correct level using clean automatic transmission fluid and inspect for leaks. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 5R55S .
