Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with color-keyed running boards, remove the running board. For additional information, refer to EXTERIOR TRIM AND ORNAMENTATION .
  2. Remove the lower moulding pushpins.

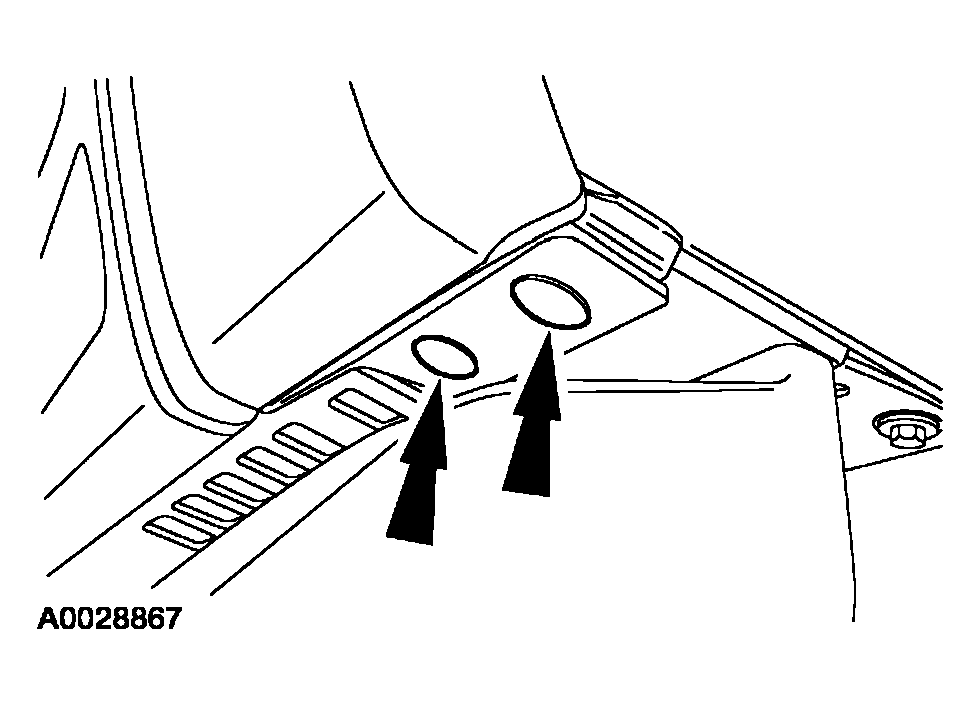

    Fig 1: Removing Lower Moulding Pushpins
    G03945876Courtesy of FORD MOTOR CO.
  3. Remove the 14 splash shield pin-type retainers.
  4. Remove the 6 splash shield scrivets.
  5. Remove the front splash shield.
  6. Remove the front fender rear splash shield.
  7. To install, reverse the removal procedure.
