Fuel Tank Draining

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL CHART

	Fuel Tank Drain Hose 310-F013
	30 Gallon Hand-Operated Fuel Tanker 034-00002 or equivalent

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Loosen the clamp and disconnect the fuel tank filler hose.

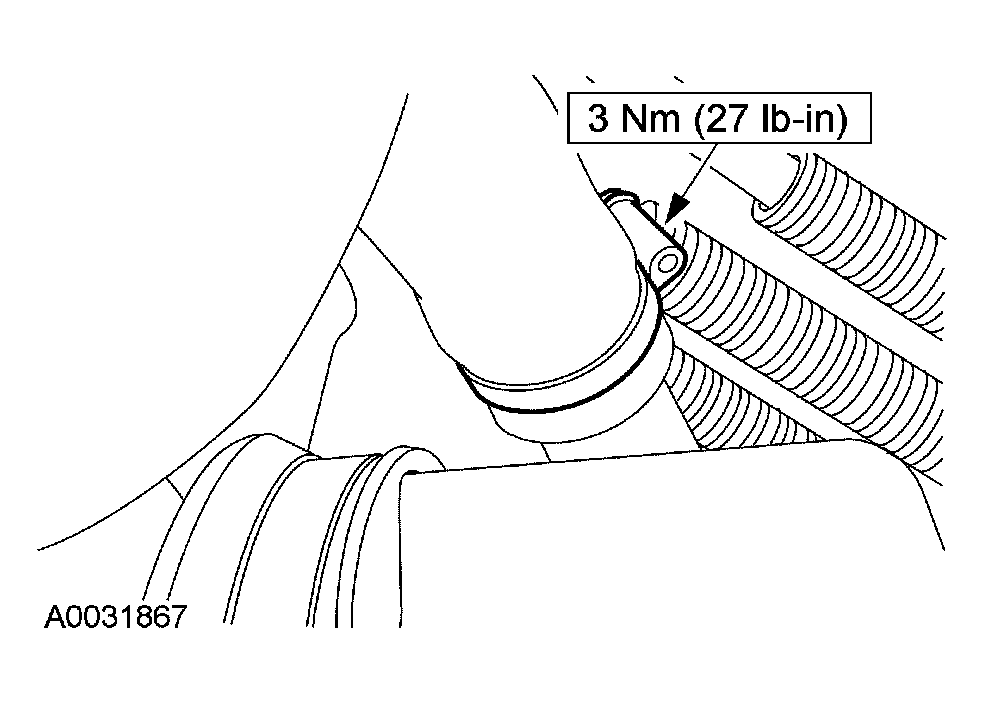

Fig 1: Removing Clamp And Disconnecting Fuel Tank Filler Hose
Courtesy of FORD MOTOR CO.
Using the special tool and the fuel tanker, siphon the fuel from the fuel tank.

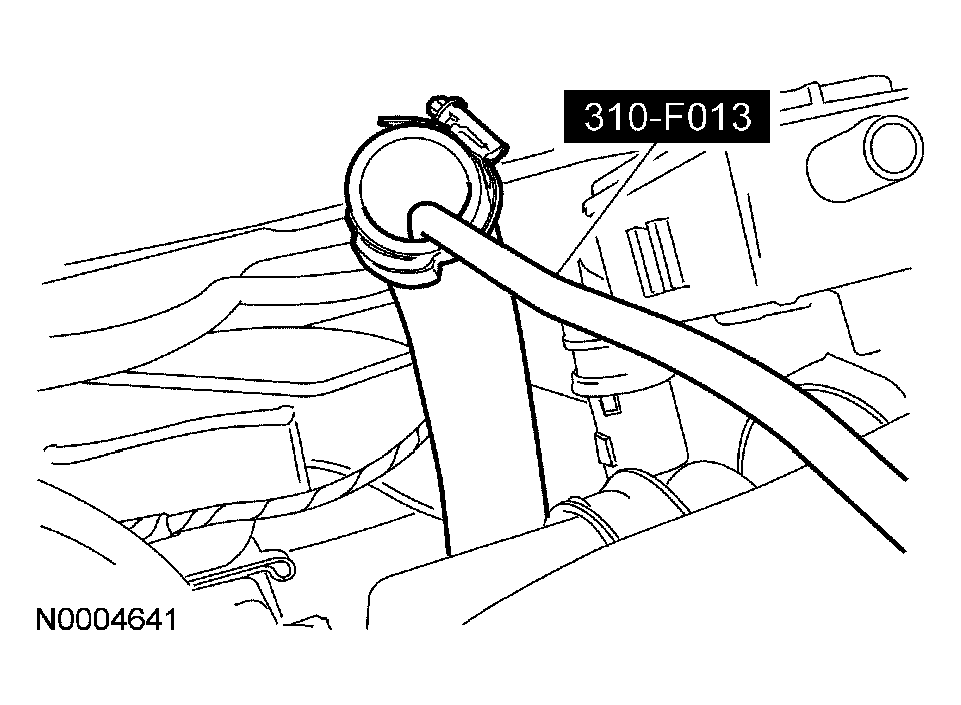

Fig 2: Drawing Fuel From Fuel Tank Using Special Tool
Courtesy of FORD MOTOR CO.
