Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wiper pivot arms. For additional information, refer to WIPER PIVOT ARM - FRONT .
Remove the RH cowl grille panel.
Remove the LH cowl grille panel.
Disconnect the windshield wiper motor electrical connector.
- Unclip the wiring harness from the wiper arm.
- Position the wiring harness aside.

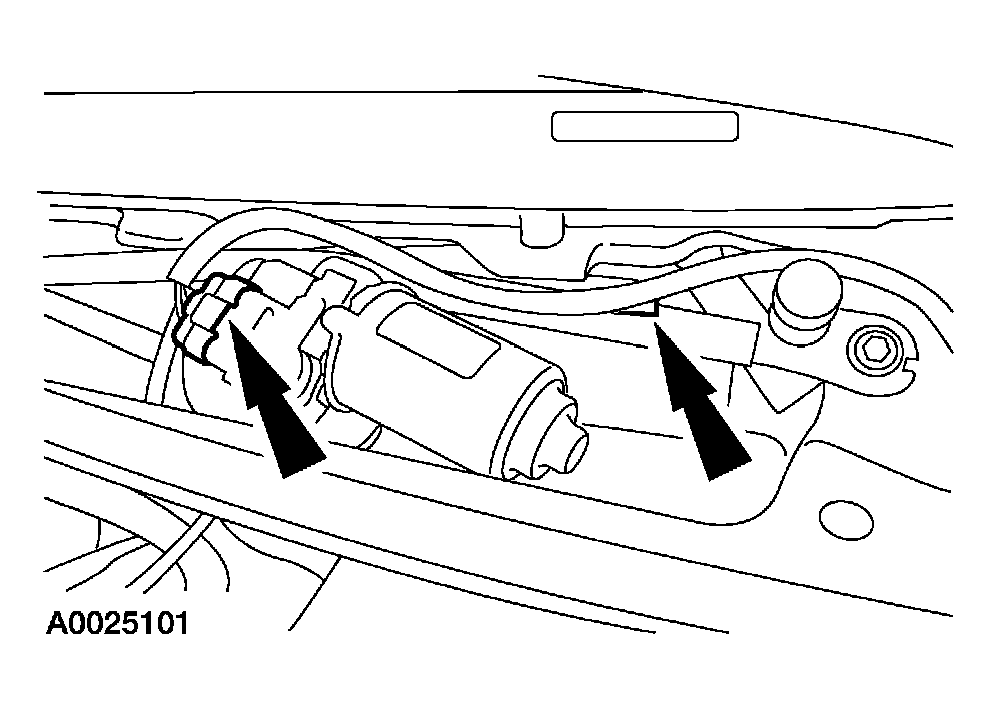

  Fig 1: Disconnecting Windshield Wiper Motor Electrical Connector
  Courtesy of FORD MOTOR CO.
Remove the 3 windshield wiper assembly mounting bolts.
- To install, tighten to 15 Nm (11 lb-ft).
Remove the windshield wiper assembly and position on a workbench.
Remove the windshield wiper motor mounting arm bolt and the wiper motor mounting arm.
- To install, tighten to 15 Nm (11 lb-ft).

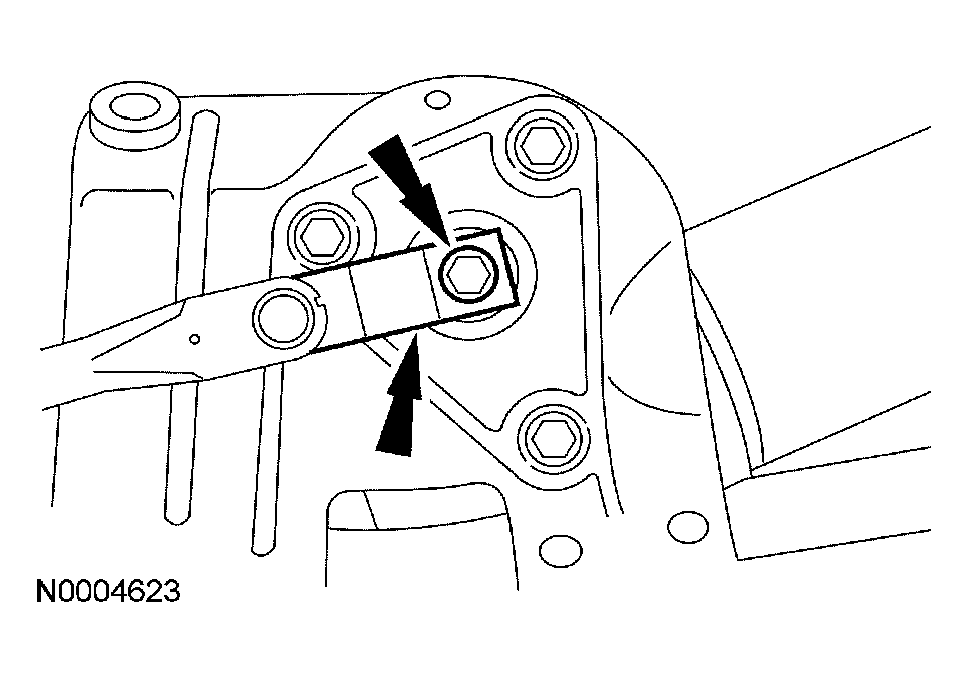

  Fig 2: Removing Windshield Wiper Motor Mounting Arm Bolt
  Courtesy of FORD MOTOR CO.
Remove the 3 windshield wiper motor mounting bolts.
- To install, tighten to 15 Nm (11 lb-ft).

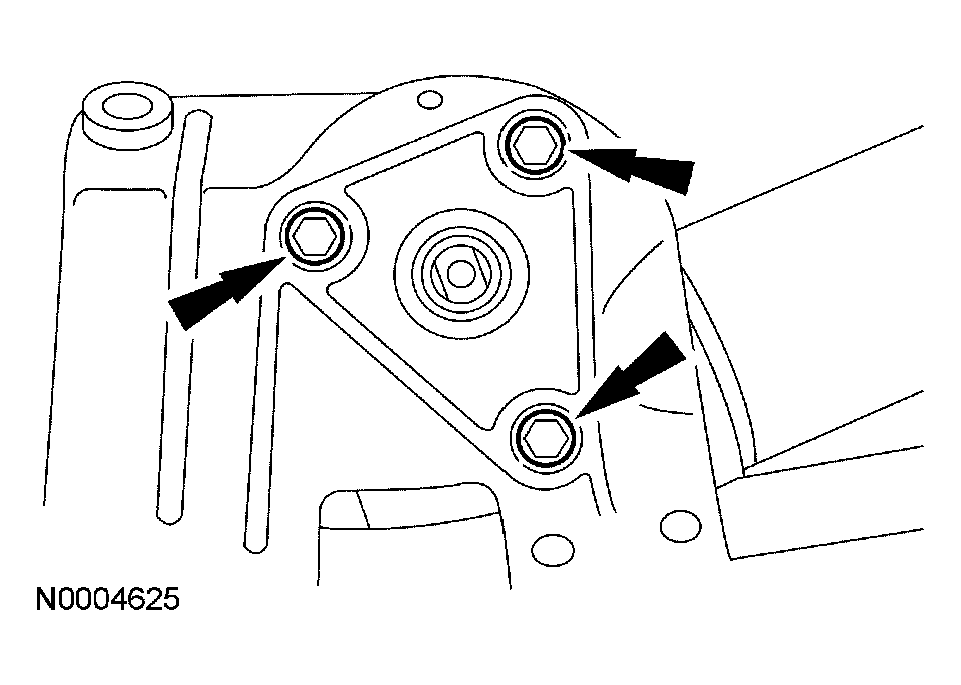

  Fig 3: Removing Windshield Wiper Motor Mounting Bolts
  Courtesy of FORD MOTOR CO.
Remove the windshield wiper motor.
To install, reverse the removal procedure.
