Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wiper pivot arm. For additional information, refer to WIPER PIVOT ARM - REAR .
Remove the rear window wiper motor grommet.
1. Remove the nut.
  - To install, tighten to 7 Nm (62 lb-in).
2. Remove the grommet.

  Fig 1: Removing Grommet
  Courtesy of FORD MOTOR CO.
Open the liftgate window.
Remove the wiper motor cover trim panel.

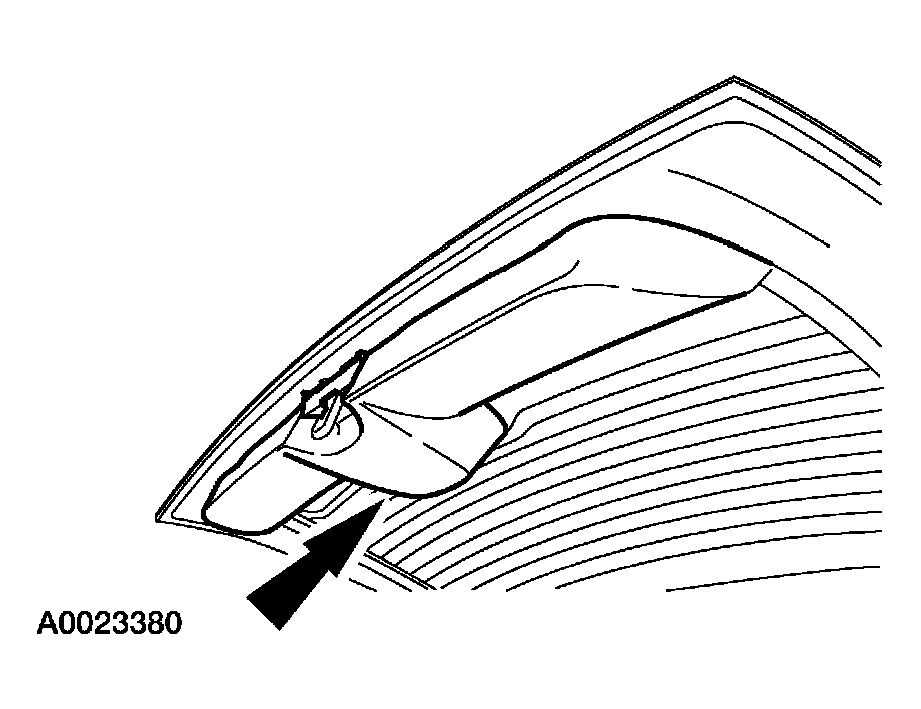

Fig 2: Removing Wiper Motor Cover Trim Panel
Courtesy of FORD MOTOR CO.
Remove the rear window wiper motor.
1. Disconnect the electrical connector.
2. Remove the 2 rear window wiper motor nuts.
  - To install, tighten to 7 Nm (62 lb-in).
3. Remove the rear window wiper motor.

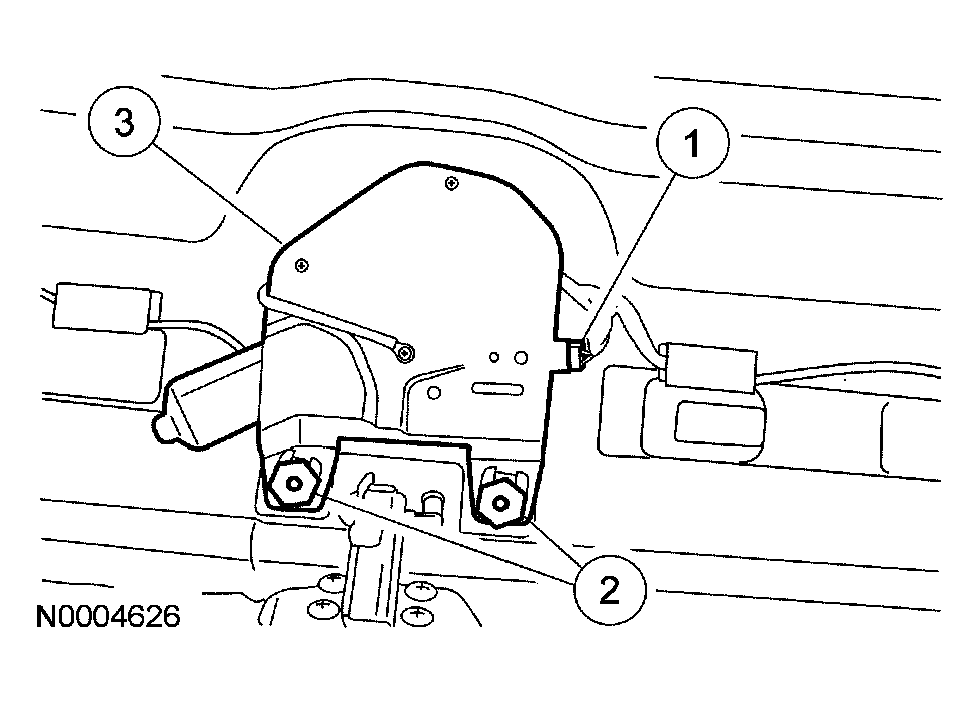

  Fig 3: Removing Rear Window Wiper Motor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
