Knock Sensor (KS) - 4.6L (2V): Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

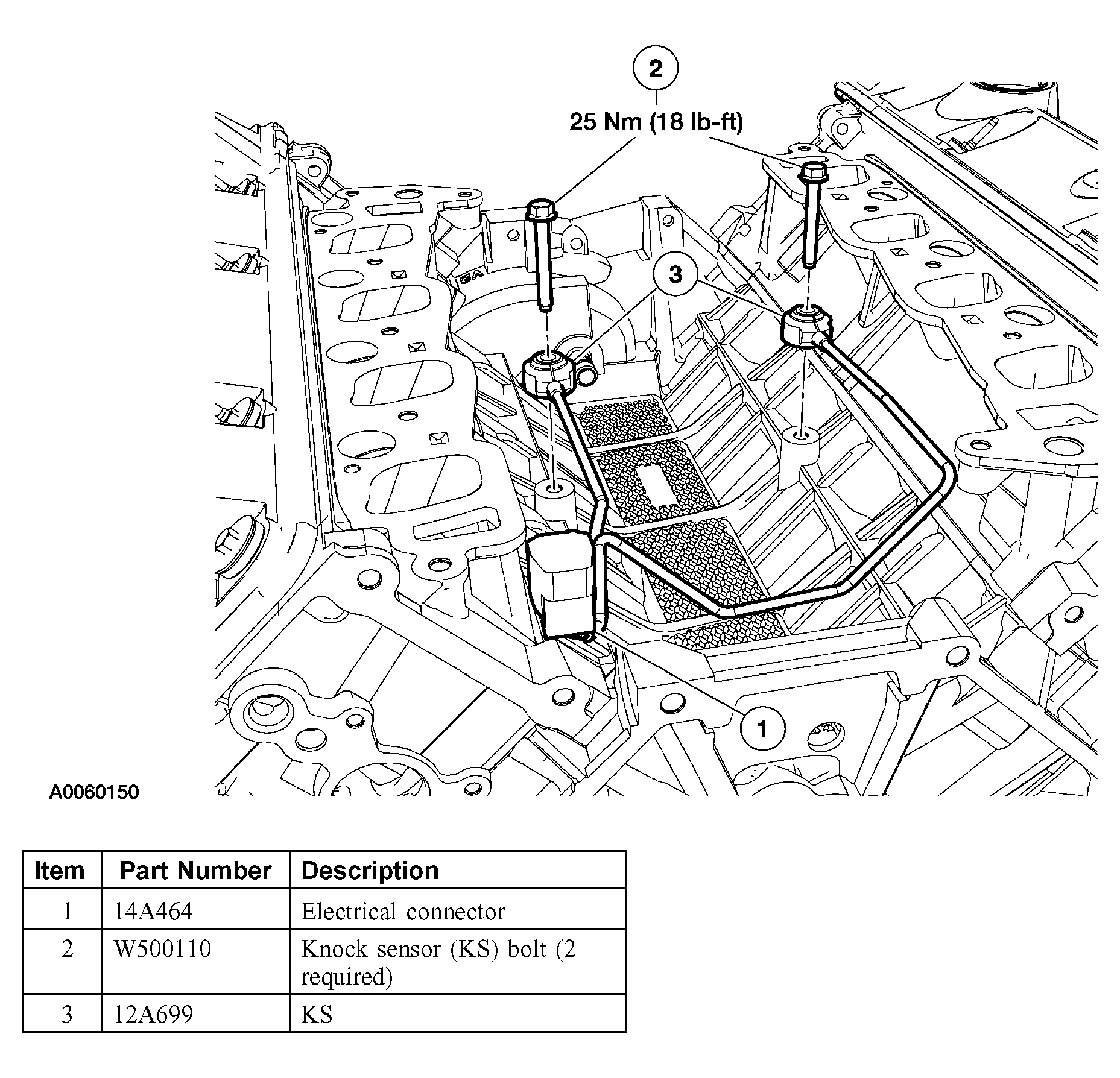

Fig 1: Knock Sensor (KS) -- 4.6L (2V) With Torque Specifications
G03948485Courtesy of FORD MOTOR CO.
