Fuel Rail Pressure and Temperature Sensor - 4.0L SOHC
WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIALS
| Item | Specification |
|---|---|
| SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP |
WSS-M2C929-A |
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.
WARNING:
Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved. Failure to follow these instructions may result in personal injury.
- Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
- Remove the intake manifold. For additional information, refer to ENGINE - 4.0L SOHC .

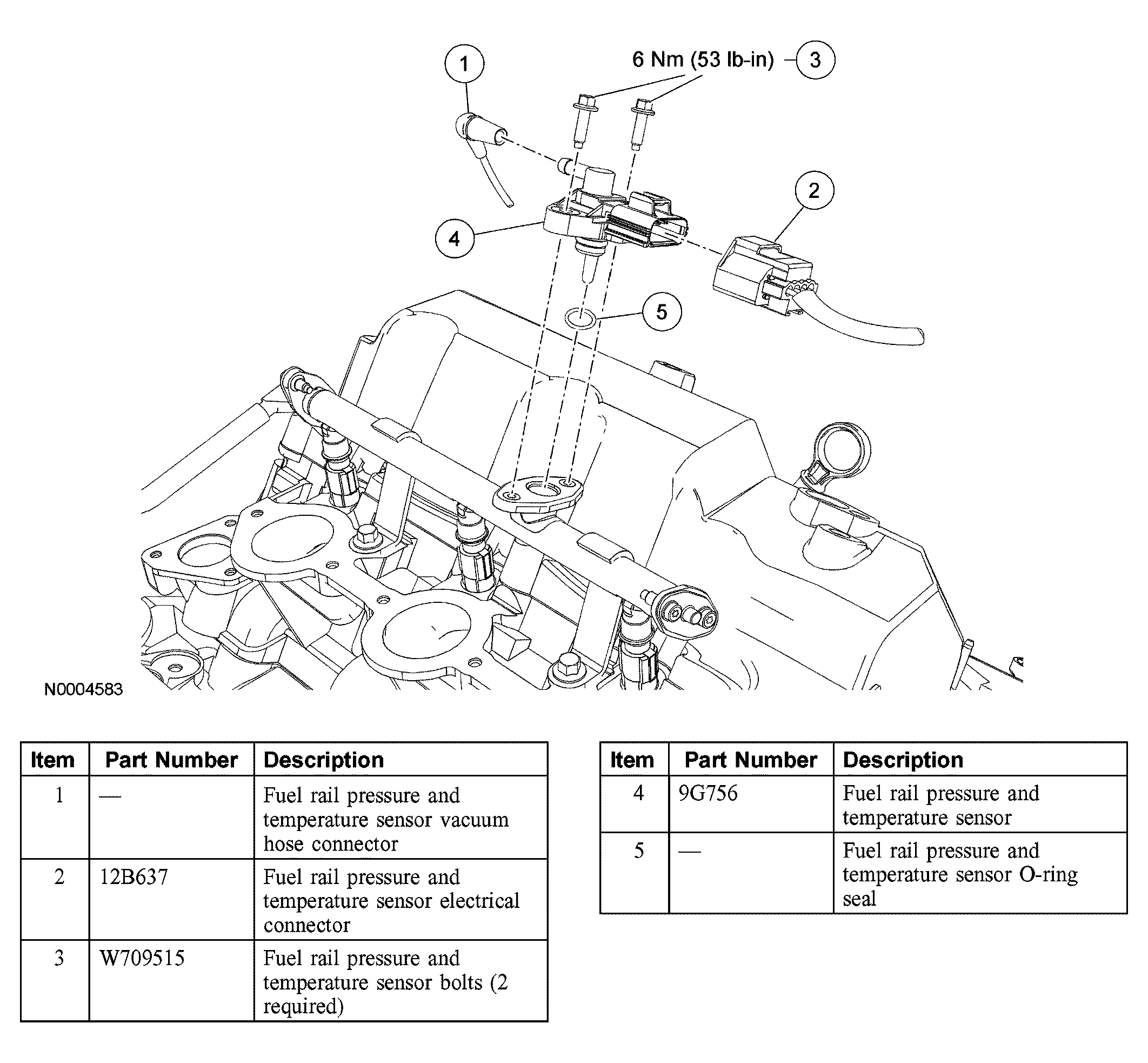

- Disconnect the fuel rail pressure and temperature sensor vacuum and electrical connectors.
- Remove the bolts and the fuel rail pressure and temperature sensor.
- To install, tighten to 6 Nm (53 lb-in).
- Remove and discard the O-ring seal.
- To install, reverse the removal procedure.
- Lubricate the new O-ring seal with clean engine oil.
CAUTION:
Use an O-ring seal made of special fuel resistant material. Use of an ordinary O-ring seal can cause the fuel system to leak. Do not reuse the O-ring seal.
