Camshaft Position (CMP) Sensor - 4.6L (2V): Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
Using the special tool, remove the power steering pump pulley.

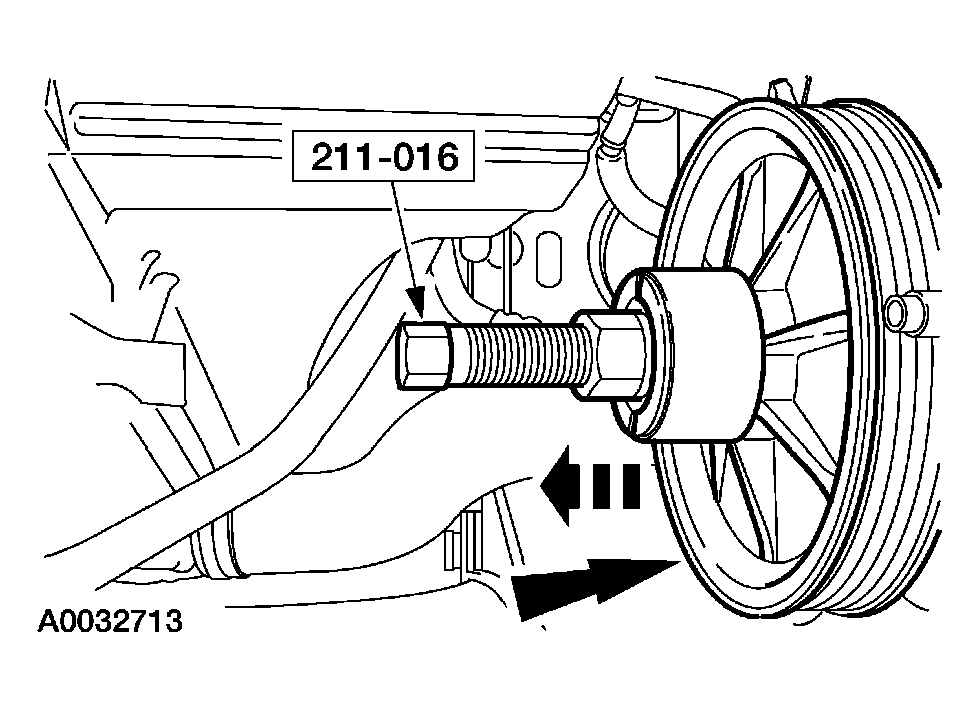

Fig 1: Removing Power Steering Pump Pulley
Courtesy of FORD MOTOR CO.
Remove the nuts and position the wiring harness bracket and ground cable aside.

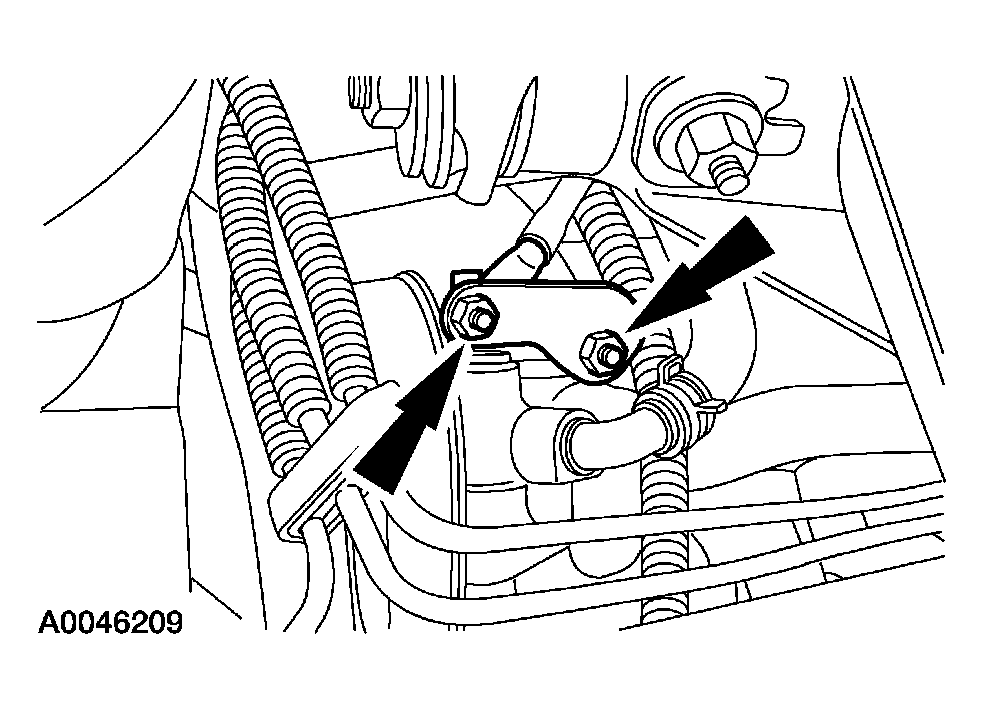

Fig 2: Removing Nuts And Position Wiring Harness Bracket And Ground Cable
Courtesy of FORD MOTOR CO.
Remove the power steering pump stud bolts.
Remove the nut and detach the power steering hose bracket.

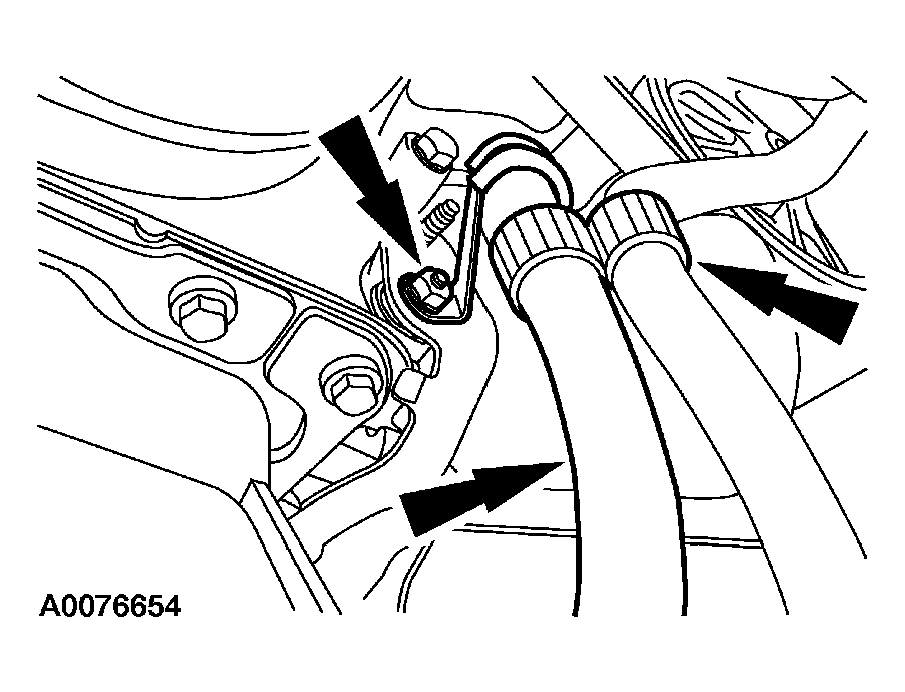

Fig 3: Removing Nut And Detach Power Steering Hose Bracket
Courtesy of FORD MOTOR CO.
Disconnect the power steering pressure hose fitting and remove and discard the O-ring seal.
- Drain the fluid into a suitable container.

  Fig 4: Draining Fluid Into Suitable Container
  Courtesy of FORD MOTOR CO.
Remove the bolt and position the power steering pump aside.
Remove the nut and position the radio interference capacitor and the power steering fluid reservoir and bracket aside.

Fig 5: Removing Nut And Position Radio Interference Capacitor
Courtesy of FORD MOTOR CO.
Disconnect the camshaft position (CMP) sensor electrical connector.
Remove the bolt and the CMP sensor.
