Mountaineer: LH Parking/Turn lamp C1115, RH Park/Turn lamp C1116

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

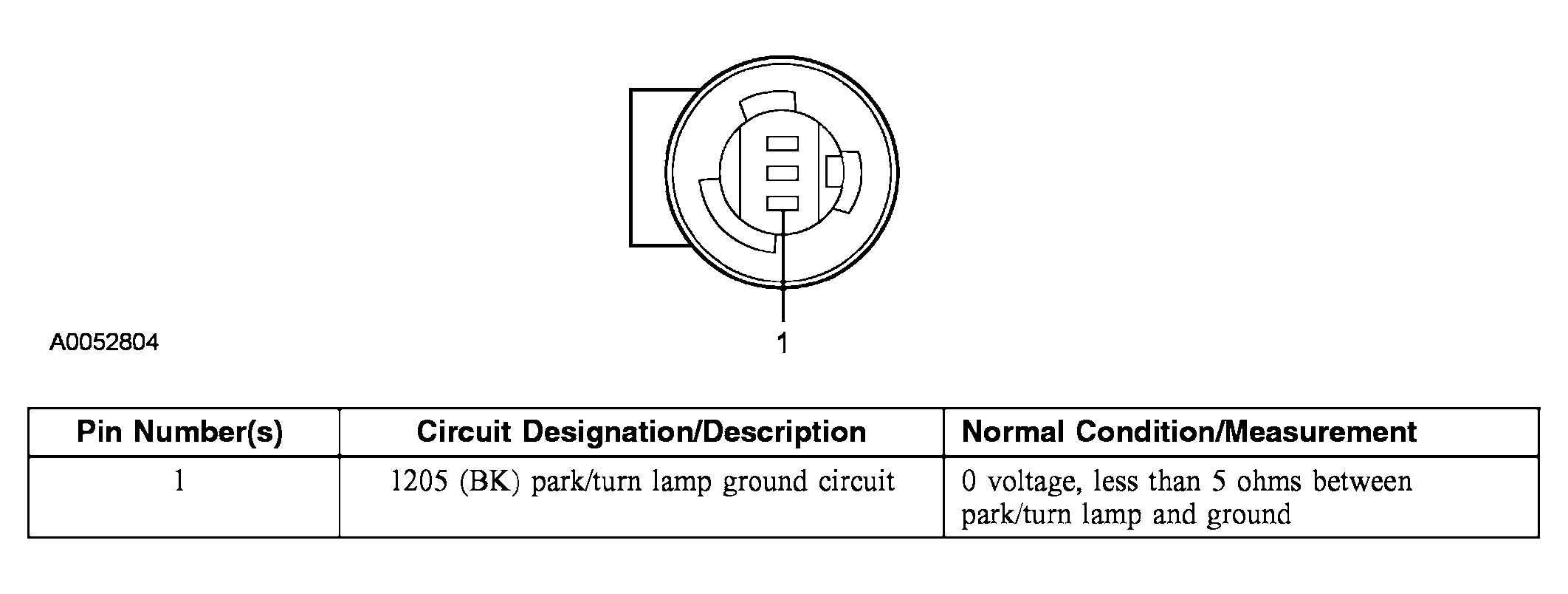

Fig 1: Identifying C1115 And C1116 Connector Pinouts
G03945634Courtesy of FORD MOTOR CO.
