Mountaineer: RH Rear Lamp C4034 and LH Rear Lamp C4036

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

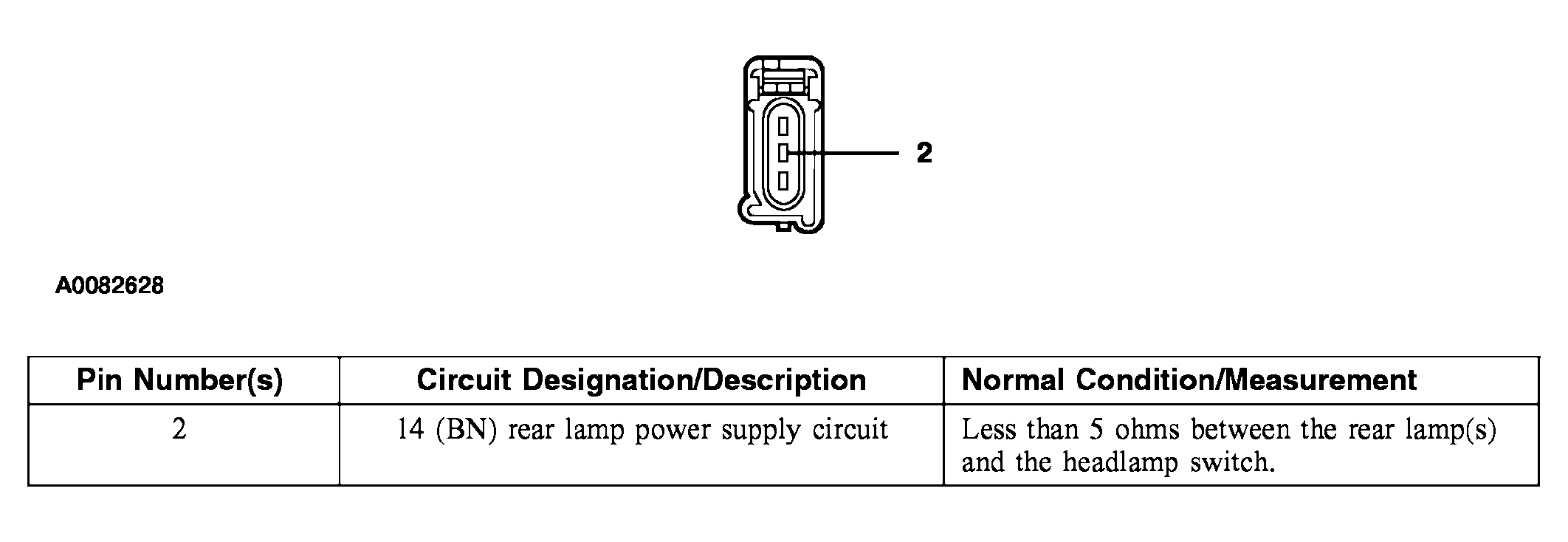

Fig 1: Identifying C4034 And C4036 Connector Pinouts
G03945647Courtesy of FORD MOTOR CO.
