LH Fog Lamp C152, RH Fog Lamp C162

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

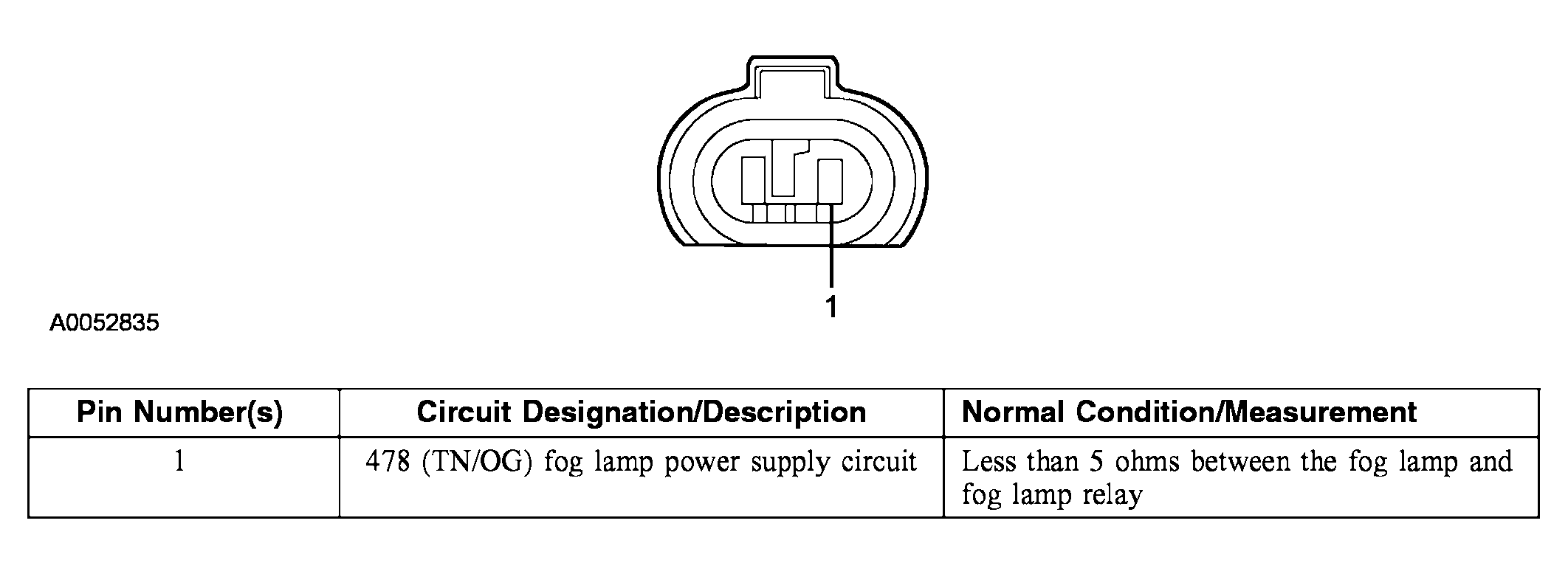

Fig 1: Identifying C152 And C162 Connector Pinouts
G03945653Courtesy of FORD MOTOR CO.
