Pinpoint Test J: LFC 42, 43, 44, 45 And 46/DTC B2296 - Restraint System - Impact Sensor Fault

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough Inspection and Verification before proceeding with the Pinpoint Test.
  1. J1 CHECK FOR A HARD OR INTERMITTENT DTC
    WARNING: Restraint system diagnostic tools are for service only. Tools must be removed prior to operating the vehicle over the road. Failure to remove restraint system diagnostic tools could result in injury and possible violation of vehicle safety standards.
    WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow these instructions may result in the inadvertent deployment of the safety canopy and risk of personal injury.
    WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
    WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
    WARNING: Never probe the electrical connector on a safety canopy module. Doing so can result in safety canopy deployment.
    NOTE: After diagnosing or repairing a supplemental restraint system (SRS), the restraint system diagnostic tools must be removed before operating the vehicle over the road.
    NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
    • Enter the following diagnostic mode on the diagnostic tool: Retrieve/Flag Continuous DTCs.
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : This is a hard fault. The fault condition is still present. This fault cannot be cleared until it is corrected and the DTC is no longer retrieved during the on-demand self test.

      If a flagged fault of "?" was recorded, multiple faults exist and the entire pinpoint test must be carried out.

      For first row driver side impact (F_D_SEN) sensor with a mounting/communications (COMM) fault, GO to J2.

      For first row driver side impact sensor (F_D_ SEN) with an internal (INT) fault, INSTALL a new first row driver side impact sensor. REFER to SIDE IMPACT SENSOR - FIRST ROW, B-PILLAR . GO to  J54.

      For first row passenger side impact sensor (F_P_ SEN) with a mounting/communications (COMM) fault, GO to  J12.

      For first row passenger side impact sensor (F_P_ SEN) with an internal (INT) fault, INSTALL a new first row passenger side impact sensor. REFER to SIDE IMPACT SENSOR - FIRST ROW, B-PILLAR . GO to  J54.

      For second row driver side impact sensor (D_2_SEN) with a mounting/communication (COMM) fault, GO to  J22.

      For second row driver side impact sensor (D_2_ SEN) with an internal (INT) fault, INSTALL a new second row driver side impact sensor. REFER to SIDE IMPACT SENSOR - SECOND ROW, C-PILLAR . GO to  J54.

      For second row passenger side impact sensor (P_2_ SEN) with a mounting/communications (COMM) fault, GO to  J32.

      For second row passenger side impact sensor (P_2_SEN) with an internal (INT) fault, INSTALL a new second row passenger side impact sensor. REFER to SIDE IMPACT SENSOR - SECOND ROW, C-PILLAR . GO to  J54.

      For front impact severity sensor (FNTJSEN) with a mounting/communications (COMM) fault, GO to  J42.

      For front impact severity sensor (FNT_SEN) with an internal fault (INT) fault, INSTALL a new front impact severity sensor. REFER to FRONT IMPACT SEVERITY SENSOR . GO to  J54.

    • No  : This is an intermittent fault. The fault condition is not present at this time. GO to  J53.
  2. J2 INSPECT THE FIRST ROW DRIVER SIDE IMPACT SENSOR MOUNTING, MOUNTING BRACKET AND MOUNTING SURFACE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Inspect the first row driver side impact sensor mounting and make sure that the retaining bolts are fully seated and tightened correctly.
    • Remove the first row driver side impact sensor.
    • Visually inspect the first row driver side impact sensor, mounting bracket and mounting surface for damage, corrosion or dirt.
    • Was a significant amount of corrosion or dirt found, the first row driver side impact sensor mounting bracket attached to the mounting surface incorrectly or were the impact sensor bolts not fully seated and tightened correctly?
    • Yes  : CLEAN, TIGHTEN the bolts or REPAIR the mounting surface as necessary. REINSTALL the first row driver side impact sensor. GO to  J44.
    • No  : GO to J3.
  3. J3 INSTALL THE FIRST ROW DRIVER SIDE IMPACT SENSOR AND CARRY OUT THE ON-DEMAND SELF TEST
    • Clean and repair the mounting surface as necessary.
    • Clean the first row driver side impact sensor mounting bolts.
    • Install the first row driver side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J4.
    • No  : Fault corrected. GO to  J54.
  4. J4 CHECK THE FIRST ROW DRIVER SIDE IMPACT SENSOR GROUND CIRCUIT 1262 (BN/LG) FOR HIGH RESISTANCE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: First Row Driver Side Impact Sensor C3209.
    • Measure the resistance between first row driver side impact sensor C3209 pin 1, circuit 1262 (BN/LG), harness side and the first row driver side impact sensor case ground.

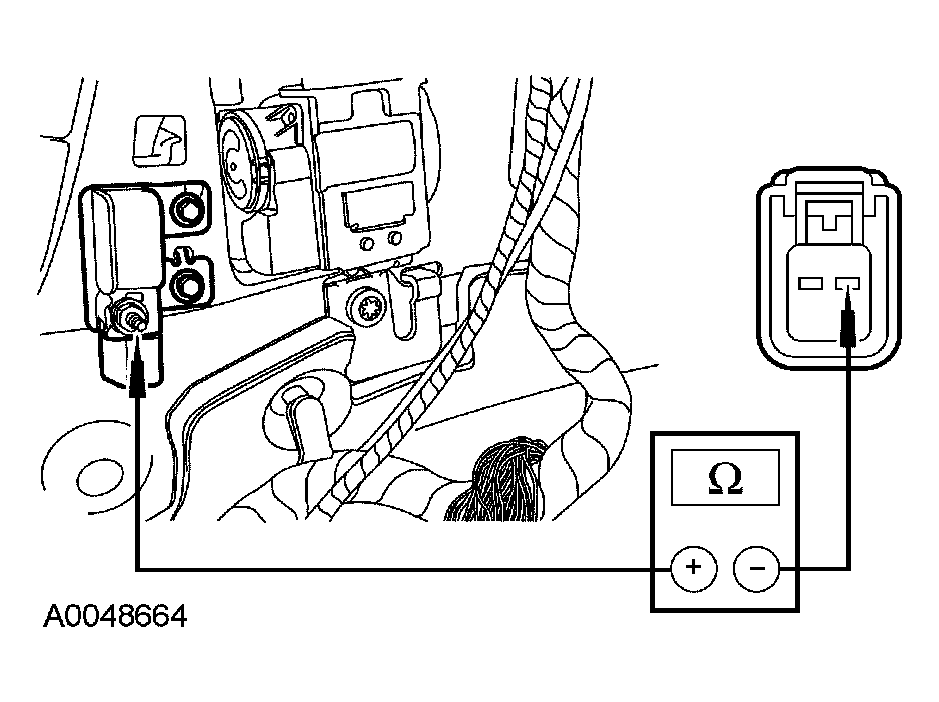

      Fig 1: Check First Row Driver Side Impact Sensor Ground Circuit 1262 (BN/LG) For High Resistance
      G03946368Courtesy of FORD MOTOR CO.
    • Is the resistance less than 10 ohms?
    • Yes  : GO to  J6.
    • No  : GO to J5.
  5. J5 CLEAN THE FIRST ROW DRIVER SIDE IMPACT SENSOR MOUNTING SURFACE AND CARRY OUT THE ON-DEMAND SELF TEST
    • Remove the first row driver side impact sensor.
    • Clean and repair the mounting surface as necessary.
    • Clean the first row driver side impact sensor mounting bolts.
    • Install the first row driver side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J6.
    • No  : Fault corrected. GO to  J54.
  6. J6 CHECK CIRCUIT 1261 (WH/LG) AND CIRCUIT 1262 (BN/LG) FOR A SHORT TO VOLTAGE BETWEEN THE FIRST ROW DRIVER SIDE IMPACT SENSOR AND THE RCM
    • Yes  : GO to J7.
    • No  : REPAIR short to battery in circuit 1261 (WH/LG) or circuit 1262 (BN/LG). GO to  J54.
  7. J7 CHECK CIRCUIT 1261 (WH/LG) AND CIRCUIT 1262 (BN/LG) FOR A SHORT TO GROUND BETWEEN THE FIRST ROW DRIVER SIDE IMPACT SENSOR AND THE RCM
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Measure the resistance between first row driver side impact sensor C3209 pin 1, circuit 1262 (BN/LG), harness side and ground; and between pin 2, circuit 1261 (WH/LG), harness side and ground.
      Fig 3: Checking Circuit 1261 (WH/LG) And Circuit 1262 (BN/LG) For A Short To Ground Between First Row Driver Side Impact Sensor And RCM
      G03881041Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 1,000,000 ohms?
    • Yes  : GO to J8.
    • No  : REPAIR short to ground in circuit 1261 (WH/LG) or circuit 1262 (BN/LG). GO to  J54.
  8. J8 CHECK CIRCUIT 1261 (WH/LG) FOR AN OPEN BETWEEN THE RCM AND THE FIRST ROW DRIVER SIDE IMPACT SENSOR
    • Measure the resistance between RCM C310b pin 27, circuit 1261 (WH/LG), harness side and first row driver side impact sensor C3209 pin 2, circuit 1261 (WH/LG), harness side.
      Fig 4: Checking Circuit 1261 (WH/LG) For An Open Between RCM And First Row Driver Side Impact Sensor
      G03932945Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J9.
    • No  : REPAIR circuit 1261 (WH/LG). GO to  J54.
  9. J9 CHECK CIRCUIT 1262 (BN/LG) FOR AN OPEN BETWEEN THE RCM AND THE FIRST ROW DRIVER SIDE IMPACT SENSOR
    • Measure the resistance between RCM C310b pin 28, circuit 1262 (BN/LG), harness side and first row driver side impact sensor C3209 pin 1, circuit 1262 (BN/LG), harness side.
      Fig 5: Check Circuit 1262 (BN/LG) For An Open Between The RCM And The First Row Driver Side Impact Sensor
      G03946366Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J10.
    • No  : REPAIR circuit 1262 (BN/LG). GO to  J54.
  10. J10 CHECK CIRCUIT 1261 (WH/LG) FOR A SHORT TO CIRCUIT 1262 (BN/LG) BETWEEN THE RCM AND THE FIRST ROW DRIVER SIDE IMPACT SENSOR
    • Measure the resistance between first row driver side impact sensor C3209 pin 2, circuit 1261 (WH/LG), harness side and pin 1, circuit 1262 (BN/LG), harness side.
      Fig 6: Measuring Resistance Across Connector Terminals
      G03946379Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 1,000,000 ohms?
    • Yes  : GO to J11.
    • No  : REPAIR circuit 1261 (WH/LG) and circuit 1262 (BN/LG). GO to  J54.
  11. J11 CHECK THE FIRST ROW DRIVER SIDE IMPACT SENSOR
    • Connect: RCM C310a.
    • Connect: RCM C310b.
    • Install a known good first row driver side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Were any faults flagged against the first row driver side impact sensor?
    • Yes  : INSTALL the original first row driver side impact sensor. GO to  J52.
    • No  : Fault corrected. GO to  J54.
  12. J12 INSPECT THE FIRST ROW PASSENGER SIDE IMPACT SENSOR MOUNTING, MOUNTING BRACKET AND MOUNTING SURFACE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Inspect the first row passenger side impact sensor mounting and make sure that the retaining bolts are fully seated and tightened correctly.
    • Remove the first row passenger side impact sensor.
    • Visually inspect the first row passenger side impact sensor, mounting bracket and mounting surface for damage, corrosion or dirt.
    • Was a significant amount of corrosion or dirt found, the first row passenger side impact sensor mounting bracket attached to the mounting surface incorrectly or were the impact sensor bolts not fully seated and tightened correctly?
    • Yes  : CLEAN, TIGHTEN the bolts or REPAIR the mounting surface as necessary. REINSTALL the first row passenger side impact sensor. GO to  J54.
    • No  : GO to J13.
  13. J13 INSTALL THE FIRST ROW PASSENGER SIDE IMPACT SENSOR AND CARRY OUT THE ON-DEMAND SELF TEST
    • Clean and repair the mounting surface as necessary.
    • Clean the first row passenger side impact sensor mounting bolts.
    • Install the first row passenger side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J14.
    • No  : Fault corrected. GO to  J54.
  14. J14 CHECK THE FIRST ROW PASSENGER SIDE IMPACT SENSOR GROUND CIRCUIT 1264 (BN) FOR HIGH RESISTANCE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: First Row Passenger Side Impact Sensor C3211.
    • Measure the resistance between the first row passenger side impact sensor C3211 pin 1, circuit 1264 (BN), harness side and the first row passenger side impact sensor case ground.
      Fig 7: Measuring Resistance Between First Row Passenger Side Impact Sensor And First Row Passenger Side Impact Sensor Case Ground
      G03946368Courtesy of FORD MOTOR CO.
    • Is the resistance less than 10 ohms?
    • Yes  : GO to  J16.
    • No  : GO to J15.
  15. J15 CLEAN THE FIRST ROW PASSENGER SIDE IMPACT SENSOR MOUNTING SURFACE AND CARRY OUT THE ON-DEMAND SELF TEST
    • Remove the first row passenger side impact sensor.
    • Clean and repair the mounting surface as necessary.
    • Clean the first row passenger side impact sensor mounting bolts.
    • Install the first row passenger side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J16.
    • No  : Fault corrected. GO to  J54.
  16. J16 CHECK CIRCUIT 1263 (WH) AND CIRCUIT 1264 (BN) FOR A SHORT TO BATTERY BETWEEN THE FIRST ROW PASSENGER SIDE IMPACT SENSOR AND THE RCM
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: First Row Passenger Side Impact Sensor C3211.
    • Disconnect: RCM C310a.
    • Disconnect: RCM C310b.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Key in ON position.
    • Measure the voltage between first row passenger side impact sensor C3211 pin 2, circuit 1263 (WH), harness side and ground; and between pin 1, circuit 1264 (BN), harness side and ground.
      Fig 8: Measuring Voltage Between Connector Terminals & Ground
      G03881040Courtesy of FORD MOTOR CO.
    • Are the voltages less than 0.2 volt?
    • Yes  : GO to J17.
    • No  : REPAIR circuit 1263 (WH) or circuit 1264 (BN). GO to  J54.
  17. J17 CHECK CIRCUIT 1263 (WH) AND CIRCUIT 1264 (BN) FOR A SHORT TO GROUND BETWEEN THE FIRST ROW PASSENGER SIDE IMPACT SENSOR AND THE RCM
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Measure the resistance between first row passenger side impact sensor C3211 pin 2, circuit 1263 (WH), harness side and ground; and between pin 1, circuit 1264 (BN), harness side and ground.
      Fig 9: Measuring Resistance Between Sensor connector Terminals & Ground
      G03881041Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 1,000,000 ohms?
    • Yes  : GO to J18.
    • No  : REPAIR circuit 1263 (WH) or circuit 1264 (BN). GO to  J54.
  18. J18 CHECK CIRCUIT 1263 (WH) FOR AN OPEN BETWEEN THE RCM AND THE FIRST ROW PASSENGER SIDE IMPACT SENSOR
    • Measure the resistance between RCM C310b pin 29, circuit 1263 (WH), harness side and first row passenger side impact sensor C3211 pin 2, circuit 1263 (WH), harness side.
      Fig 10: Checking Circuit 1263 (WH) For An Open Between The RCM And The First Row Passenger Side Impact Sensor
      G03917356Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J19.
    • No  : REPAIR circuit 1263 (WH). GO to  J54.
  19. J19 CHECK CIRCUIT 1264 (BN) FOR AN OPEN BETWEEN THE RCM AND THE FIRST ROW PASSENGER SIDE IMPACT SENSOR
    • Measure the resistance between RCM C310b pin 30, circuit 1264 (BN), harness side and first row passenger side impact sensor C3211 pin 1, circuit 1264 (BN), harness side.
      Fig 11: Checking Circuit 1264 (BN) For An Open Between The RCM And The First Row Passenger Side Impact Sensor
      G03946372Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J20.
    • No  : REPAIR circuit 1264 (BN). GO to  J54.
  20. J20 CHECK CIRCUIT 1263 (WH) FOR A SHORT TO CIRCUIT 1264 (BN) BETWEEN THE RCM AND THE FIRST ROW PASSENGER SIDE IMPACT SENSOR
    • Measure the resistance between first row passenger side impact sensor C3211 pin 2, circuit 1263 (WH), harness side and pin 1, circuit 1264 (BN), harness side.
      Fig 12: Checking Circuit 1263 (WH) For A Short To Circuit 1264 (BN) Between RCM And First Row Passenger Side Impact Sensor
      G03946379Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 1,000,000 ohms?
    • Yes  : GO to J21.
    • No  : REPAIR short between circuit 1263 (WH) and circuit 1264 (BN). GO to  J54.
  21. J21 CHECK THE FIRST ROW PASSENGER SIDE IMPACT SENSOR
    • Connect: RCM C310a.
    • Connect: RCM C310b.
    • Install a known good first row passenger side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Were any faults flagged against the first row passenger side impact sensor?
    • Yes  : INSTALL the original first row passenger side impact sensor. GO to  J52.
    • No  : Fault corrected. GO to  J54.
  22. J22 INSPECT THE SECOND ROW DRIVER SIDE IMPACT SENSOR MOUNTING, MOUNTING BRACKET AND MOUNTING SURFACE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Inspect the second row driver side impact sensor mounting and make sure that the retaining bolts are fully seated and tightened correctly.
    • Remove the second row driver side impact sensor.
    • Visually inspect the second row driver side impact sensor, mounting bracket and mounting surface for damage, corrosion or dirt.
    • Was a significant amount of corrosion or dirt found, the second row driver side impact sensor mounting bracket attached to the mounting surface incorrectly or were the impact sensor bolts not fully seated and tightened correctly?
    • Yes  : CLEAN, TIGHTEN the bolts or REPAIR the mounting surface as necessary. REINSTALL the second row driver side impact sensor. GO to  J54.
    • No  : GO to J23.
  23. J23 INSTALL THE SECOND ROW DRIVER SIDE IMPACT SENSOR AND CARRY OUT THE ON-DEMAND SELF TEST
    • Clean and repair the mounting surface as necessary.
    • Clean the second row driver side impact sensor mounting bolts.
    • Install the second row driver side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J24.
    • No  : Fault corrected. GO to  J54.
  24. J24 CHECK THE SECOND ROW DRIVER SIDE IMPACT SENSOR GROUND CIRCUIT 1262A (BN/LG) FOR HIGH RESISTANCE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Second Row Driver Side Impact Sensor C3210.
    • Measure the resistance between second row driver side impact sensor C3210 pin 1, circuit 1262A (BN/LG), harness side and the second row driver side impact sensor case ground.
      Fig 13: Checking Second Row Driver Side Impact Sensor Ground Circuit 1262A (BN/LG) For High Resistance
      G03946374Courtesy of FORD MOTOR CO.
    • Is the resistance less than 10 ohms?
    • Yes  : GO to  J26.
    • No  : GO to J25.
  25. J25 CLEAN THE SECOND ROW DRIVER SIDE IMPACT SENSOR MOUNTING SURFACE AND CARRY OUT THE ON-DEMAND SELF TEST
    • Remove the second row driver side impact sensor.
    • Clean and repair the mounting surface as necessary.
    • Clean the second row driver side impact sensor mounting bolts.
    • Install the second row driver side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J26.
    • No  : Fault corrected. GO to  J54.
  26. J26 CHECK CIRCUIT 1261A (WH/LG) AND CIRCUIT 1262A (BN/LG) FOR A SHORT TO BATTERY BETWEEN THE SECOND ROW DRIVER SIDE IMPACT SENSOR AND THE RCM
    • Yes  : GO to J27.
    • No  : REPAIR circuit 1261A (WH/LG) or circuit 1262A (BN/LG). GO to  J54.
  27. J27 CHECK CIRCUIT 1261A (WH/LG) AND CIRCUIT 1262A (BN/LG) FOR A SHORT TO GROUND BETWEEN THE SECOND ROW DRIVER SIDE IMPACT SENSOR AND THE RCM
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Measure the resistance between second row driver side impact sensor C3210 pin 1, circuit 1261A (WH/LG), harness side and ground; and between pin 2, circuit 1262A (BN/LG), harness side and ground.
      Fig 15: Checking Circuit 1261A (WH/LG) And Circuit 1262A (BN/LG) For A Short To Ground Between Second Row Driver Side Impact Sensor And RCM
      G03881041Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 1,000,000 ohms?
    • Yes  : GO to J28.
    • No  : REPAIR circuit 1261A (WH/LG) or circuit 1262A (BN/LG). GO to  J54.
  28. J28 CHECK CIRCUIT 1261A (WH/LG) FOR AN OPEN BETWEEN THE RCM AND THE SECOND ROW DRIVER SIDE IMPACT SENSOR
    • Measure the resistance between RCM C310b pin 13, circuit 1261A (WH/LG), harness side and second row driver side impact sensor C3210 pin 2, circuit 1261A (WH/LG), harness side.
      Fig 16: Checking Circuit 1261A (WH/LG) For An Open Between The RCM And The Second Row Driver Side Impact Sensor
      G03932957Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J29.
    • No  : REPAIR circuit 1261A (WH/LG). GO to  J54.
  29. J29 CHECK CIRCUIT 1262A (BN/LG) FOR AN OPEN BETWEEN THE RCM AND THE SECOND ROW DRIVER SIDE IMPACT SENSOR
    • Measure the resistance between RCM C310b pin 14, circuit 1262A (BN/LG), harness side and second row driver side impact sensor C3210 pin 1, circuit 1262A (BN/LG), harness side.
      Fig 17: Checking Circuit 1262A (BN/LG) For An Open Between The RCM And The Second Row Driver Side Impact Sensor
      G03932958Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J30.
    • No  : REPAIR circuit 1262A (BN/LG). GO to  J54.
  30. J30 CHECK CIRCUIT 1261A (WH/LG) FOR A SHORT TO CIRCUIT 1262A (BN/LG) BETWEEN THE RCM AND THE SECOND ROW DRIVER SIDE IMPACT SENSOR
    • Measure the resistance between second row driver side impact sensor C3210 pin 2, circuit 1261A (WH/LG), harness side and pin 1, circuit 1262A (BN/LG), harness side.
      Fig 18: Measuring Resistance Across Connector Terminals
      G03946379Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 1,000,000 ohms?
    • Yes  : GO to J31.
    • No  : REPAIR circuit 1261A (WH/LG) or circuit 1262A (BN/LG). GO to  J54.
  31. J31 CHECK THE SECOND ROW DRIVER SIDE IMPACT SENSOR
    • Connect: RCM C310a.
    • Connect: RCM C310b.
    • Install a known good second row driver side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Were any faults flagged against the second row driver side impact sensor?
    • Yes  : INSTALL the original second row driver side impact sensor. GO to  J52.
    • No  : Fault corrected. GO to  J54.
  32. J32 INSPECT THE SECOND ROW PASSENGER SIDE IMPACT SENSOR MOUNTING, MOUNTING BRACKET AND MOUNTING SURFACE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Inspect the second row passenger side impact sensor mounting and make sure that the retaining bolts are fully seated and tightened correctly.
    • Remove the second row passenger side impact sensor.
    • Visually inspect the second row passenger side impact sensor, mounting bracket and mounting surface for damage, corrosion or dirt.
    • Was a significant amount of corrosion or dirt found, the second row passenger side impact sensor mounting bracket attached to the mounting surface incorrectly or were the impact sensor bolts not fully seated and tightened correctly?
    • Yes  : CLEAN, TIGHTEN the bolts or REPAIR the mounting surface as necessary. REINSTALL the second row passenger side impact sensor. GO to  J54.
    • No  : GO to J33.
  33. J33 INSTALL THE SECOND ROW PASSENGER SIDE IMPACT SENSOR AND CARRY OUT THE ON-DEMAND SELF TEST
    • Clean and repair the mounting surface as necessary.
    • Clean the second row passenger side impact sensor mounting bolts.
    • Install the second row passenger side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J34.
    • No  : Fault corrected. GO to  J54.
  34. J34 CHECK THE SECOND ROW PASSENGER SIDE IMPACT SENSOR GROUND CIRCUIT 1264A (BN) FOR HIGH RESISTANCE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Second Row Passenger Side Impact Sensor C3212.
    • Measure the resistance between second row passenger side impact sensor C3212 pin 1, circuit 1264A (BN), harness side and the second row passenger side impact sensor case ground.
      Fig 19: Measuring Resistance Between Second Row Passenger Side Impact Sensor And Second Row Passenger Side Impact Sensor Case Ground
      G03946374Courtesy of FORD MOTOR CO.
    • Is the resistance less than 10 ohms?
    • Yes  : GO to  J36.
    • No  : GO to J35.
  35. J35 CLEAN THE SECOND ROW PASSENGER SIDE IMPACT SENSOR MOUNTING SURFACE AND CARRY OUT THE ON-DEMAND SELF TEST
    • Remove the second row passenger side impact sensor.
    • Clean and repair the mounting surface as necessary.
    • Clean the second row passenger side impact sensor mounting bolts.
    • Install the second row passenger side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J36.
    • No  : Fault corrected. GO to  J54.
  36. J36 CHECK CIRCUIT 1263A (WH) AND CIRCUIT 1264A (BN) FOR A SHORT TO VOLTAGE BETWEEN THE SECOND ROW PASSENGER SIDE IMPACT SENSOR AND THE RCM
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Second Row Driver Side Impact Sensor C3212.
    • Disconnect: RCM C310a.
    • Disconnect: RCM C310b.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Key in ON position.
    • Measure the voltage between second row passenger side impact sensor C3212 pin 2, circuit 1263A (WH), harness side and ground; and between pin 1, circuit 1264A (BN), harness side and ground.
      Fig 20: Checking Circuit 1263A (WH) And Circuit 1264A (BN) For A Short To Voltage Between Second Row Passenger Side Impact Sensor And RCM
      G03881040Courtesy of FORD MOTOR CO.
    • Are the voltages less than 0.2 volt?
    • Yes  : GO to J37.
    • No  : REPAIR circuit 1263A (WH) or circuit 1264A (BN). GO to  J54.
  37. J37 CHECK CIRCUIT 1263A (WH) AND CIRCUIT 1264A (BN) FOR A SHORT TO GROUND BETWEEN THE SECOND ROW PASSENGER SIDE IMPACT SENSOR AND THE RCM
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Measure the resistance between second row passenger side impact sensor 3060 pin 2, circuit 1263A (WH), harness side and ground; and between pin 1, circuit 1264A (BN), harness side and ground.
      Fig 21: Checking Circuit 1263A (WH) And Circuit 1264A (BN) For A Short To Ground Between Second Row Passenger Side Impact Sensor And RCM
      G03881041Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 1,000,000 ohms?
    • Yes  : GO to J38.
    • No  : REPAIR circuit 1263A (WH) or 1264A (BN). GO to  J54.
  38. J38 CHECK CIRCUIT 1263A (WH) FOR AN OPEN BETWEEN THE RCM AND THE SECOND ROW PASSENGER SIDE IMPACT SENSOR
    • Measure the resistance between RCM C310b pin 15, circuit 1263A (WH), harness side and second row passenger side impact sensor C3212 pin 2, circuit 1263A (WH), harness side.
      Fig 22: Check Circuit 1263A (WH) For An Open Between RCM And Second Row Passenger Side Impact Sensor
      G03932962Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J39.
    • No  : REPAIR circuit 1263A (WH). GO to  J54.
  39. J39 CHECK CIRCUIT 1264A (BN) FOR AN OPEN BETWEEN THE RCM AND THE SECOND ROW PASSENGER SIDE IMPACT SENSOR
    • Measure the resistance between RCM C310b pin 16, circuit 1264A (BN), harness side and second row passenger side impact sensor C3212 pin 1, circuit 1264A (BN), harness side.
      Fig 23: Checking Circuit 1264A (BN) For An Open Between RCM And Second Row Passenger Side Impact Sensor
      G03932963Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J40.
    • No  : REPAIR circuit 1264A (BN). GO to  J54.
  40. J40 CHECK CIRCUIT 1263A (WH) FOR A SHORT TO CIRCUIT 1264A (BN) BETWEEN THE RCM AND THE SECOND ROW PASSENGER SIDE IMPACT SENSOR
    • Measure the resistance between second row passenger side impact sensor C3212 pin 2, circuit 1263A (WH), harness side and pin 1, circuit 1264A (BN), harness side.
      Fig 24: Measuring Resistance Across Connector Terminals
      G03946379Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 1,000,000 ohms?
    • Yes  : GO to J41.
    • No  : REPAIR circuit 1263A (WH) and circuit 1264A (BN). GO to  J54.
  41. J41 CHECK THE SECOND ROW PASSENGER SIDE IMPACT SENSOR
    • Connect: RCM C310a.
    • Connect: RCM C310b.
    • Install a known good second row passenger side impact sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Were any faults flagged against the second row passenger side impact sensor?
    • Yes  : INSTALL the original second row passenger side impact sensor. GO to  J52.
    • No  : Fault corrected. GO to  J54.
  42. J42 INSPECT THE FRONT IMPACT SEVERITY SENSOR MOUNTING, MOUNTING BRACKET AND MOUNTING SURFACE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Inspect the front impact severity sensor mounting and make sure that the retaining bolts are fully seated and tightened correctly.
    • Remove the front impact severity sensor. Refer to FRONT IMPACT SEVERITY SENSOR .
    • Visually inspect the front impact severity sensor, mounting bracket and mounting surface for damage, corrosion or dirt.
    • Was a significant amount of corrosion or dirt found, the front impact severity sensor mounting bracket attached to the mounting surface incorrectly or were the front impact severity sensor bolts not fully seated and tightened correctly?
    • Yes  : CLEAN, TIGHTEN bolts or REPAIR the mounting surface as necessary. REINSTALL the front impact severity sensor. GO to  J54.
    • No  : GO to J43.
  43. J43 INSTALL THE FRONT IMPACT SEVERITY SENSOR AND CARRY OUT THE ON-DEMAND SELF TEST
    • Clean and repair the mounting surface as necessary.
    • Clean the front impact severity sensor mounting bolts.
    • Install the front impact severity sensor. Refer to FRONT IMPACT SEVERITY SENSOR .
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J44.
    • No  : Fault corrected. GO to  J54.
  44. J44 CHECK THE FRONT IMPACT SEVERITY SENSOR GROUND CIRCUIT 618 (VT/LG) FOR HIGH RESISTANCE
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Front Impact Severity Sensor C177.
    • Measure the resistance between front impact severity sensor C177 pin 1, circuit 618 (VT/LG), harness side and the front impact severity sensor case ground.
      Fig 25: Checking Front Impact Severity Sensor Ground Circuit 618 (VT/LG) For High Resistance
      G03946386Courtesy of FORD MOTOR CO.
    • Is the resistance less than 10 ohms?
    • Yes  : GO to  J46.
    • No  : GO to J45.
  45. J45 CLEAN THE FRONT IMPACT SEVERITY SENSOR MOUNTING SURFACE AND CARRY OUT THE ON-DEMAND SELF-TEST
    • Remove the front impact severity sensor. Refer to FRONT IMPACT SEVERITY SENSOR .
    • Clean and repair the mounting surface as necessary.
    • Clean the front impact severity sensor mounting bolts.
    • Install the front impact severity sensor. Refer to FRONT IMPACT SEVERITY SENSOR .
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : GO to J46.
    • No  : Fault corrected. GO to  J54.
  46. J46 CHECK CIRCUIT 617 (PK/OG) AND CIRCUIT 618 (VT/LG) FOR A SHORT TO VOLTAGE BETWEEN THE RCM AND THE FRONT IMPACT SEVERITY SENSOR
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Front Impact Severity Sensor C177.
    • Disconnect: RCM C310a.
    • Disconnect: RCM C310b.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Key in ON position.
    • Measure the voltage between the front impact severity sensor C177 pin 2, circuit 617 (PK/OG), harness side and ground; and between the front impact severity sensor C177 pin 1, circuit 618 (VT/LG), harness side and ground.
      Fig 26: Check Circuit 617 (PK/OG) And Circuit 618 (VT/LG) For A Short To Voltage Between RCM And Front Impact Severity Sensor
      G03881040Courtesy of FORD MOTOR CO.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Are the voltages less than 0.2 volt?
    • Yes  : GO to J47.
    • No  : REPAIR circuit 617 (PK/OG) or circuit 618 (VT/LG). GO to  J54.
  47. J47 CHECK CIRCUIT 617 (PK/OG) AND CIRCUIT 618 (VT/LG) FOR A SHORT TO GROUND BETWEEN THE RCM AND THE FRONT IMPACT SEVERITY SENSOR
    • Key in OFF position.
    • Depower the system. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Measure the resistance between the front impact severity sensor C177 pin 2, circuit 617 (PK/OG), harness side and ground; and between front impact severity sensor C177 pin 1, circuit 618 (VT/LG), harness side and ground.
      Fig 27: Checking Circuit 617 (PK/OG) And Circuit 618 (VT/LG) For A Short To Ground Between RCM And Front Impact Severity Sensor
      G03881041Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 1,000,000 ohms?
    • Yes  : GO to J48.
    • No  : REPAIR circuit 617 (PK/OG) or circuit 618 (VT/LG). GO to  J54.
  48. J48 CHECK CIRCUIT 617 (PK/OG) FOR AN OPEN BETWEEN THE RCM AND THE FRONT IMPACT SEVERITY SENSOR
    • Measure the resistance between RCM C310b pin 19, circuit 617 (PK/OG), harness side and front impact severity sensor C177 pin 2, circuit 617 (PK/OG), harness side.
      Fig 28: Checking Circuit 617 (PK/OG) For An Open Between RCM And Front Impact Severity Sensor
      G03946389Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J49.
    • No  : REPAIR circuit 617 (PK/OG). GO to  J54.
  49. J49 CHECK CIRCUIT 618 (VT/LG) FOR AN OPEN BETWEEN THE RCM AND THE FRONT IMPACT SEVERITY SENSOR
    • Measure the resistance between RCM C310b pin 20, circuit 618 (VT/LG), harness side and front impact severity sensor C177 pin 1, circuit 618 (VT/LG), harness side.
      Fig 29: Checking Circuit 618 (VT/LG) For An Open Between RCM And Front Impact Severity Sensor
      G03917375Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to J50.
    • No  : REPAIR circuit 618 (VT/LG). GO to  J54.
  50. J50 CHECK CIRCUIT 617 (PK/OG) FOR A SHORT TO CIRCUIT 618 (VT/LG) BETWEEN THE RCM AND THE FRONT IMPACT SEVERITY SENSOR
    • Measure the resistance between front impact severity sensor C177 pin 2, circuit 617 (PK/OG), harness side and pin 1, circuit 618 (VT/LG), harness side.
      Fig 30: Checking Circuit 617 (PK/OG) For A Short To Circuit 618 (VT/LG) Between RCM And Front Impact Severity Sensor
      G03946379Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 1,000,000 ohms?
    • Yes  : GO to J51.
    • No  : REPAIR circuit 617 (PK/OG) and circuit 618 (VT/LG). GO to  J54.
  51. J51 CHECK THE FRONT IMPACT SEVERITY SENSOR
    • Connect: RCM C310a.
    • Connect: RCM C310b.
    • Install a known good front impact severity sensor.
    • Repower the system. Do not  prove out the system at this time. refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Key in ON position.
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Were any faults flagged against the front impact severity sensor?
    • Yes  : INSTALL the original front impact severity sensor. GO to J52.
    • No  : Fault corrected. GO to  J54.
  52. J52 CONFIRM THE RCM FAULT
    NOTE: Make sure all restraint system diagnostic tools, sensor electrical connectors and the RCM electrical connector are connected before carrying out the on-demand self test. If not, erroneous DTCs will be recorded.
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : If a "?" was flagged by the scan tool, CARRY OUT the entire pinpoint test.

      INSTALL a new RCM. REFER to RESTRAINTS CONTROL MODULE (RCM) . GO to  J54.

    • No  : CHECK for causes of the intermittent fault. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition key frequently. REPAIR any intermittent concerns found. GO to  J54.
  53. J53 CHECK FOR AN INTERMITTENT FAULT
    • Key in OFF position.
    • Enter the following diagnostic mode on the diagnostic tool: On-Demand Self Test.
    • Enter the following diagnostic mode on the diagnostic tool: Flag DTC B2296.
    • Was DTC B2296 retrieved during the on-demand self test?
    • Yes  : This is a hard fault. The fault condition is still present. The fault cannot be cleared until it is corrected and the DTC is no longer retrieved during the on-demand self test.

      If a flagged fault of "?" was recorded in Step  J1, multiple faults exist and the entire pinpoint test must be carried out.

      For first row driver side impact (F_D_SEN) sensor with a mounting/communications (COMM) fault, GO to  J2.

      For first row driver side impact sensor (F_S_ SEN) with an internal (INT) fault, INSTALL a new first row driver side impact sensor. REFER to SIDE IMPACT SENSOR - FIRST ROW, B-PILLAR . GO to J54.

      For first row passenger side impact sensor (F_P_ SEN) with a mounting/communications (COMM) fault, GO to  J12.

      For first row passenger side impact sensor (F_P_ SEN) with an internal (INT) fault, INSTALL a new first row passenger side impact sensor. REFER to SIDE IMPACT SENSOR - FIRST ROW, B-PILLAR . GO to J54.

      For second row driver side impact sensor (D_2_SEN) with a mounting/communication (COMM) fault, GO to  J22.

      For second row driver side impact sensor (D_2_ SEN) with an internal (INT) fault, INSTALL a new second row driver side impact sensor. REFER to SIDE IMPACT SENSOR - SECOND ROW, C-PILLAR . GO to J54.

      For second row passenger side impact sensor (P_2_ SEN) with a mounting/communications (COMM) fault, GO to  J32.

      For second row passenger side impact sensor (P_2_SEN) with an internal (INT) fault, INSTALL a new second row passenger side impact sensor. REFER to SIDE IMPACT SENSOR - SECOND ROW, C-PILLAR . GO to J54.

      For front impact severity sensor (FNTJSEN) with a mounting/communications (COMM) fault, GO to  J42.

      For front impact severity sensor (FNT_SEN) with an internal fault (INT) fault, INSTALL a new front impact severity sensor. REFER to FRONT IMPACT SEVERITY SENSOR . GO to J54.

    • No  : VISUALLY INSPECT the affected impact sensor, mounting brackets and mounting surface for damage, corrosion or dirt. INSPECT the wiring, terminals and connectors for damage, corrosion or dirt. CHECK for causes of the intermittent fault.

      ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition key frequently. ACTIVATE other systems in the same wire harness. REPAIR any intermittent concerns found. GO to J54.

  54. J54 CHECK FOR ADDITIONAL DTCs
    • Refer to the continuous DTCs recorded during Step  J1.
    • Were any continuous DTCs retrieved during Step J1?
scientia non olet · About LEMON Manuals
