Section 1192 (Battery, Mounting And Cables)
>>
Removal And Installation
>>
Battery Cables - 4.0L
>>
Notes
Battery Cables - 4.0L: Notes
WARNING:
This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

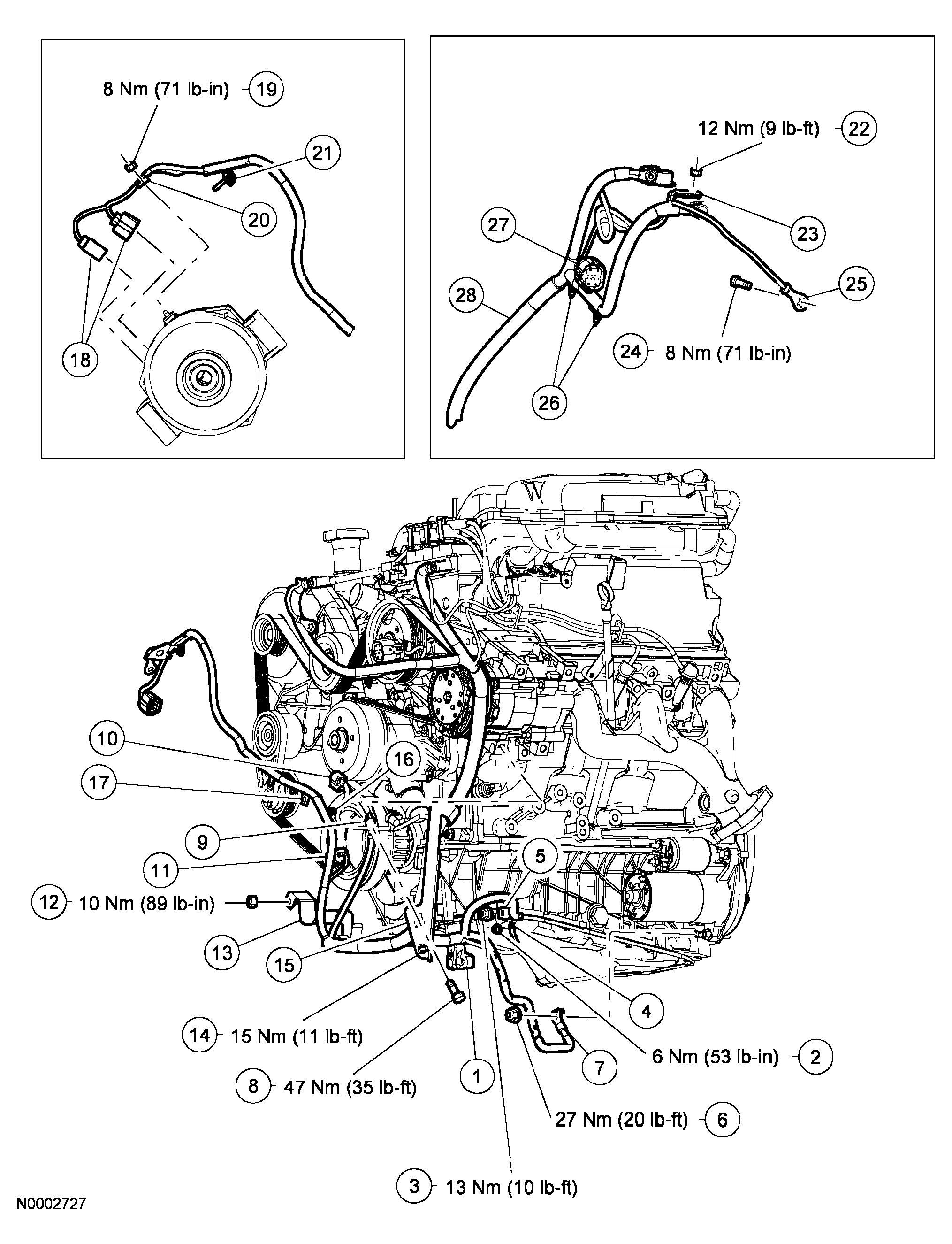

Fig 1: Battery Cables Replacement Components - 4.0L With Torque Specifications
Courtesy of FORD MOTOR CO.

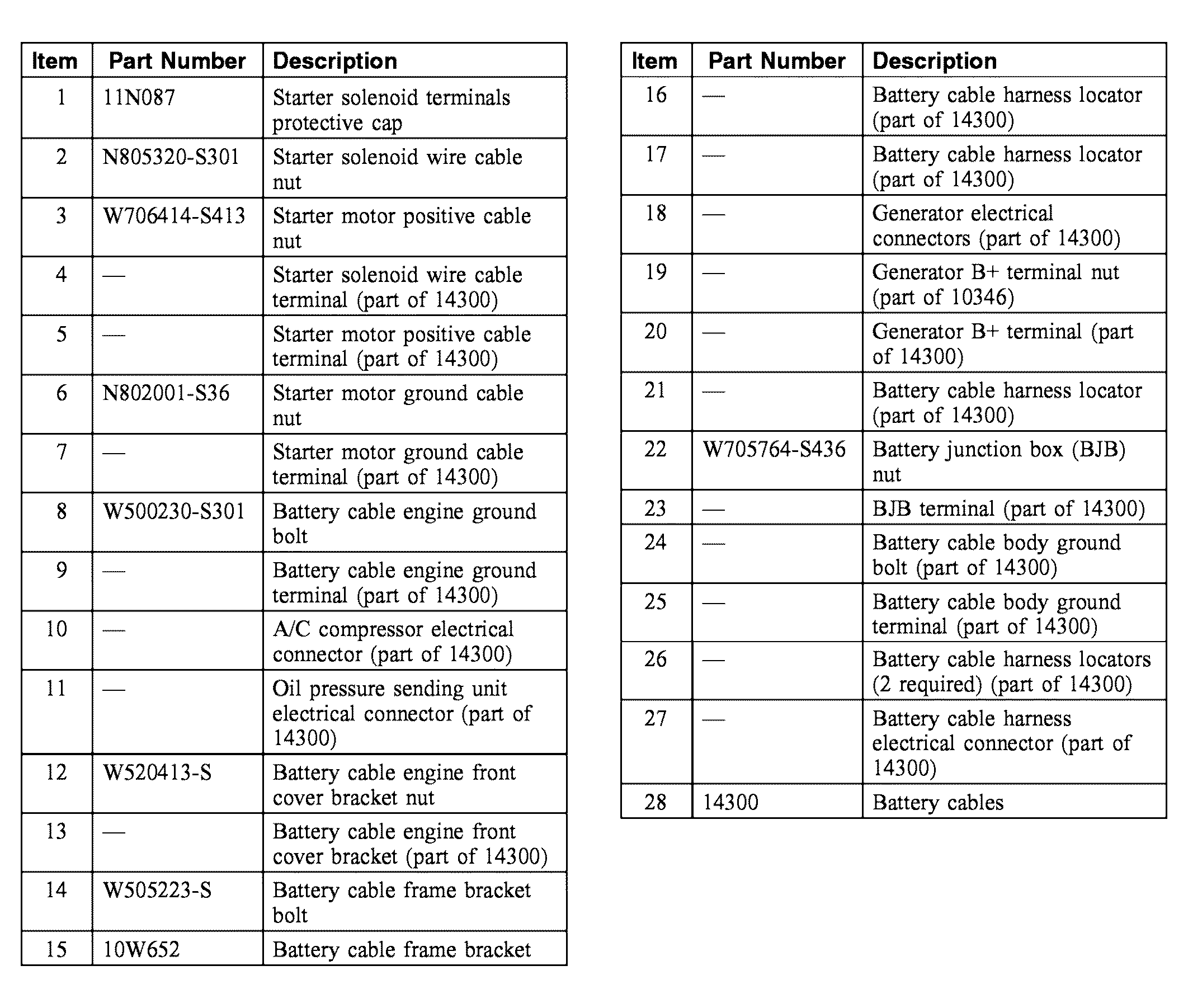

Fig 2: Battery Cables Components Description - 4.0L
Courtesy of FORD MOTOR CO.
