Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Remove the rear door scuff plate.
  2. Remove the C-pillar trim panel. For additional information, refer to C-PILLAR TRIM PANEL .
  3. Remove the D-pillar trim panel. For additional information, refer to D-PILLAR TRIM PANEL .
  4. Remove the liftgate scuff plate trim panel.

    5. Vehicles with third row seating

  5. Remove the third row seat. For additional information, refer to SEATING .
  6. Position the liftgate opening weatherstrip aside.

    7. All vehicles

  7. If equipped, remove the luggage assembly cover.
  8. Remove the stowage compartment doors.

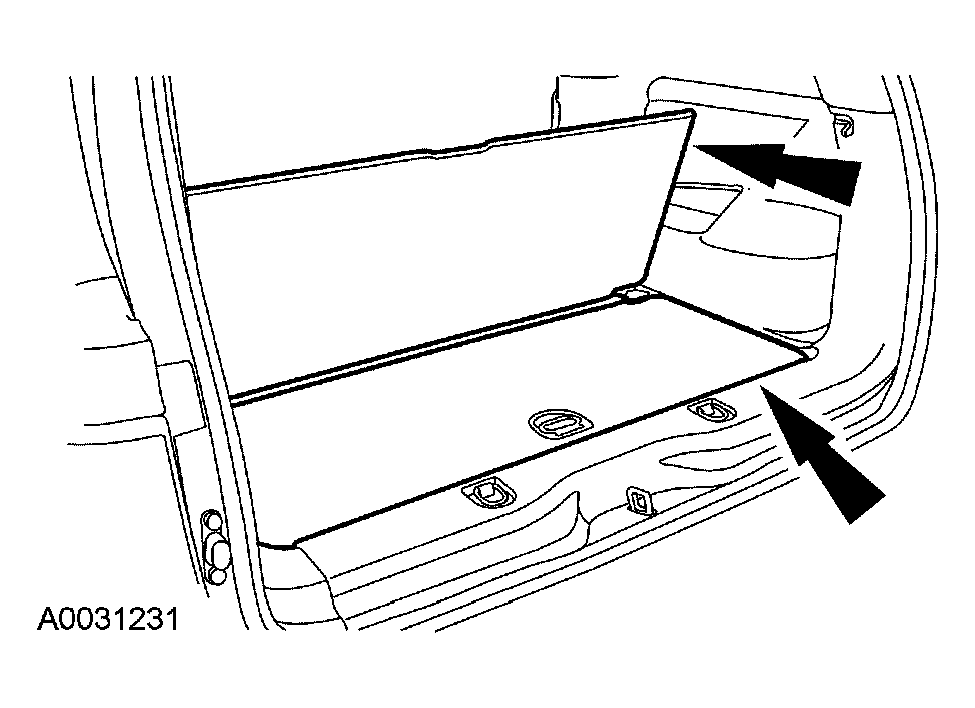

    Fig 1: Removing Stowage Compartment Doors
    G03945906Courtesy of FORD MOTOR CO.
    9. NOTE: RH side shown, LH side similar.
    Fig 2: Removing Stowage Compartment Assembly
    G03945907Courtesy of FORD MOTOR CO.
  9. Remove the stowage compartment assembly.
  10. Position the carpet aside.
  11. Remove the brackets.
    • Remove the bolts.

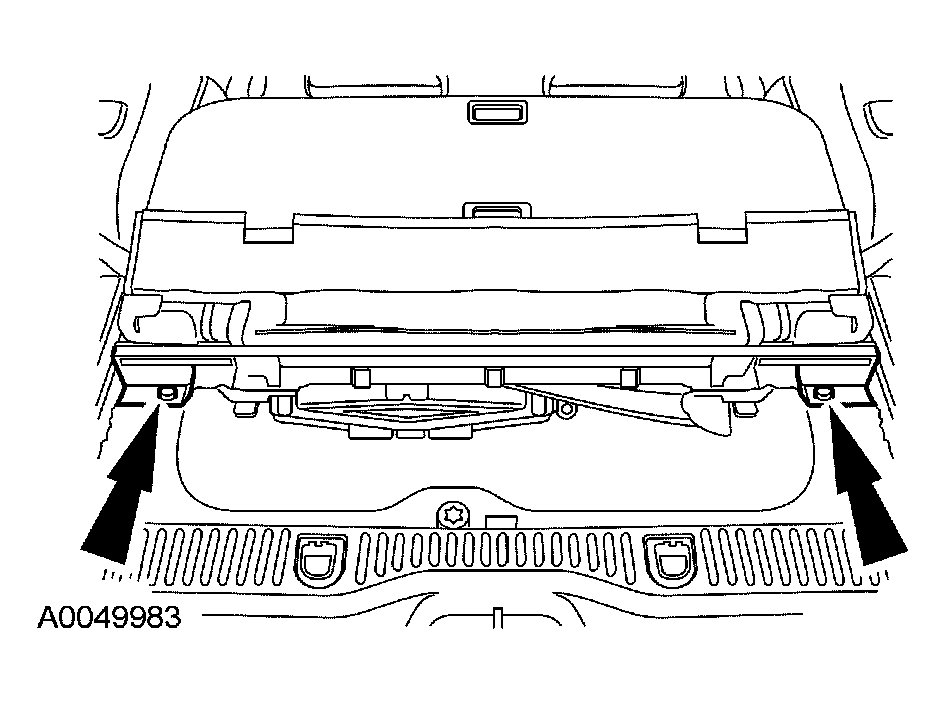

      Fig 3: Removing Brackets
      G03945908Courtesy of FORD MOTOR CO.
  12. Remove the rear quarter trim panel.
  13. To install, reverse the removal procedure.
