Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Remove the front door scuff plate.

    2. Passenger side

  2. Remove the cowl trim panel.

    3. Driver side

  3. Remove the hood release lever.
    1. Remove the screw.
    2. Remove the hood release lever.

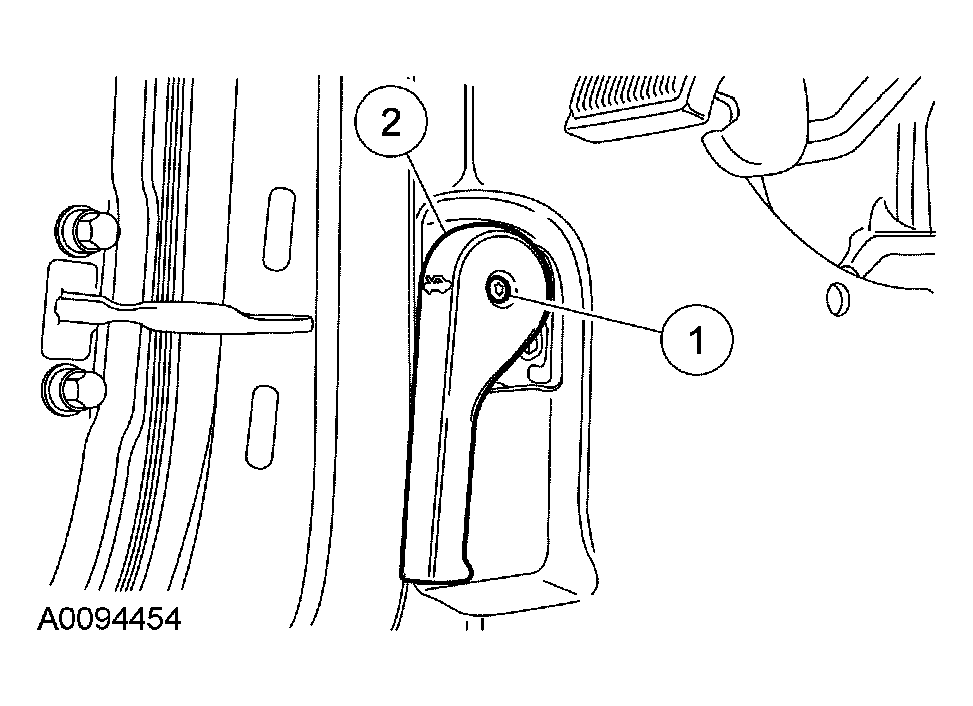

      Fig 1: Removing Hood Release Lever
      G03945909Courtesy of FORD MOTOR CO.
  4. Remove the cowl trim panel.
    1. Remove the pin-type retainer.
    2. Remove the cowl trim panel.

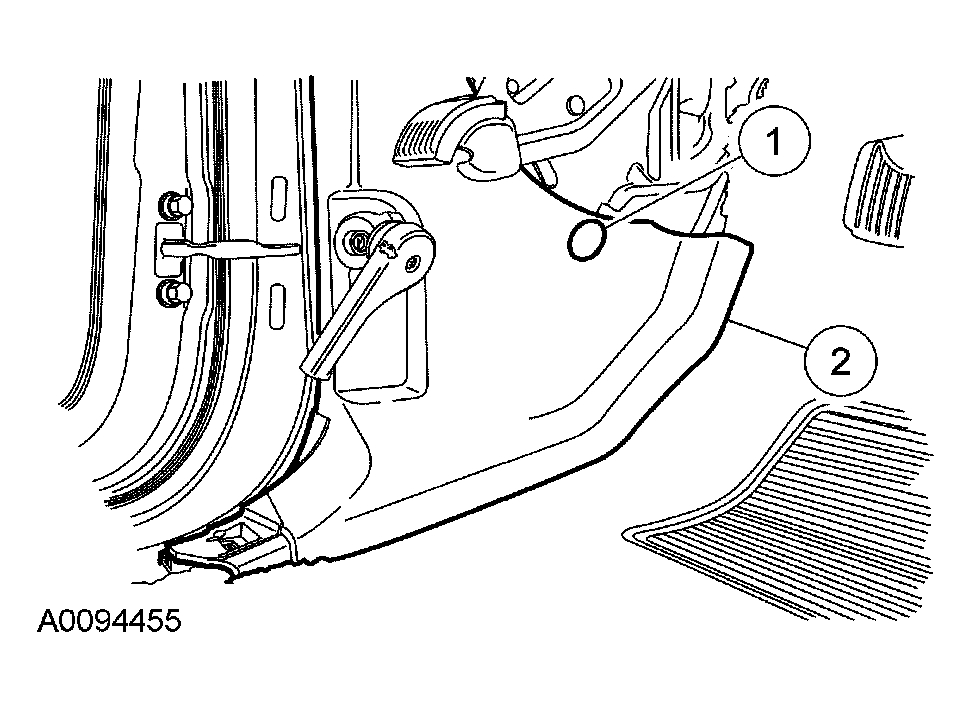

      Fig 2: Removing Cowl Trim Panel
      G03945910Courtesy of FORD MOTOR CO.

    5. All vehicles

  5. To install, reverse the removal procedure.
