WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Adjustable pedals are shown, the fixed pedals are similar.

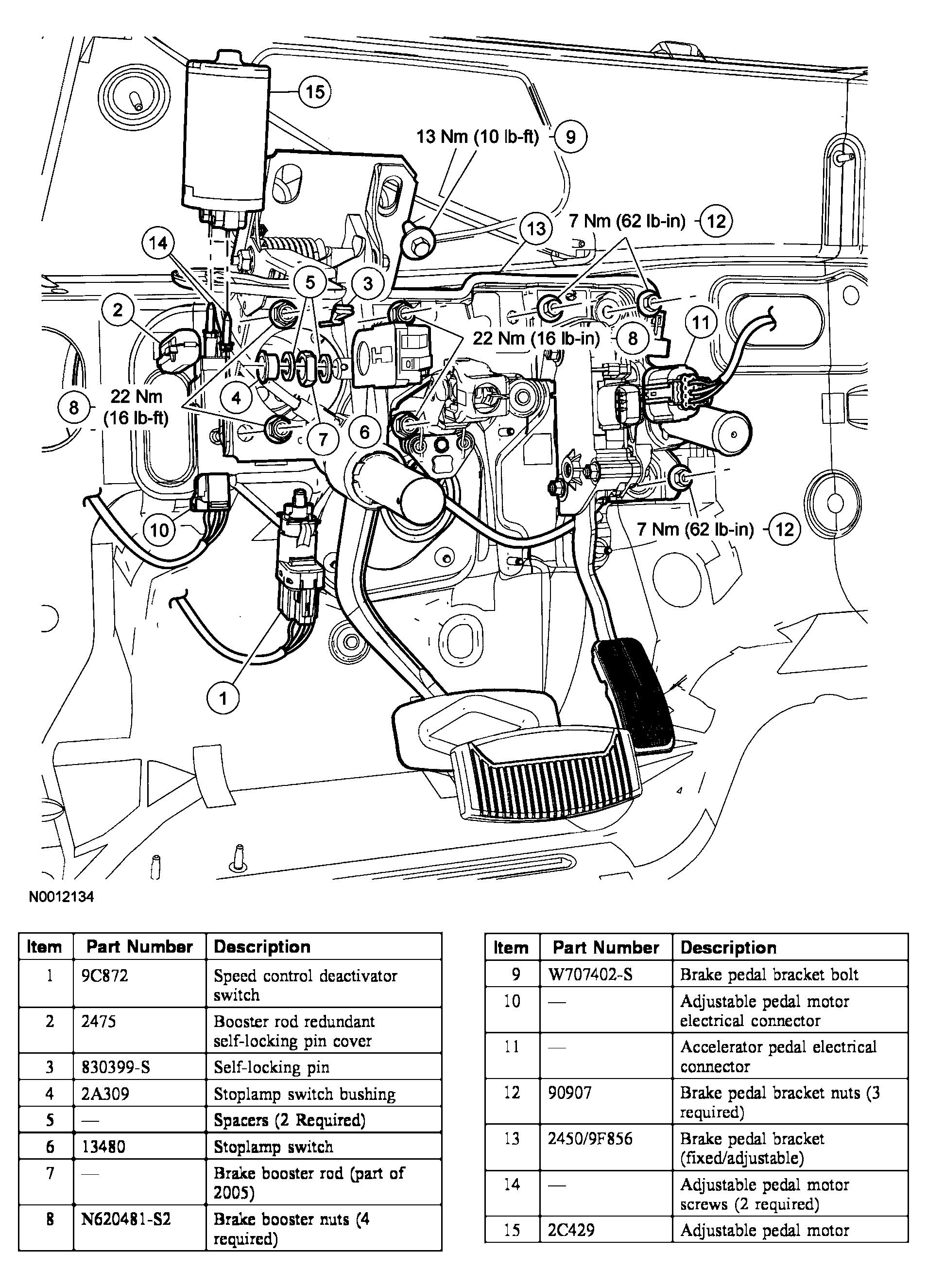

Fig 1: Exploded View Of Brake Pedal And Bracket With Torque Specifications
