Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. For additional information refer to INSTRUMENT CLUSTER .
  2. Unclip and remove the instrument cluster lens.

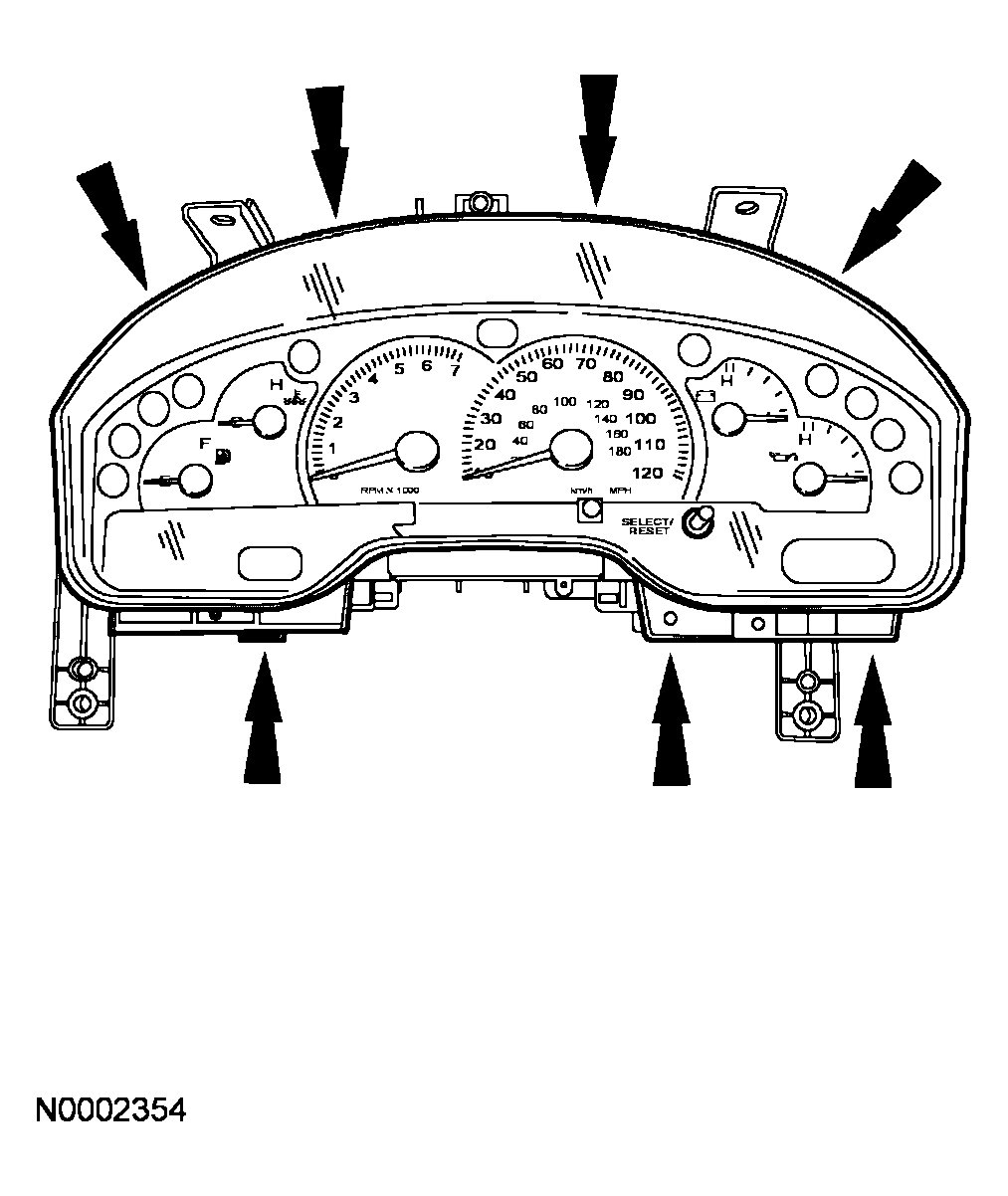

    Fig 1: Removing Instrument Cluster Lens
    G03945390Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
