Special Tool(s)

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATIONS

G03879006
Installer Set, Teflon® Seal 211-D027 (D90P-3517-A) or equivalent
NOTE: 4.6L engine shown, 4.0L engine similar.

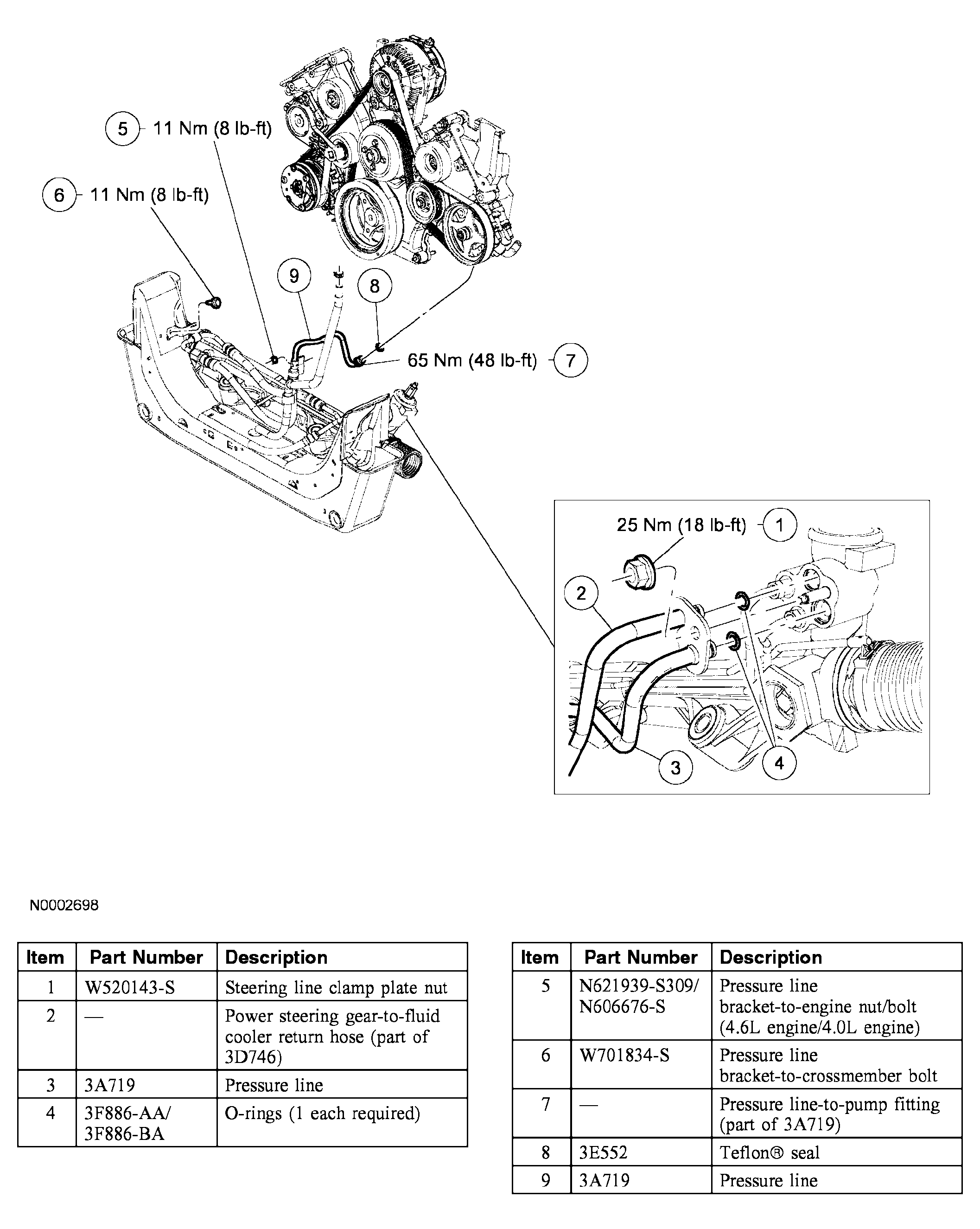

Fig 1: Removal And Installation Of Power Steering Pump To Steering Gear Pressure Line
G03945469Courtesy of FORD MOTOR CO.
