Power Steering Pump Pulley - 4.6L Engine: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the pulley.

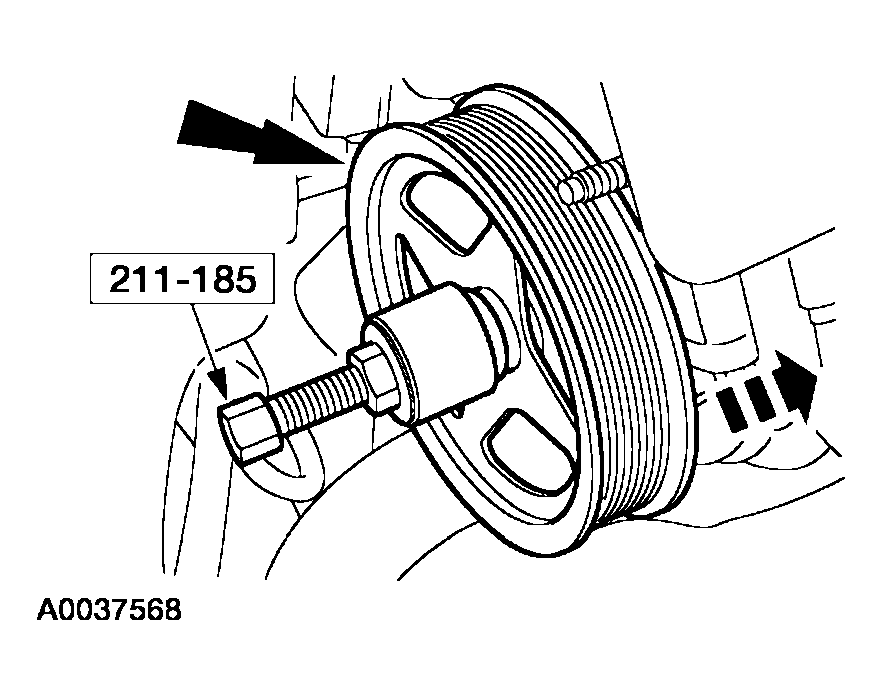

    Fig 1: Installing Pulley Using Special Tool
    G03945467Courtesy of FORD MOTOR CO.
  2. Rotate the tensioner and install the engine accessory drive belt on the power steering pump pulley.
  3. Install the engine air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
