Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer, 2005 Ford Explorer, 2004 Mercury Mountaineer, and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the rear door speaker. For additional information, refer to SPEAKERS .
  3. Remove the interior moulding.
  4. Remove the rear door weather shield.
  5. Remove the 2 rear door glass top run channel assembly bolts.
    • To install, tighten to 12 Nm (9 lb-ft).
  6. Remove the rear door window glass-to-regulator bolt or rivet.
    • Position the rear door window glass as necessary to access the rear door window glass-to-regulator bolt or rivet.
    • To install, tighten the bolt to 7 Nm (62 lb-in) or install a new rivet.
  7. Remove the applique on the rear door.
    • Remove the screws.

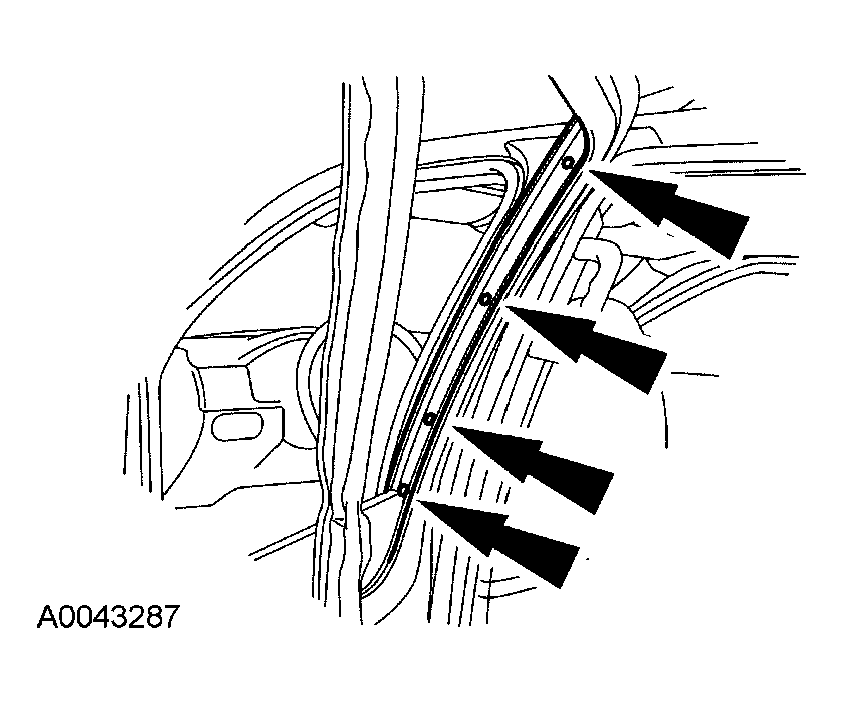

      Fig 1: Removing Applique From Rear Door
      G03946065Courtesy of FORD MOTOR CO.
  8. Remove the rear door window glass.
    • Pull the glass out through the top inboard side of the door.

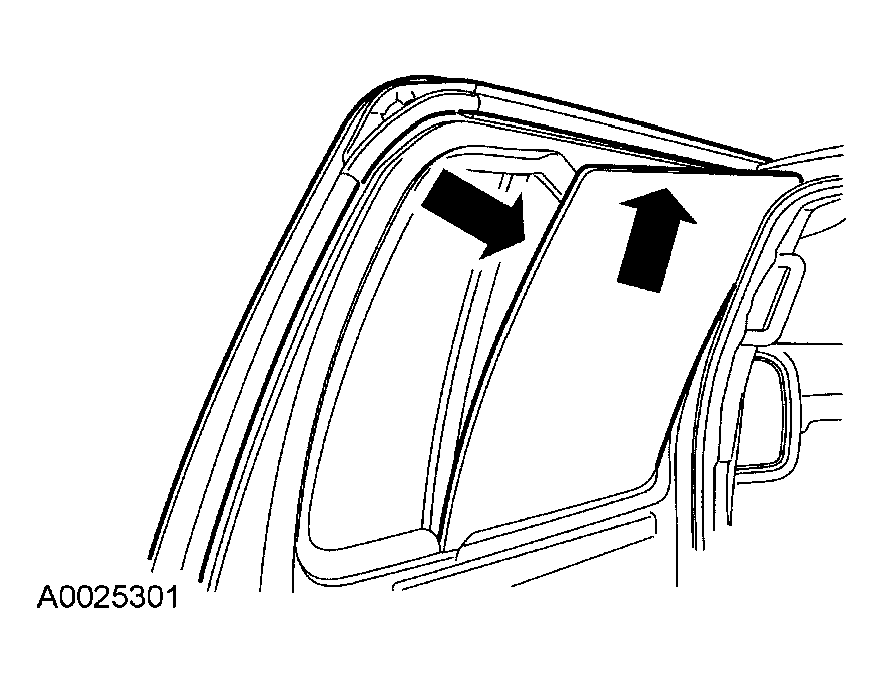

      Fig 2: Removing Rear Door Window Glass
      G03946066Courtesy of FORD MOTOR CO.
  9. To install, reverse the removal procedure.
