Front Door Glass, Frames and Mechanisms - Exploded View

WARNING: This page is about a different car, the 2005 Mercury Mountaineer, 2005 Ford Explorer, 2004 Mercury Mountaineer, and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar.

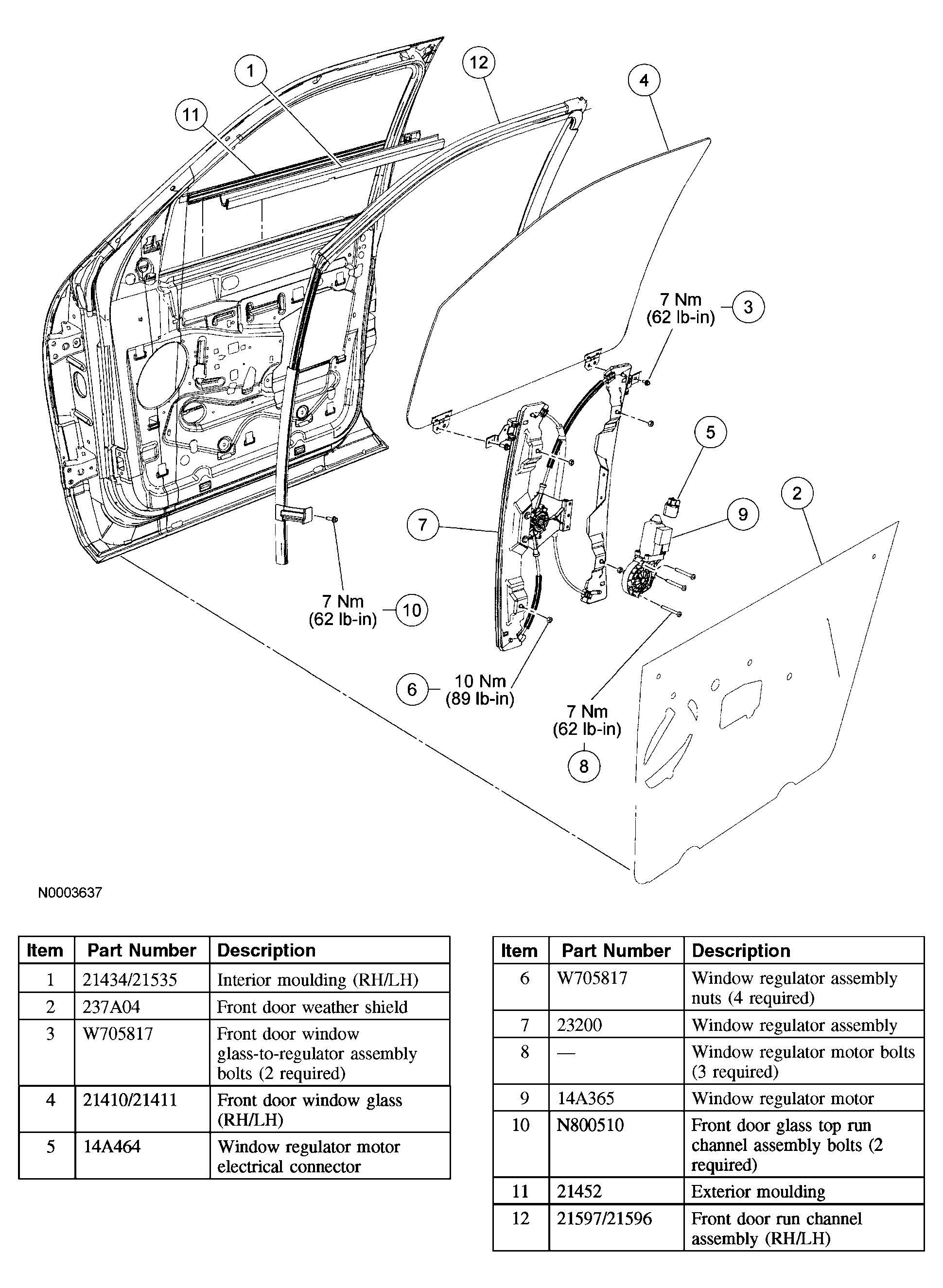

Fig 1: Exploded View Of Front Door Glass, Frames And Mechanisms With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
