Passenger Rear Power Window Motor C803

WARNING: This page is about a different car, the 2005 Mercury Mountaineer, 2005 Ford Explorer, 2004 Mercury Mountaineer, and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

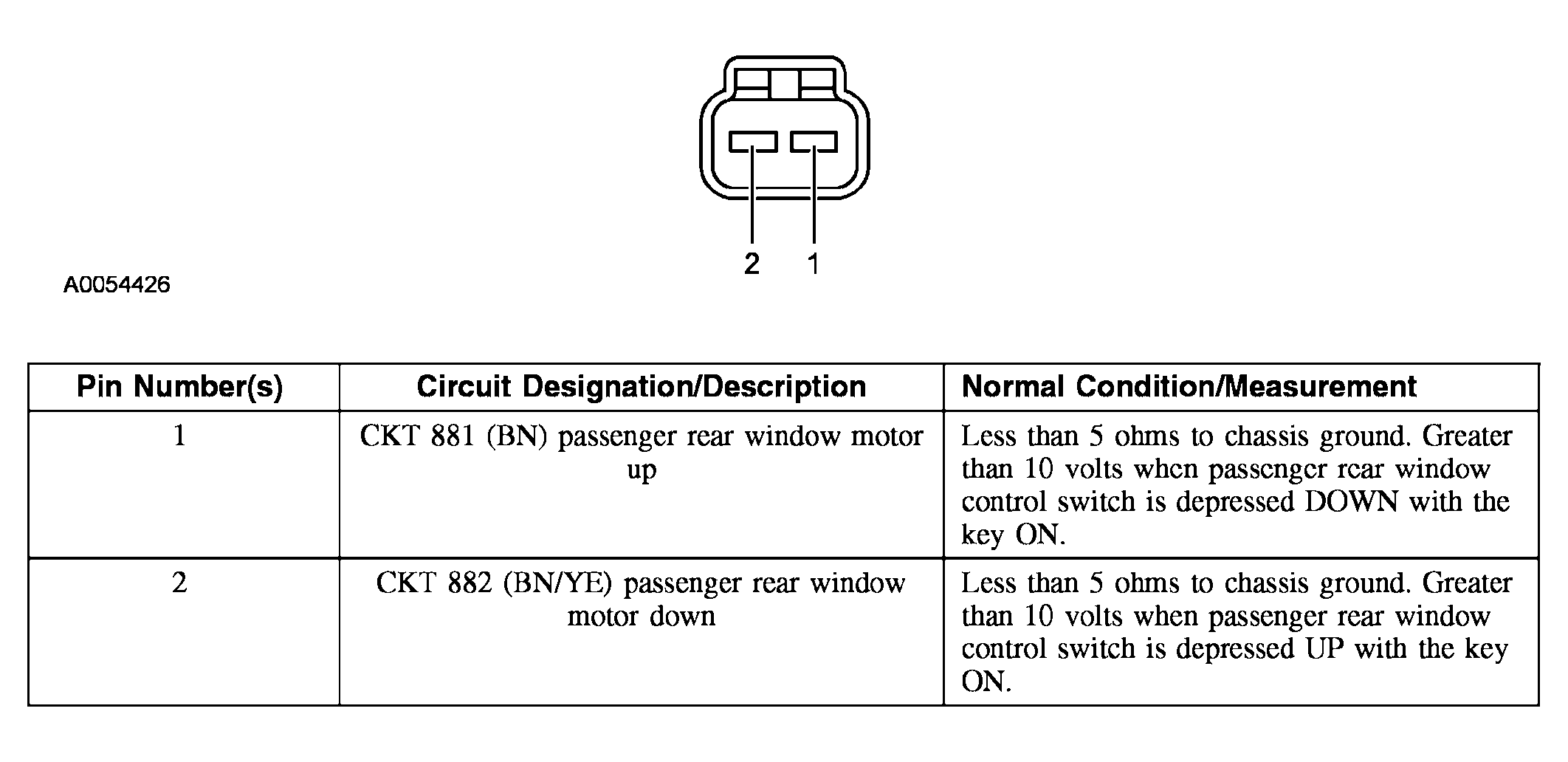

Fig 1: Identifying Passenger Rear Power Window Motor C803 Connector Pins
G03945997Courtesy of FORD MOTOR CO.
