Function Selector Switch C294b - Manual Climate Control (if equipped)

WARNING: This page is about a different car, the 2005 Mercury Mountaineer, 2005 Ford Explorer, 2004 Mercury Mountaineer, and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

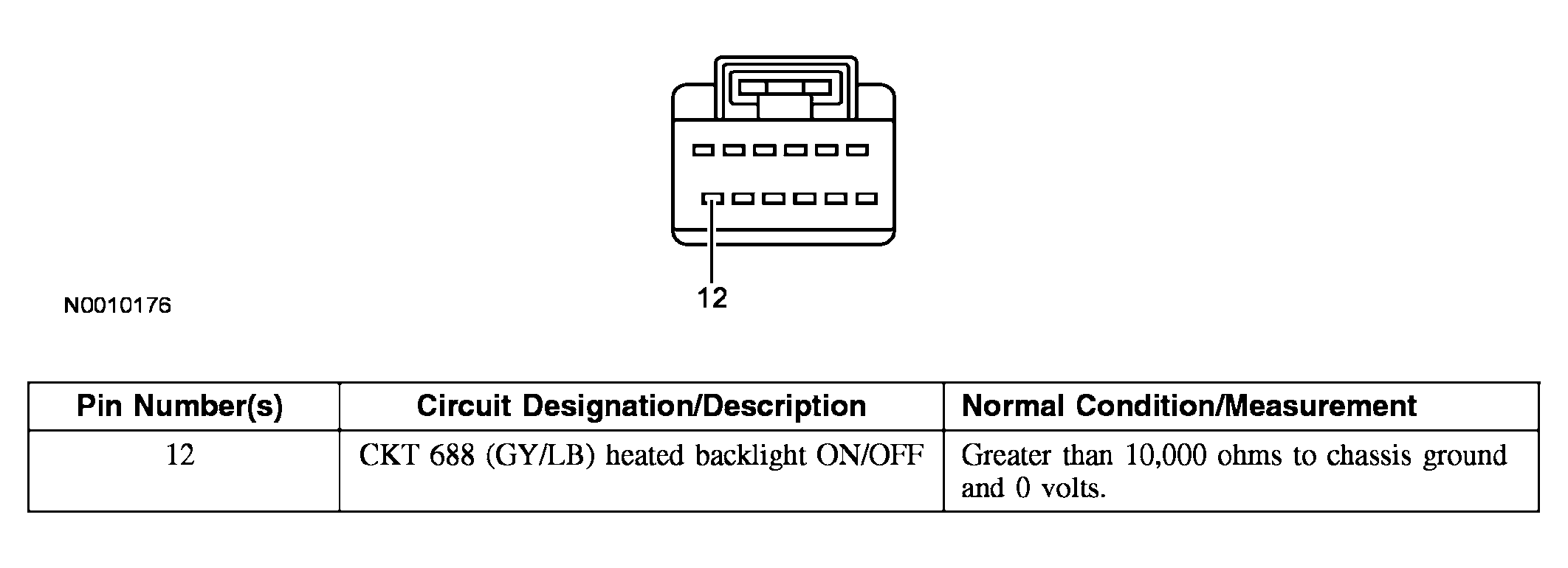

Fig 1: Identifying Function Selector Switch C294b Connector Pins - Manual Climate Control
G03945986Courtesy of FORD MOTOR CO.
