Driver Window Control Switch C504b

WARNING: This page is about a different car, the 2005 Mercury Mountaineer, 2005 Ford Explorer, 2004 Mercury Mountaineer, and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

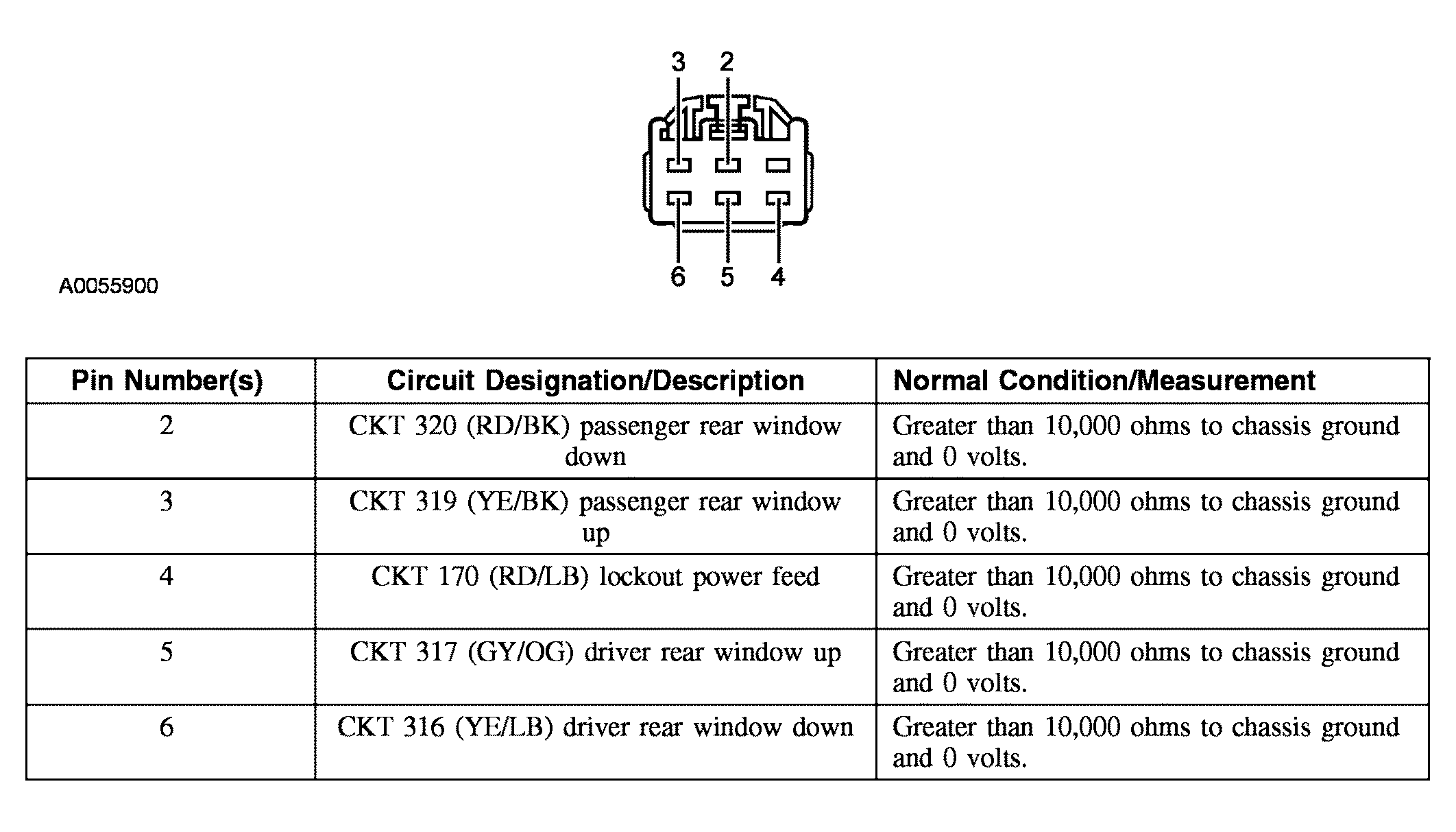

Fig 1: Identifying Driver Window Control Switch C504b Connector Pins
G03945990Courtesy of FORD MOTOR CO.
