Camshaft End Play

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03878636
 Dial Indicator with Bracketry 100-002 (TOOL-4201-C) or equivalent
  1. Remove the roller followers. Refer to the appropriate ENGINE article for the procedure.
  2. Use the special tool to measure camshaft end play.
  3. Position the camshaft to the rear of the cylinder head.
  4. Zero the indicator.
  5. Move the camshaft to the front of the cylinder head. Note and record the camshaft end play.
    • If camshaft end play exceeds specifications, install new camshaft and recheck end play. Refer to the appropriate ENGINE article for the procedure.
    • If camshaft end play exceeds specification after camshaft installation, install a new cylinder head. Refer to the appropriate ENGINE article for the procedure.

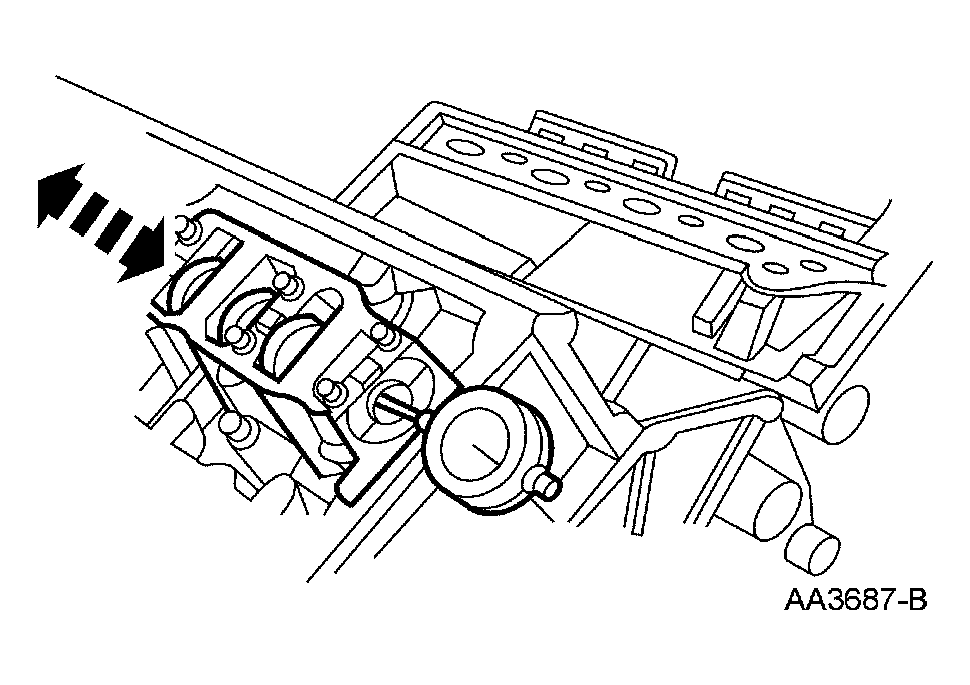

      Fig 1: Using Dial Indicator Gauge With Holding Fixture To Measure Camshaft End Play
      G03885002Courtesy of FORD MOTOR CO.
