Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the vacuum reservoir screw.
  2. Position the vacuum reservoir aside.
  3. Disconnect the blower motor electrical connector.
  4. Remove the 3 blower motor screws.
  5. Remove the blower motor.
  6. Remove the blower motor wheel from the blower motor.
    1. Remove the push clip.
    2. Remove the blower motor wheel.

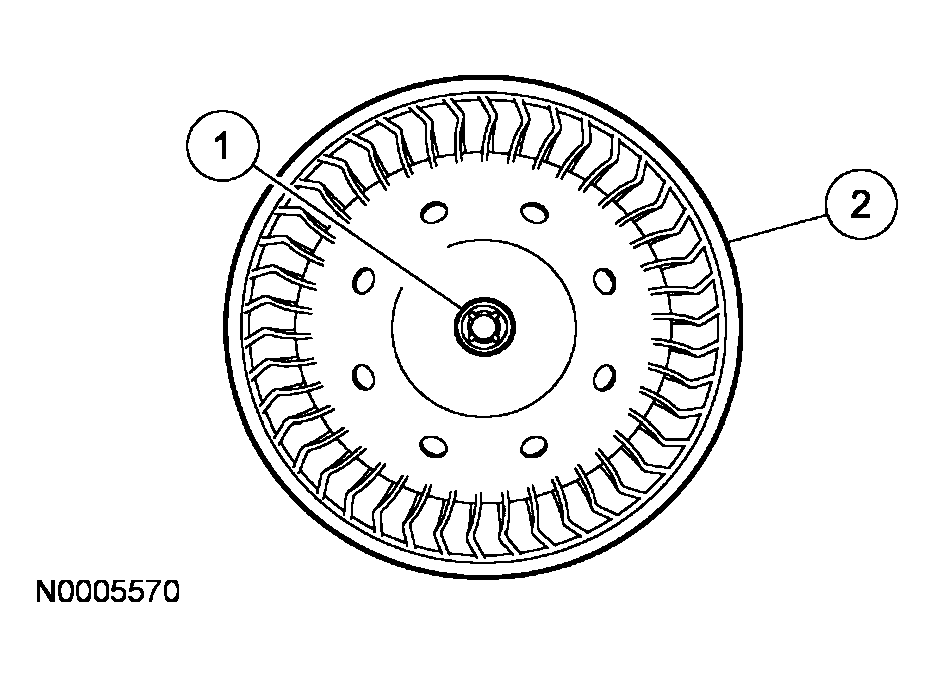

      Fig 1: Removing Blower Motor Wheel
      G03945231Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.
