Tire Pressure Monitoring System Module

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

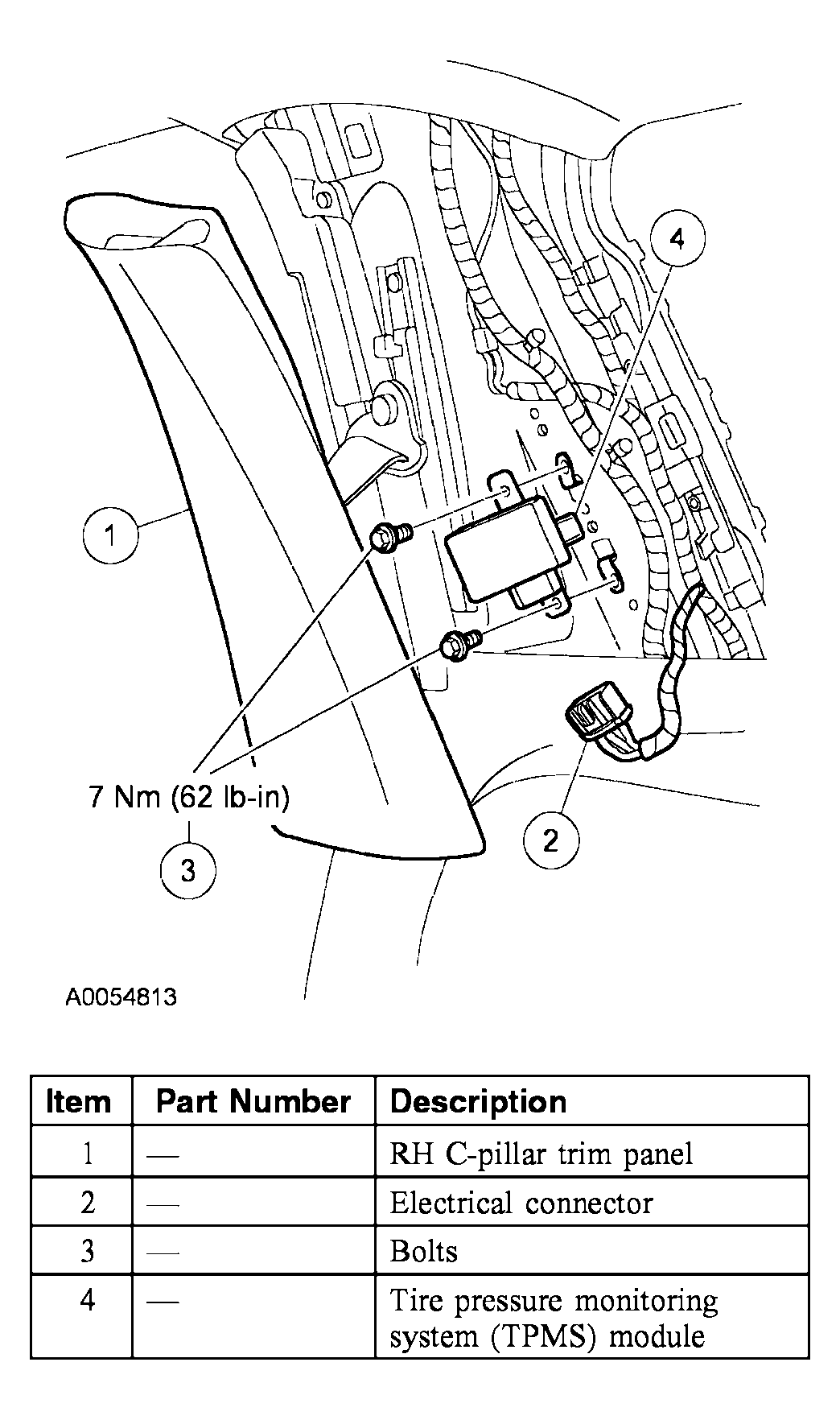

Fig 1: Exploded View Of Tire Pressure Monitoring System Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Detach the RH C-pillar trim panel and position it aside.
Disconnect the electrical connector.
Remove the 2 module bolts.
- To install, tighten to 7 Nm (62 lb-in).
Remove the TPMS module.
To install, reverse the removal procedure.
Reconfigure the TPMS module. For additional information, refer to MODULE CONFIGURATION .
Train the tire pressure sensors. For additional information, refer toSENSOR TRAINING .
Clear any DTCs and carry out the TPMS module self-test.
