Special Tool(s)

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATION

G03927730
Digital Tire Gauge 204-354

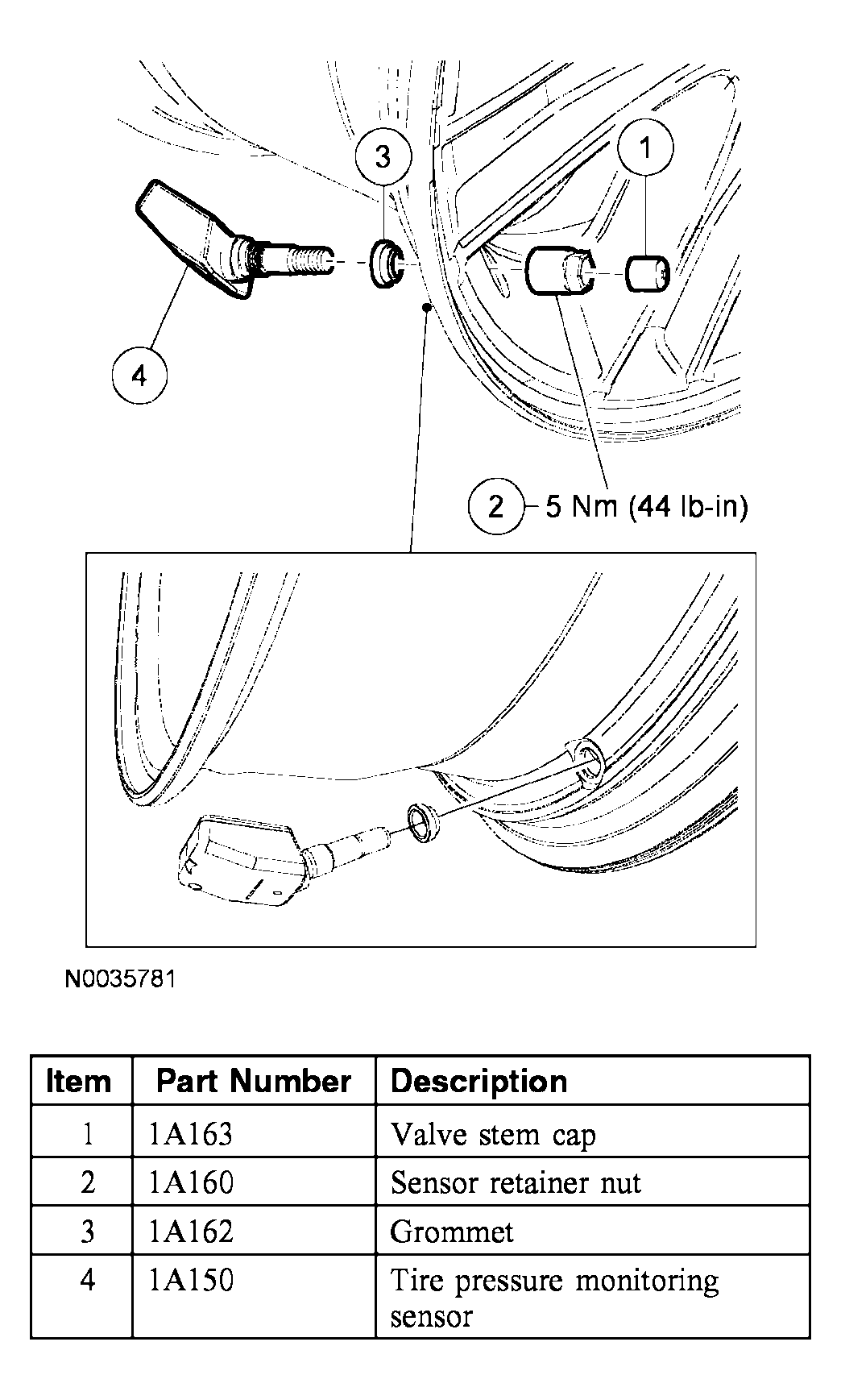

Fig 1: Tire Low Pressure Sensor With Torque Specification
G03944100Courtesy of FORD MOTOR CO.
Fig 2: Precaution Tire Pressure Sensor
G03927723Courtesy of FORD MOTOR CO.
