Torque Specifications
WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Axle Shaft Nut |
214 (290) |
| Differential Bearing Cap Bolts |
38 (51) |
| Drive Pinion Nut |
180 (244) |
| Differential Housing-To-Front Insulator Bracket Bolts |
59 (80) |
| Differential Housing-To-Side Insulator Bracket Bolts |
59 (80) |
| Differential-To-Ring Gear Bolts |
80 (109) |
| Filler Plug |
20 (27) |
| Front Insulator Bracket-To-Subframe Bolt |
85 (115) |
| Lower Ball Joint |
85 (115) |
| Side Insulator Bracket-To-Subframe Bolt |
85 (115) |
| Rear Axle Differential Rear Insulator Bolt |
76 (103) |

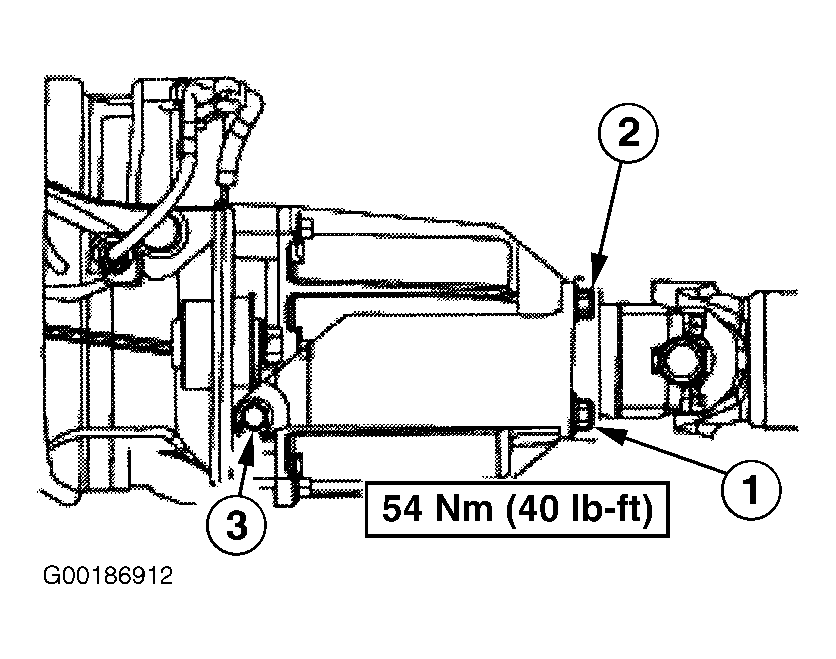

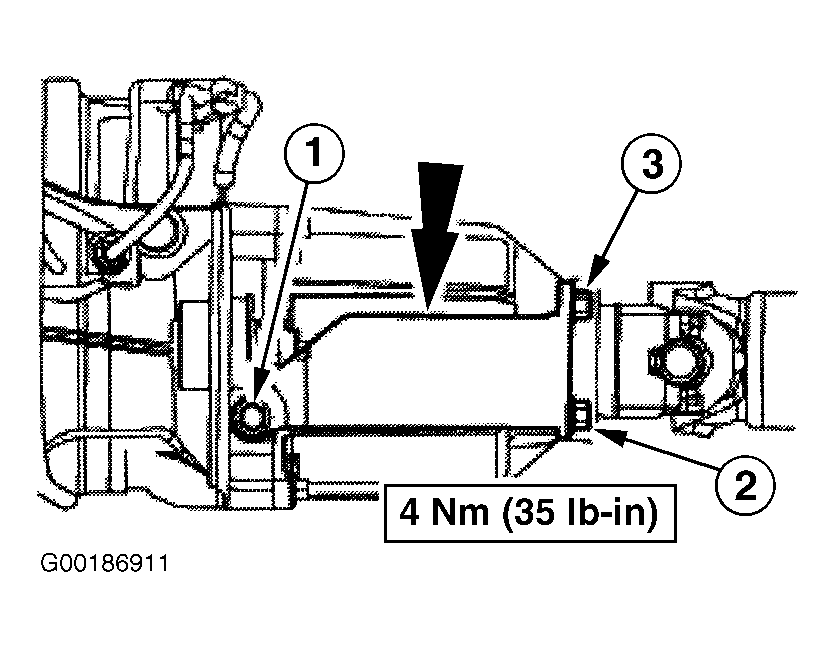

| Rear Differential Mass Damper Bolt |
| Step 1 |
35 (48) |
| Step 2 |
40 (54) |
| Rotary Blade Coupling Bolt |
24 (32) |
| INCH Lbs. (N.m) |
| Drive Pinion Rotational Torque |
| New Bearings |
15-30 (1.7-3.4) |
| Used Bearings |
6-10 (0.68-1.13) |
| Total Turning Torque |
21-40 (2.38-4.53) |
