Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition ON, press the 4x4 HIGH button on the mode select switch (MSS).
With the transmission in the NEUTRAL position, raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
Disconnect the transfer case shift motor harness connector.

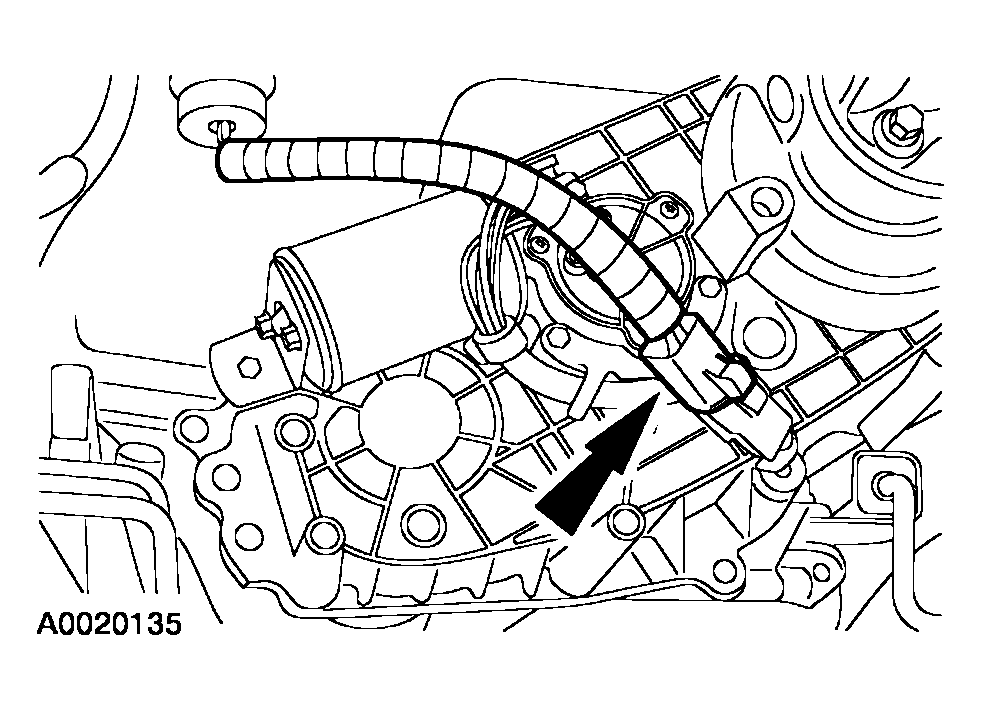

Fig 1: Disconnecting Transfer Case Shift Motor Harness Connector
Courtesy of FORD MOTOR CO.
Remove the bracket bolt and transfer case shift motor mounting bolts and remove the transfer case shift motor.

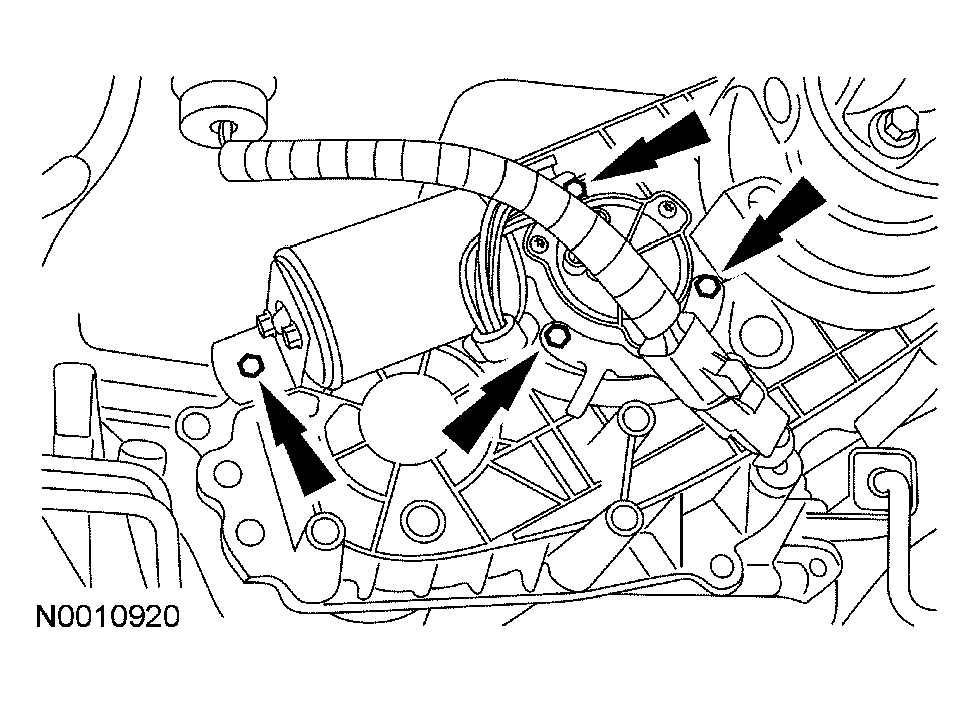

Fig 2: Removing Bracket Bolt And Transfer Case Shift Motor Mounting Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Apply a coat of multi-purpose grease to the transfer case shift motor.
