Transmission - 4x2

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) CHART

G03889235
 Retainer, Torque Converter
307-346 (T97T-7902-A)

    All vehicles

    WARNING: Secure the transmission to the transmission jack with a safety chain. Failure to follow these instructions can result in personal injury.
  1. Secure the transmission to the transmission jack with a safety chain.
    2. NOTE: Rotate the torque converter so that the torque converter paint mark is in the 12 o'clock position.
  2. Raise and position the transmission to the back of the engine.

    3. 4.6L engine

  3. Install the 7 engine-to-transmission retaining bolts.
    • Tighten to 48 Nm (35 lb-ft).

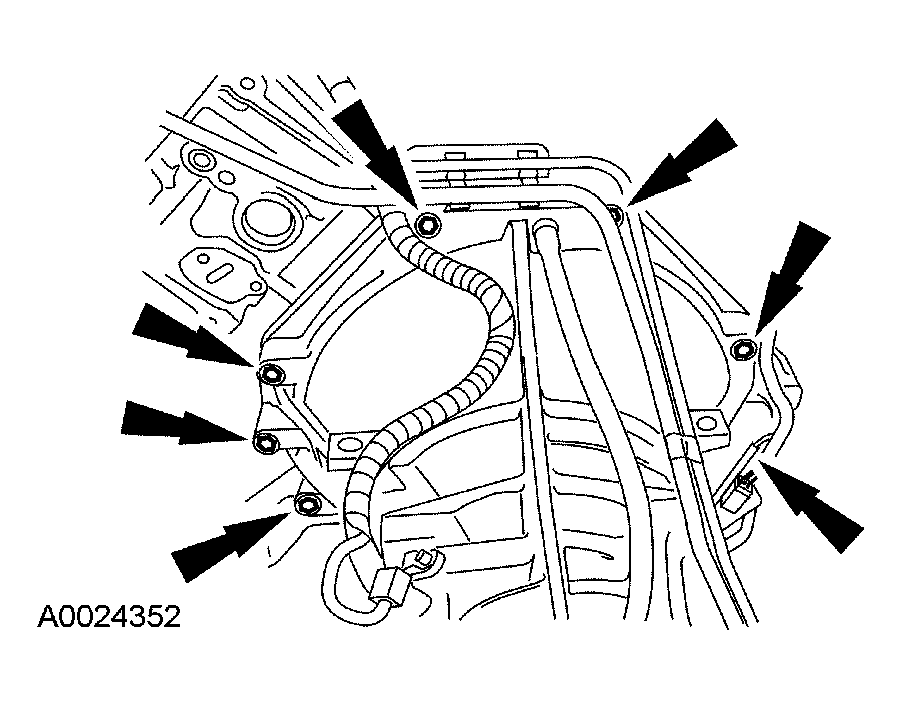

      Fig 1: Locating Engine-To-Transmission Retaining Bolts
      G03947199Courtesy of FORD MOTOR CO.
  4. Install the 4 torque converter nuts.
    • Tighten to 38 Nm (28 lb-ft).

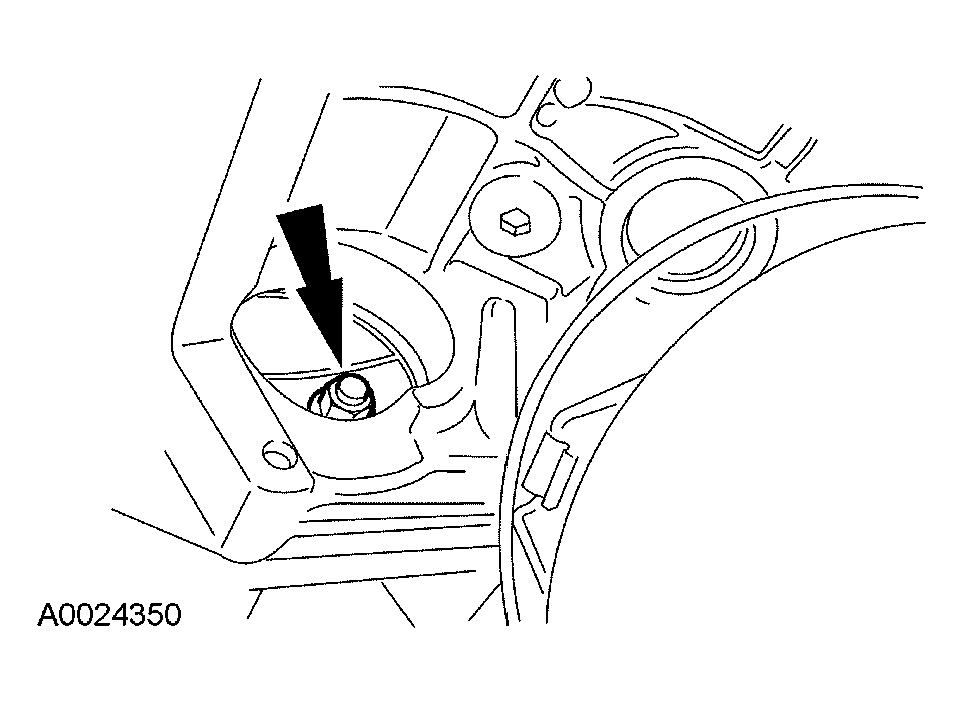

      Fig 2: Installing Torque Converter Nuts
      G03947882Courtesy of FORD MOTOR CO.
  5. Install the access cover.

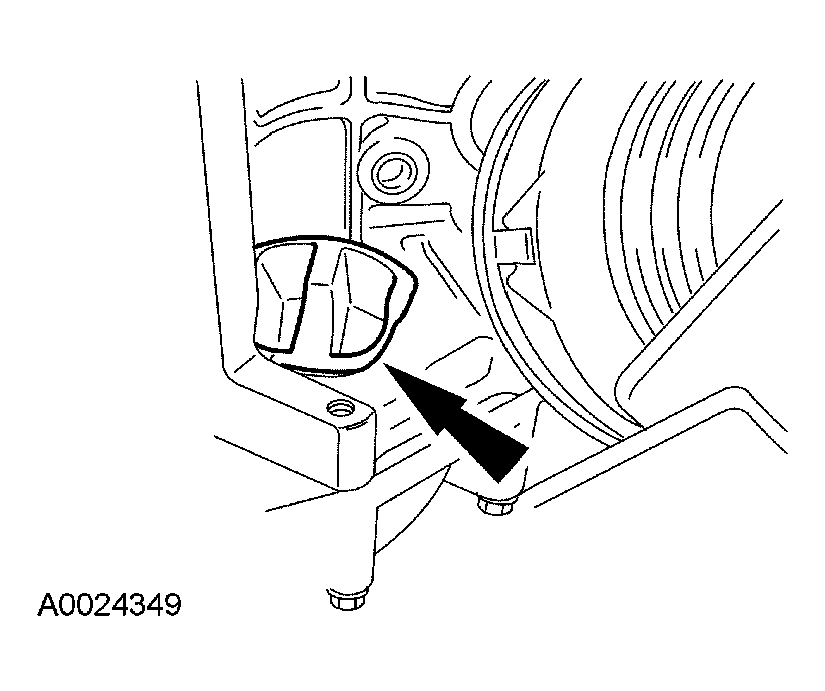

    Fig 3: Installing Access Cover
    G03947881Courtesy of FORD MOTOR CO.
  6. Install the flexplate cover.
    • Tighten to 34 Nm (25 lb-ft).

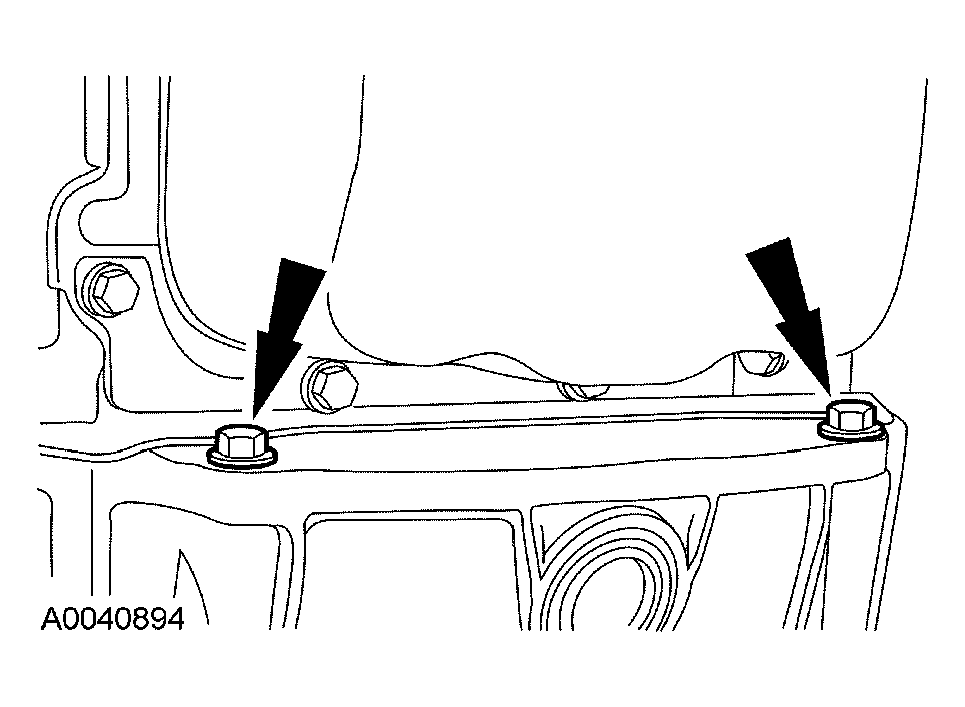

      Fig 4: Installing Flexplate Cover
      G03948778Courtesy of FORD MOTOR CO.
  7. Install the starter.
    • Tighten to 24 Nm (18 lb-ft).

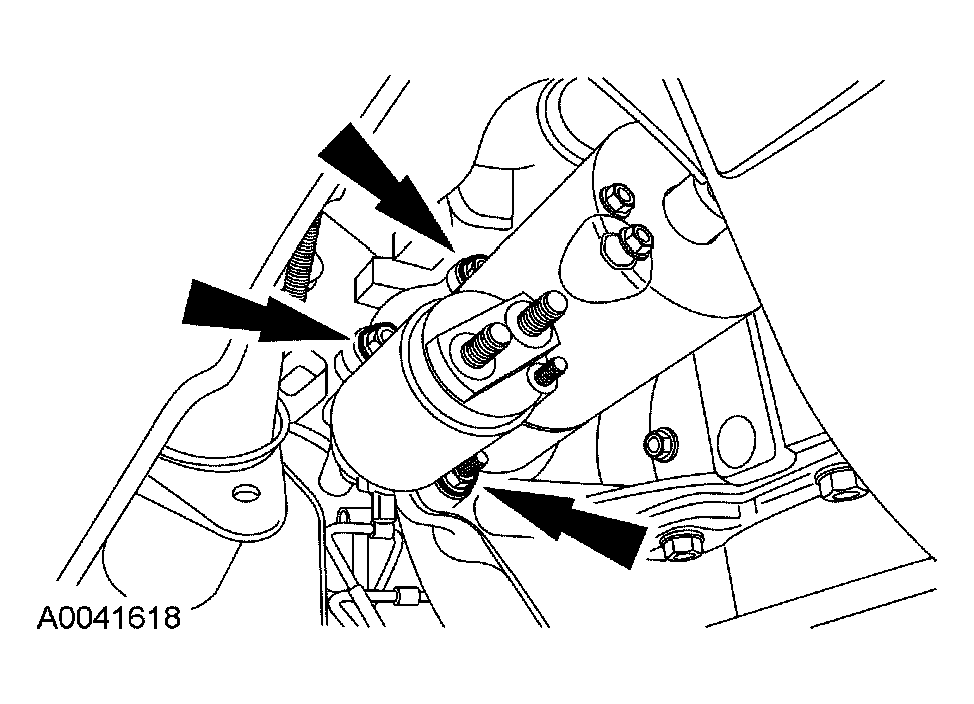

      Fig 5: Installing Starter
      G03985585Courtesy of FORD MOTOR CO.
  8. Install the starter motor electrical connectors.
    • Tighten the cable to 13 Nm (10 lb-ft).
    • Tighten the wire to 6 Nm (53 lb-in).

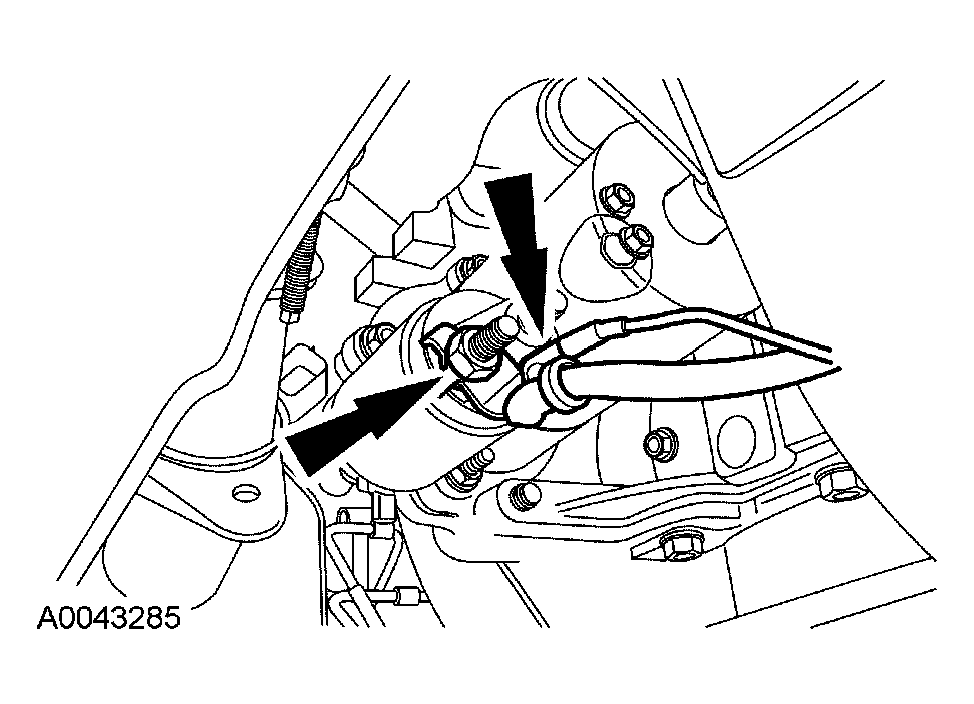

      Fig 6: Installing Starter Motor Electrical Connectors
      G03985586Courtesy of FORD MOTOR CO.
  9. Install the starter motor electrical connector cover.

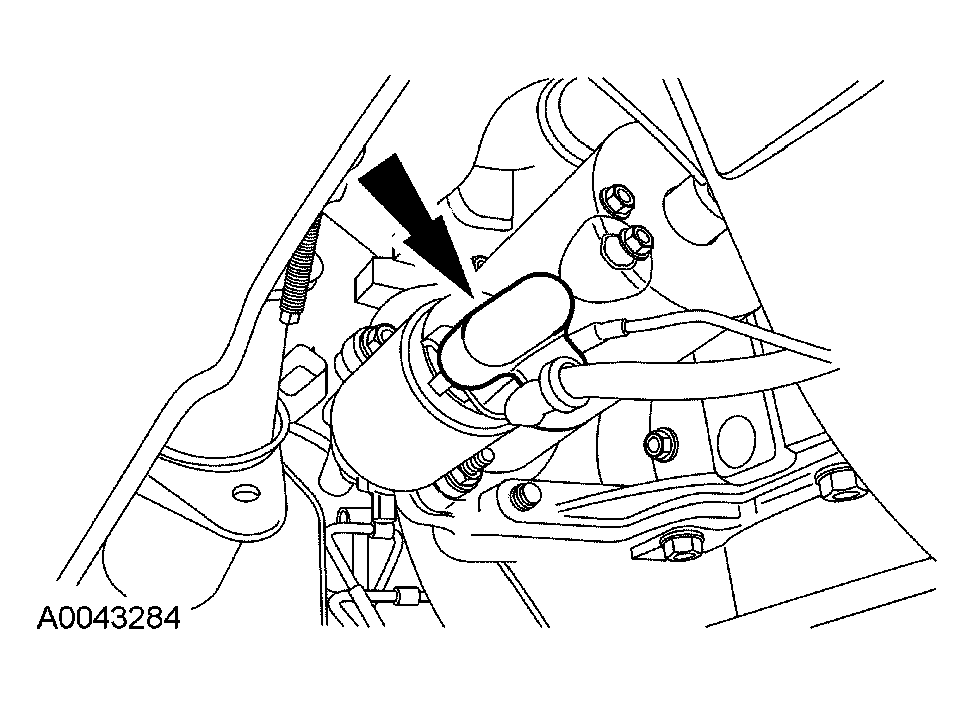

    Fig 7: Installing Starter Motor Electrical Connector Cover
    G03949222Courtesy of FORD MOTOR CO.
    10. NOTE: RH side shown, LH side similar.
  10. Install the front crossmember.
    • Tighten to 70 Nm (52 lb-ft).

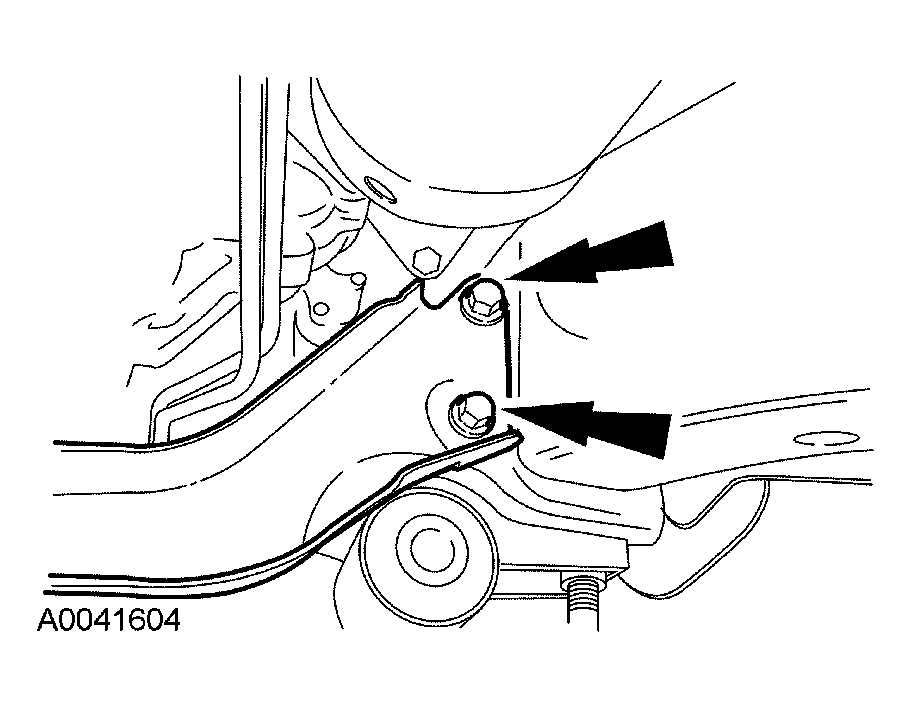

      Fig 8: Installing Front Crossmember
      G03949267Courtesy of FORD MOTOR CO.

    11. 4.0L engine

  11. Position the fuel line bracket in place and install the 6 retaining bolts.
    • Tighten to 48 Nm (35 lb-ft).

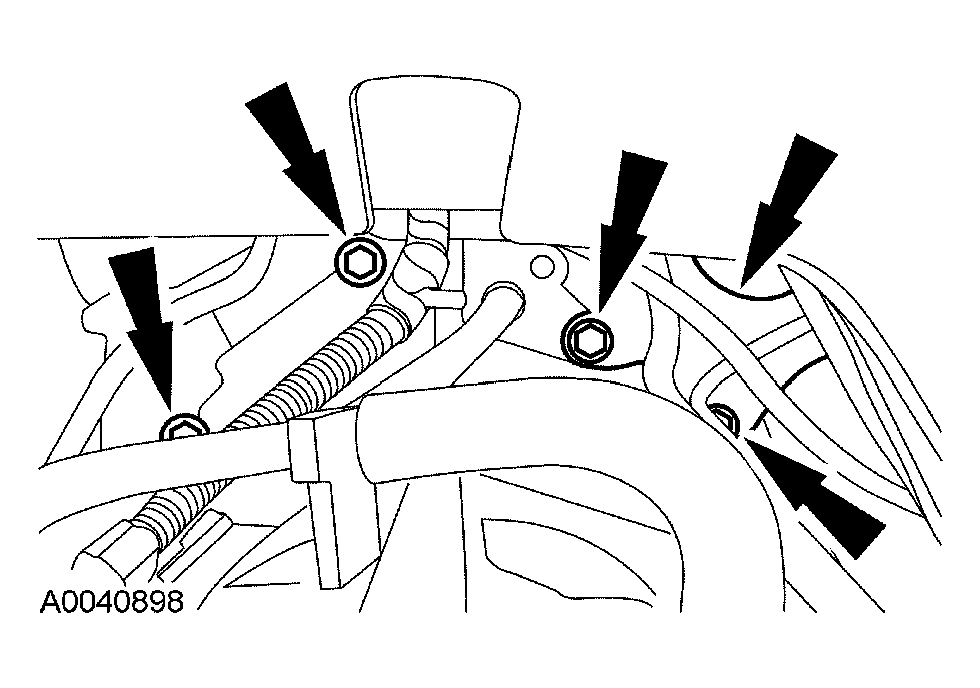

      Fig 9: Positioning Fuel Line Bracket In Place
      G03949224Courtesy of FORD MOTOR CO.
  12. Install the 4 torque converter nuts.
    • Tighten to 38 Nm (28 lb-ft).
      Fig 10: Installing Torque Converter Nuts
      G03948782Courtesy of FORD MOTOR CO.
  13. Install the starter motor.
    • Tighten to 25 Nm (18 lb-ft).

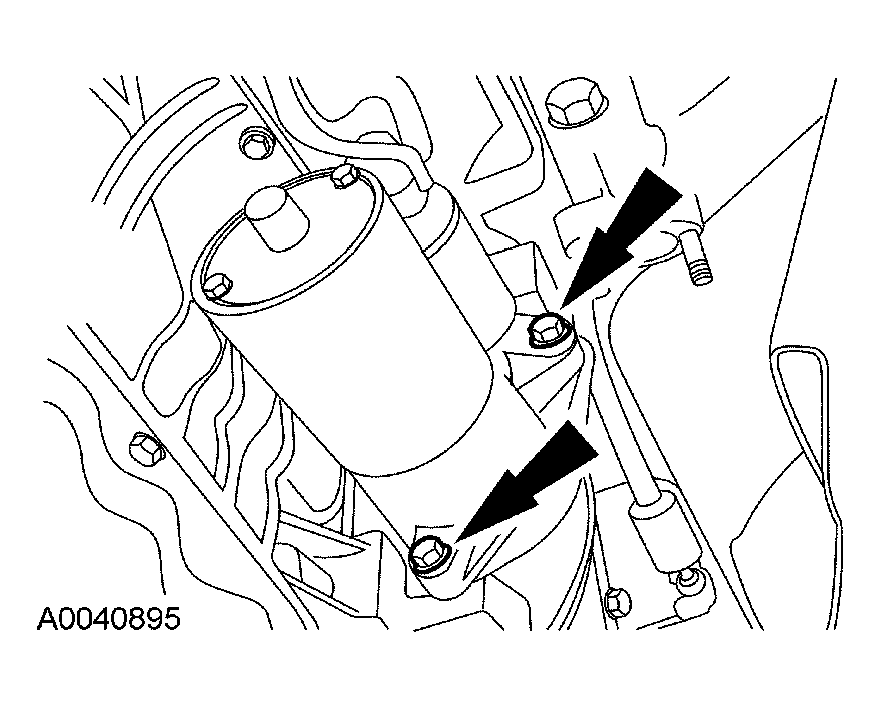

      Fig 11: Installing Starter Motor
      G03949226Courtesy of FORD MOTOR CO.
  14. Install the lower transmission retaining bolts.
    • Tighten to 48 Nm (35 lb-ft).
      Fig 12: Installing Lower Transmission Retaining Bolts
      G03949227Courtesy of FORD MOTOR CO.

    15. All vehicles

    CAUTION: Use care not to bend or force the cooler tubes otherwise damage to the cooler tubes and the transmission can result.
  15. Install the transmission fluid cooler tubes.
    • Tighten to 30 Nm (22 lb-ft).
      Fig 13: Locating Transmission Cooler Tubes
      G03947193Courtesy of FORD MOTOR CO.
  16. Connect the digital transmission range (TR) sensor connector.
    Fig 14: Locating Transmission Range (TR) Sensor Electrical Connector
    G03947189Courtesy of FORD MOTOR CO.
  17. Move the rubber boot back over the connector.

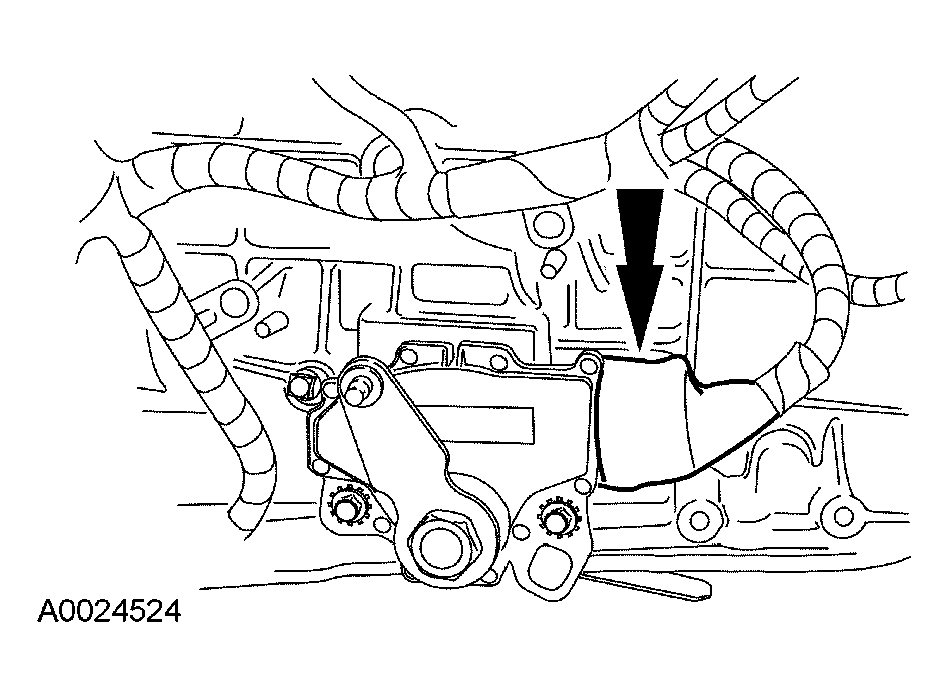

    Fig 15: Moving Rubber Boot Back Over Connector
    G03947188Courtesy of FORD MOTOR CO.
  18. Connect the LH heated oxygen sensor (HO2S) to the transmission and install the wire harness retainer.
    Fig 16: Identifying Wire Harness Retainers
    G03948290Courtesy of FORD MOTOR CO.
  19. Position the wire harness and install the retainers.

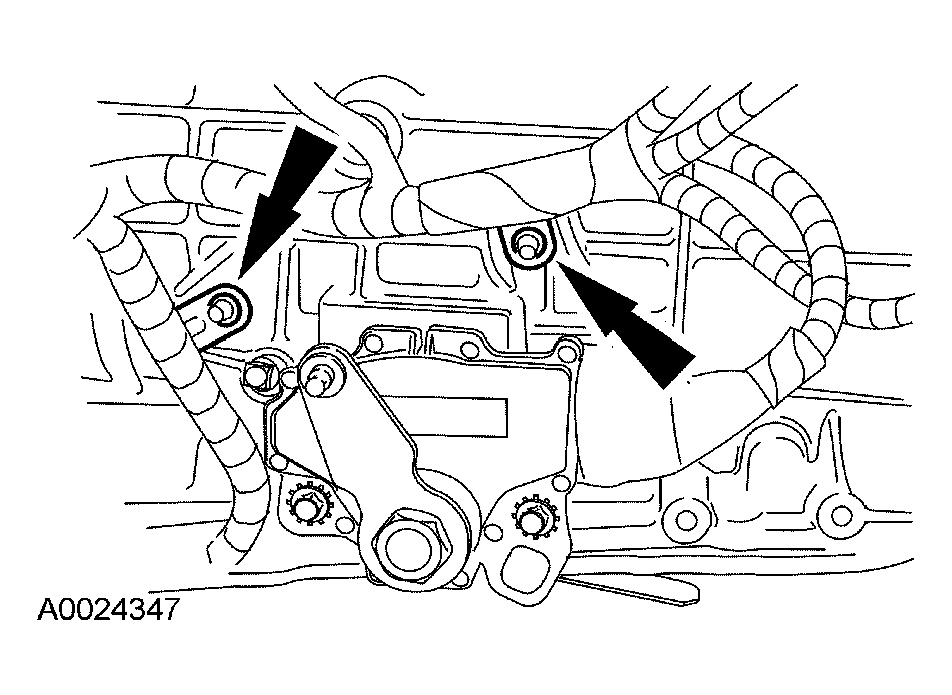

    Fig 17: Positioning Wire Harness
    G03949232Courtesy of FORD MOTOR CO.
    20. CAUTION: Damage will occur to the solenoid body assembly if the screw is tightened above the specification.
    NOTE: Always install new O-ring seals on the vehicle harness connector.
    NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.
    NOTE: Use petroleum jelly to lubricate the O-ring seals to aid in the installation process.
  20. Install and lubricate new O-ring seals on the transmission connector and connect the connector.
    • Tighten to 5 Nm (44 lb-in).

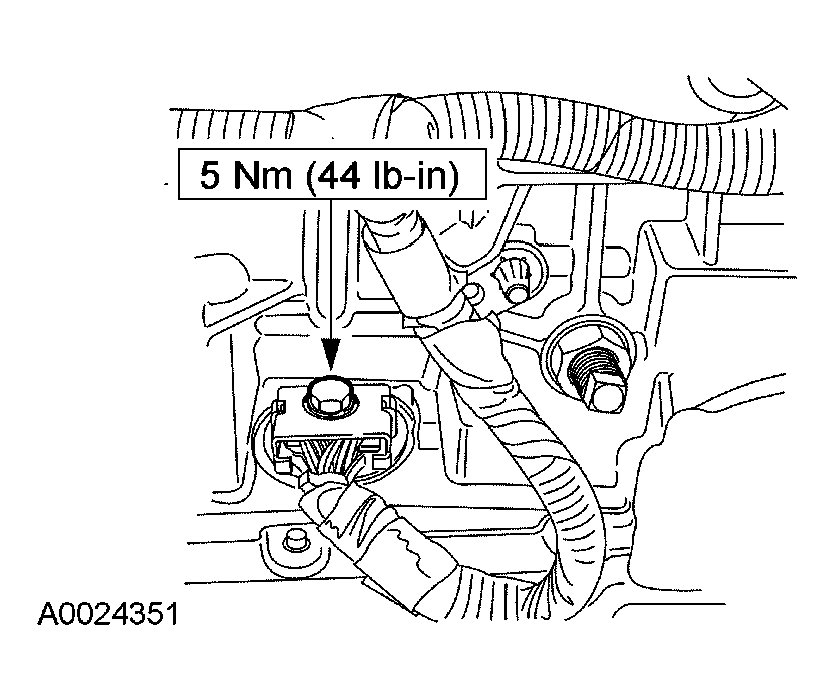

      Fig 18: Installing O-Ring Seals On Transmission Connector
      G03949233Courtesy of FORD MOTOR CO.
  21. Connect the LH catalyst monitor connector to the transmission.
    Fig 19: Identifying LH Catalyst Monitor Connector Retainer At Transmission
    G03947871Courtesy of FORD MOTOR CO.
  22. Connect the RH heated oxygen sensor (HO2S) to the transmission.

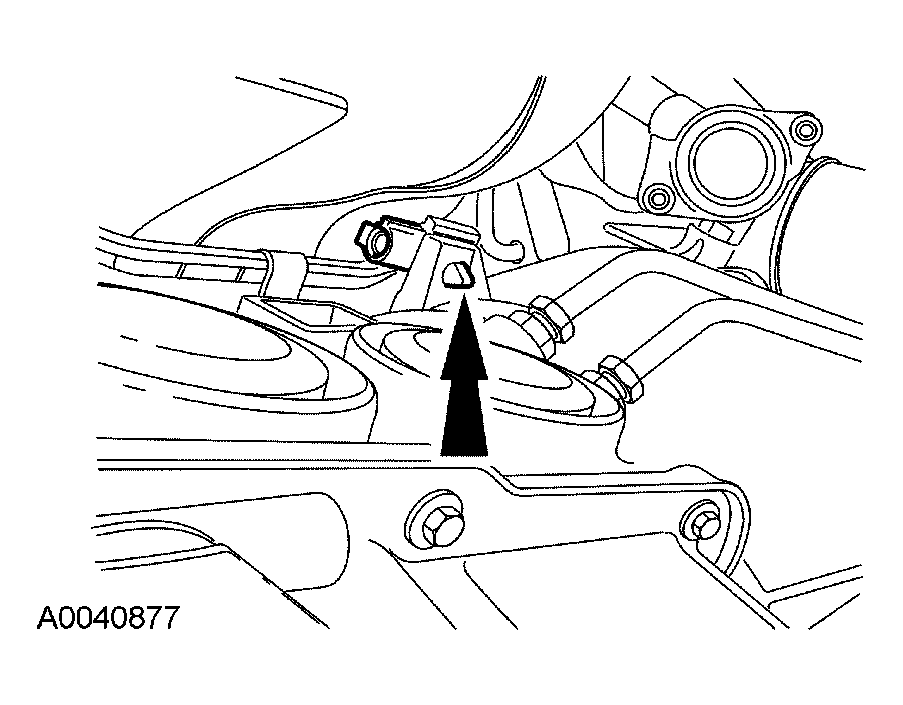

    Fig 20: Connecting RH Heated Oxygen Sensor To Transmission
    G03948785Courtesy of FORD MOTOR CO.
  23. Connect the fuel lines and the RH catalyst monitor connector to the bracket.
    Fig 21: Locating Fuel Lines And RH Catalyst Monitor Connector Bracket
    G03947872Courtesy of FORD MOTOR CO.
  24. Connect the turbine shaft speed (TSS) sensor, output shaft speed (OSS) sensor, and intermediate shaft speed (ISS) sensor electrical connectors.
    Fig 22: Locating Electrical Connectors
    G03947190Courtesy of FORD MOTOR CO.
    25. NOTE: This step may require an assistant. LH side shown, RH side similar.
    Fig 23: Locating Catalytic Converter-To-Manifold Nuts
    G03946966Courtesy of FORD MOTOR CO.
  25. Position the catalytic converter assembly with heat shield and loosely install the 4 converter-to-manifold nuts.
  26. Install the rear transmission mount bolts.
    1. Position the mount, exhaust hanger and bolt.
    2. Install the 2nd bolt and tighten.
      • Tighten to 90 Nm (66 lb-ft).

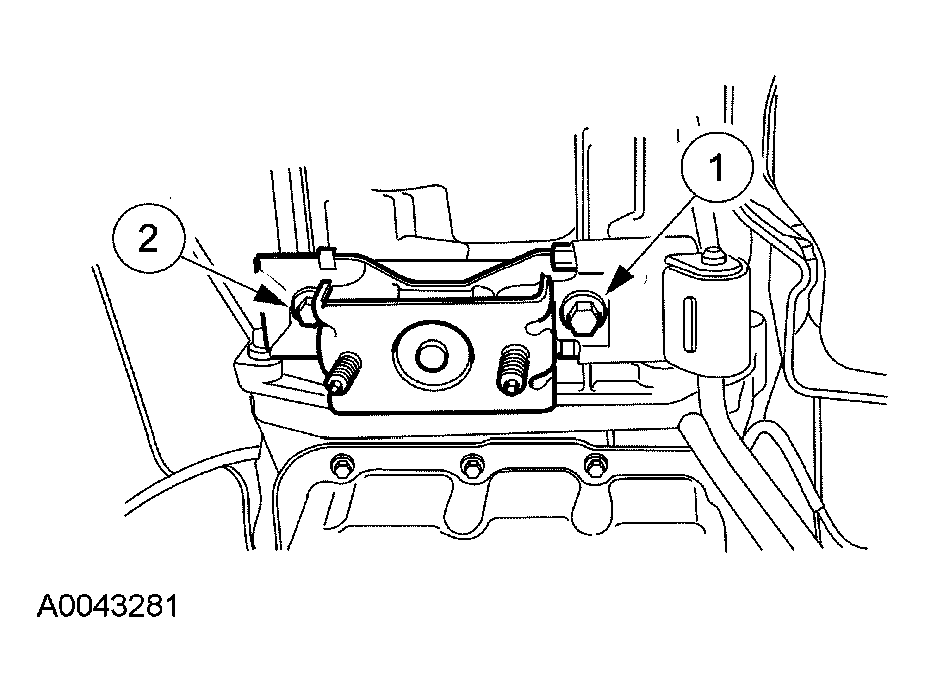

        Fig 24: Installing Rear Transmission Mount Bolts
        G03949239Courtesy of FORD MOTOR CO.
    27. NOTE: RH side shown, LH side similar.
    Fig 25: Locating Heated Oxygen Sensor Electrical Connector
    G03947157Courtesy of FORD MOTOR CO.
  27. Connect the 2 heated oxygen sensor electrical connectors.
    28. NOTE: RH side shown, LH side similar.
    Fig 26: Identifying Catalyst Monitor Sensor Electrical Connector
    G03947158Courtesy of FORD MOTOR CO.
  28. Connect the 2 catalyst monitor sensor electrical connectors.
  29. Position the crossmember in place and loosely install the 2 nuts to hold up the crossmember.
    Fig 27: Positioning Crossmember In Place
    G03949242Courtesy of FORD MOTOR CO.
    30. NOTE: Using a transmission jack, raise the crossmember into place.
  30. Install the RH side crossmember bolts.
    • Tighten to 70 Nm (52 lb-ft).
      Fig 28: Locating RH Side Crossmember Bolts
      G03947164Courtesy of FORD MOTOR CO.
  31. Install the LH side crossmember bolts.
    • Tighten to 70 Nm (52 lb-ft).
      Fig 29: Installing LH Side Crossmember Bolts
      G03948767Courtesy of FORD MOTOR CO.
  32. Remove the transmission jack.
    33. NOTE: RH side shown, LH side similar.
  33. Install the 2 upper crossmember bolts (2 on each side).
    • Tighten to 70 Nm (52 lb-ft).
      Fig 30: Installing Upper Crossmember Bolts
      G03947163Courtesy of FORD MOTOR CO.
  34. Tighten the rear transmission mount nuts.
    • Tighten to 90 Nm (66 lb-ft).
      Fig 31: Tightening Rear Transmission Mount Nuts
      G03949242Courtesy of FORD MOTOR CO.
  35. Install the cable bracket and 2 bolts.
    • Tighten to 40 Nm (30 lb-ft).

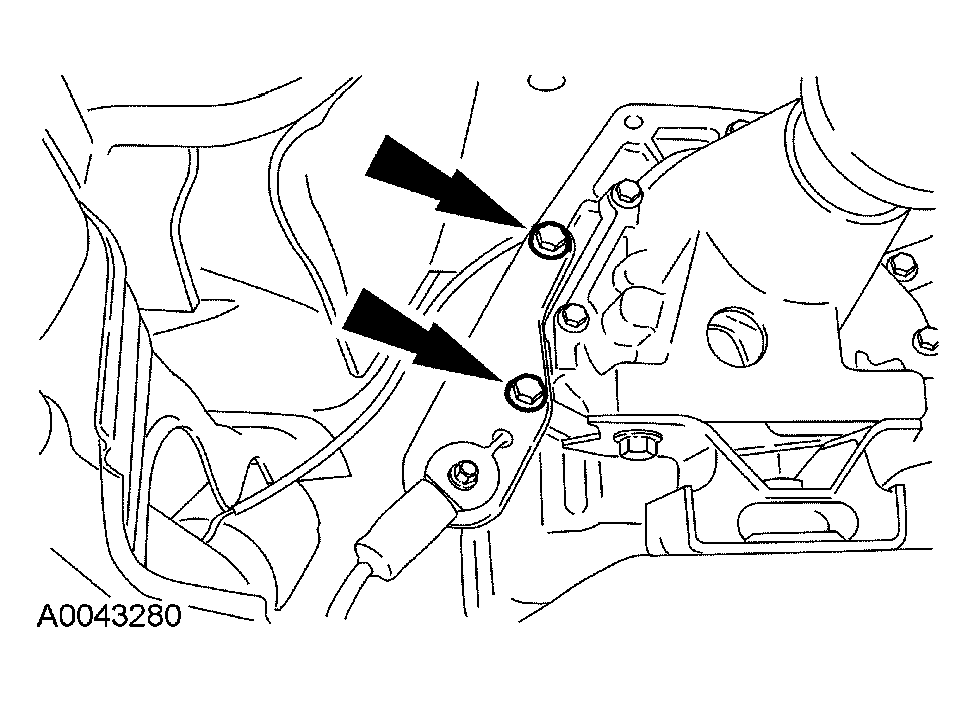

      Fig 32: Installing Cable Bracket
      G03947512Courtesy of FORD MOTOR CO.
  36. Install the heat shield bolts.
    • Tighten to 20 Nm (15 lb-ft).

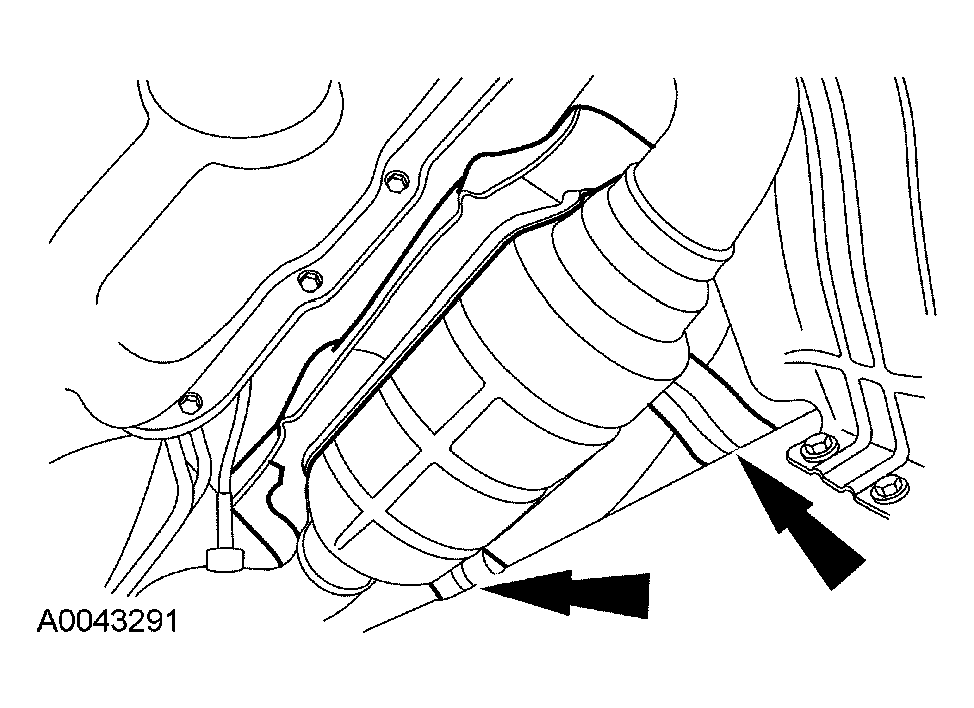

      Fig 33: Installing Heat Shield Bolts
      G03948756Courtesy of FORD MOTOR CO.
  37. Install the RH heat shield and 3 bolts.
    • Tighten to 20 Nm (15 lb-ft).

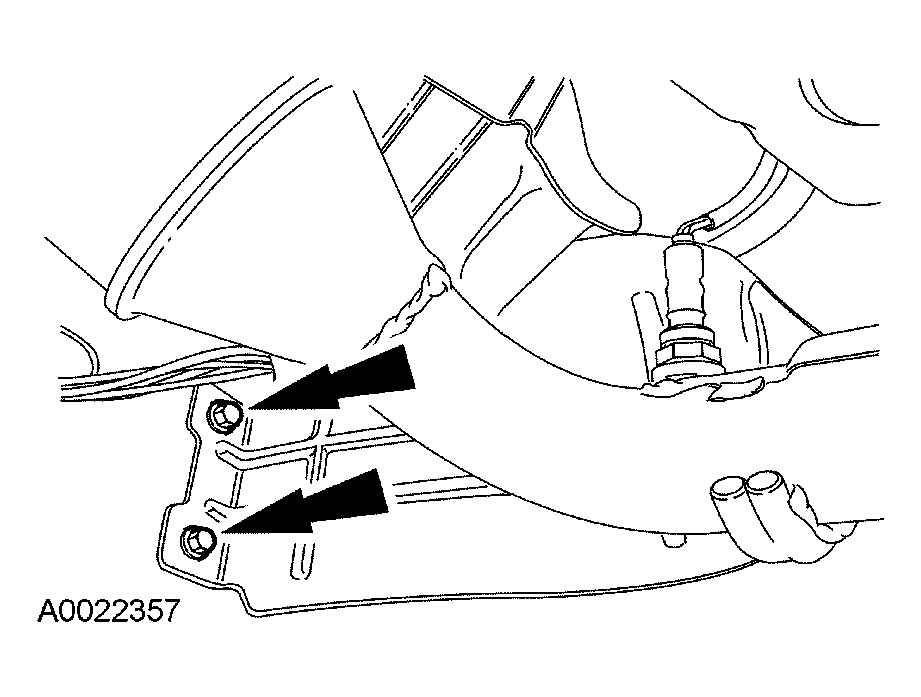

      Fig 34: Installing RH Heat Shield
      G03947159Courtesy of FORD MOTOR CO.
  38. Install the LH heat shield bolts.
    • Tighten to 20 Nm (15 lb-ft).
      Fig 35: Locating LH Heat Shield Bolt
      G03947161Courtesy of FORD MOTOR CO.
  39. Install the plastic shield on the right side of the crossmember near the fuel tank.
    • Tighten to 9 Nm (80 lb-in).
      Fig 36: Locating Plastic Shield On Right Side Of Crossmember Near Fuel Tank
      G03948762Courtesy of FORD MOTOR CO.
  40. Tighten the 4 converter-to-manifold nuts.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 37: Locating Catalytic Converter-To-Manifold Nuts
      G03946966Courtesy of FORD MOTOR CO.
  41. Using a new gasket install the converter-to-muffler pipe. Install the bolts, springs and flag nuts.
    • Tighten to 40 Nm (30 lb-ft).

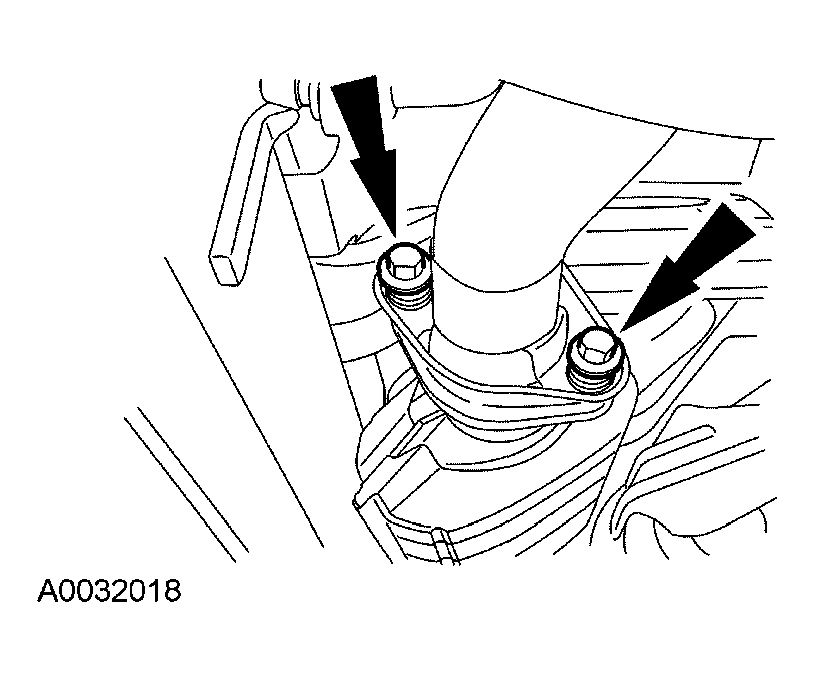

      Fig 38: Installing Converter-To-Muffler Pipe
      G03947851Courtesy of FORD MOTOR CO.
  42. Align the marks made during removal. Install the front portion of the driveshaft into the transmission.
    Fig 39: Identifying Index-Mark On Driveshaft And Transmission Extension Housing
    G03883301Courtesy of FORD MOTOR CO.
    43. CAUTION: If new bolts to retain the driveshaft to the axle are not available, coat the threads of the original bolts with Threadlock and Sealer TA-25 or equivalent meeting Ford specification WSK-M2G351-A5.
    CAUTION: The driveshaft flange fits tightly on the rear axle pinion flange pilot. To make sure that the driveshaft flange seats squarely on the pinion flange, tighten the bolts evenly in a cross pattern as shown in Fig 40.
  43. Align the marks made during removal. Install the rear driveshaft and bolts.
    1. Align the index marks.
    2. Install the driveshaft flange bolts.
      • Tighten to 112 Nm (83 lb-ft).

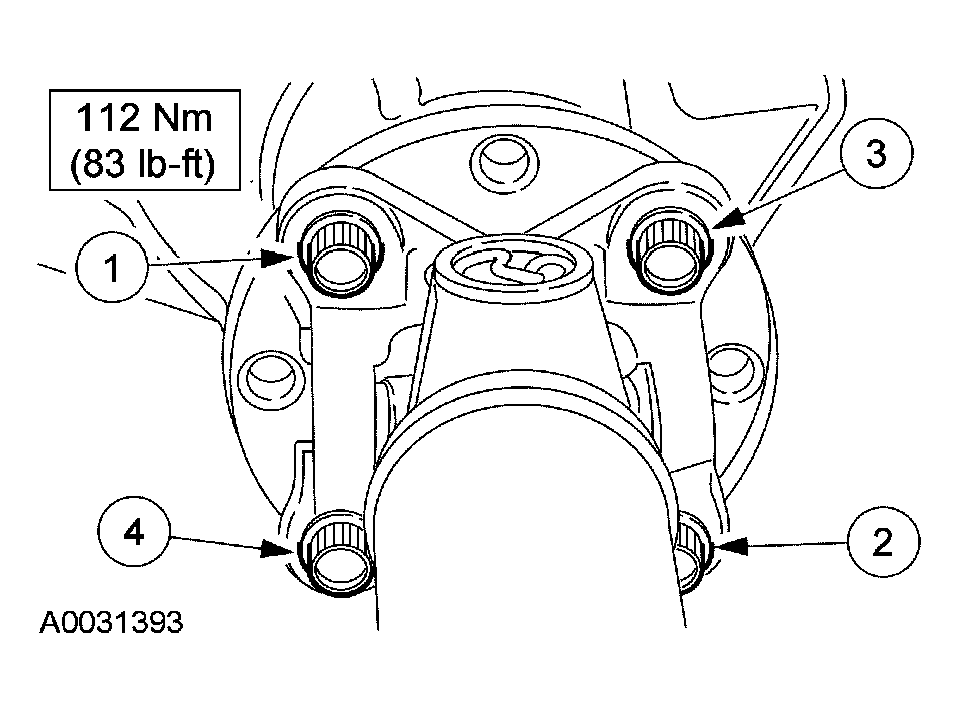

        Fig 40: Installing Driveshaft Flange
        G03878447Courtesy of FORD MOTOR CO.
  44. Install the shift cable and bracket.
    • Tighten to 40 Nm (30 lb-ft).

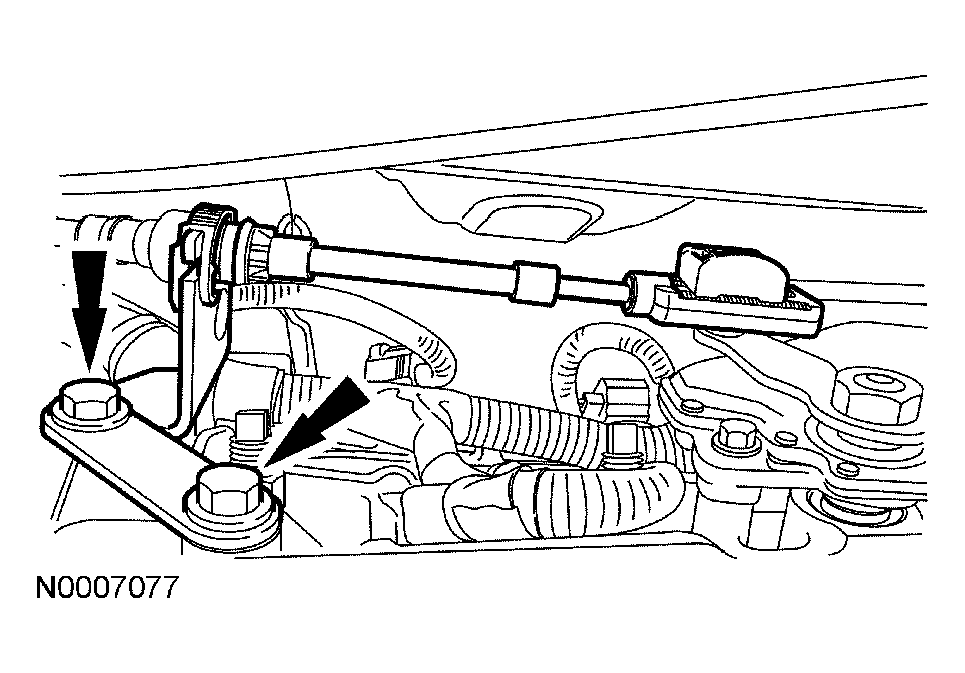

      Fig 41: Installing Shift Cable And Bracket
      G03949256Courtesy of FORD MOTOR CO.
  45. Use the following guidelines for installing the in-line transmission fluid filter:
    • If the transmission was overhauled and the vehicle was equipped with an in-line fluid filter, install a new in-line fluid filter.
    • If the transmission was overhauled and the vehicle was not equipped with an in-line fluid filter, install a new in-line fluid filter kit.
    • If the transmission is being installed for a non-internal repair, do not install an in-line filter or filter kit.
    • If installing a new or a Ford-authorized remanufactured transmission, install the in-line transmission fluid filter that is supplied.
      • Prior to lowering the vehicle, install a new in-line transmission filter or a filter kit. For additional information, refer to TRANSMISSION FLUID IN-LINE FILTER .
    46. NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they can experience slightly different upshifts (either soft or firm) and that this is a temporary condition and will eventually return to normal operating condition.
  46. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  47. Position the fan shroud and install the bolts.
  48. Carry out the fluid level check. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
  49. Verify that the shift cable is correctly adjusted. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  50. Check the operation of the transmission and inspect for leaks.
