Transmission Support Insulator - 4x4: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Support the transmission with a transmission jack.
  3. Remove the 2 nuts from the rear transmission support.
    Fig 1: Removing Nuts From Rear Transmission Support
    G03948310Courtesy of FORD MOTOR CO.
  4. Remove the 2 bolts and remove the rear transmission support.

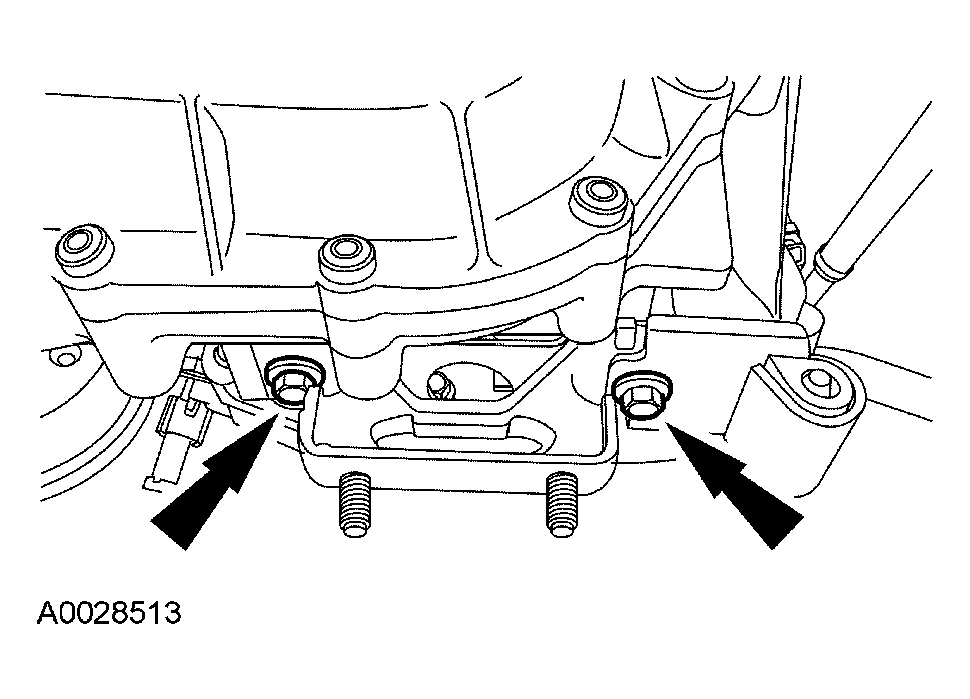

    Fig 2: Removing Rear Transmission Support
    G03948714Courtesy of FORD MOTOR CO.
