Transmission Support Insulator - 4x2: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
  2. Support the transmission with a transmission jack.
  3. Remove the transmission support insulator nuts.
    Fig 1: Identifying Transmission Support Insulator Nuts
    G03947166Courtesy of FORD MOTOR CO.
  4. Remove the 2 transmission support insulator bolts.
    Fig 2: Removing Transmission Support Insulator
    G03948671Courtesy of FORD MOTOR CO.
  5. Raise the transmission and remove the transmission support insulator.

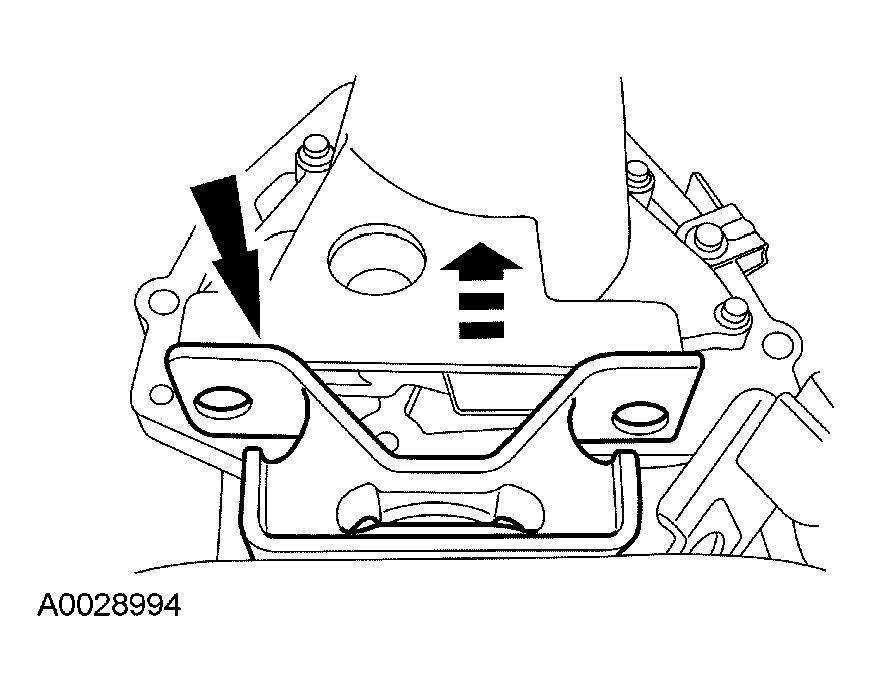

    Fig 3: Raising Transmission And Remove Transmission
    G03948672Courtesy of FORD MOTOR CO.
