Extension Housing Seal - 4x4: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the transfer case assembly. For additional information, refer to TRANSFER CASE - ELECTRONIC SHIFT .
  3. Using the special tools, remove the extension housing seal.

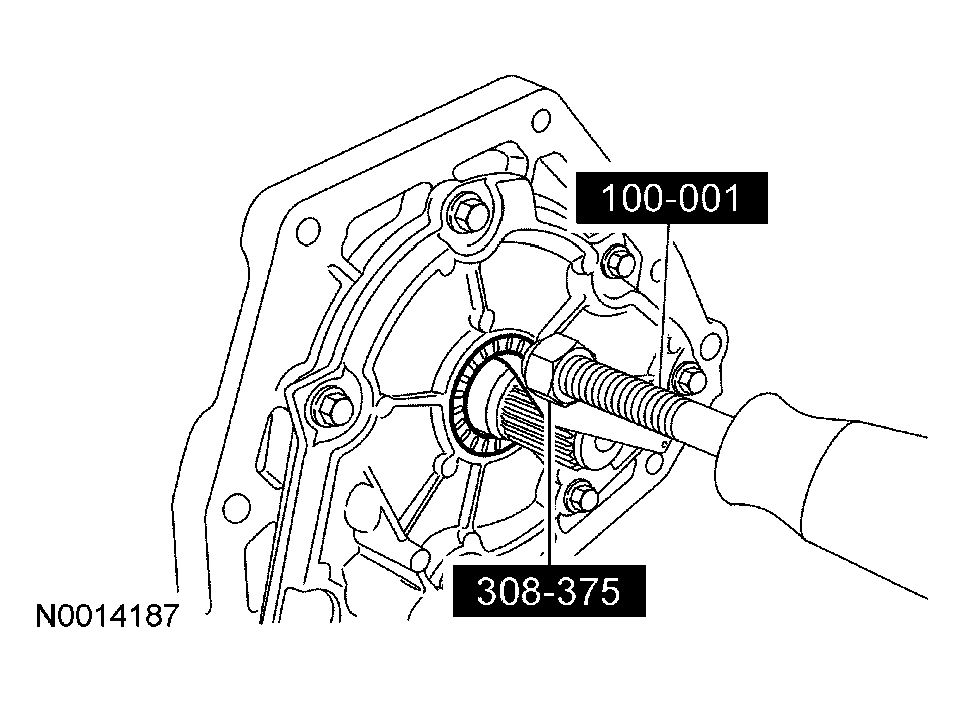

    Fig 1: Removing Extension Housing Seal
    G03948668Courtesy of FORD MOTOR CO.
