Extension Housing Seal - 4x4: Installation
WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

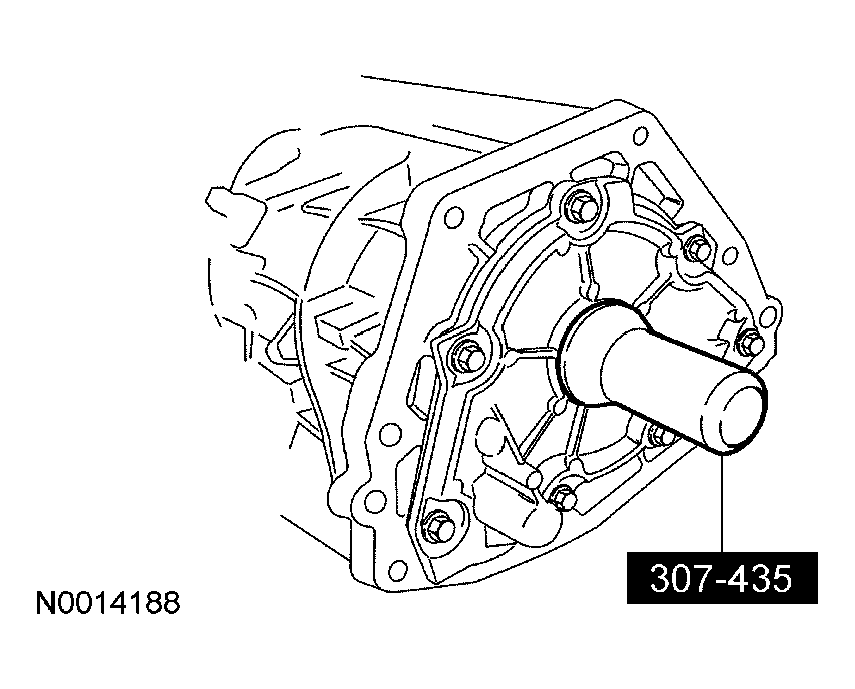

- Using the special tool, install the extension housing seal.
- Install the transfer case assembly. For additional information, refer to TRANSFER CASE - ELECTRONIC SHIFT .
- Lower the vehicle.
- Carry out fluid level check. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
NOTE:
Make sure the extension housing seal is correctly installed onto the special tool and the garter spring is in the correct position.
